Digital Colorimeter, Portable QC Color Analyzer

Key features

• Color Difference Contrast: LS170 digital colorimeter delivers rapid QC detection via mobile app integration enabling real time color difference contrast analysis using CIE L*a*b* and ΔE00 formulas for textile and paint applications
• Color Matching Accuracy: LS170 achieves over 90 percent matching accuracy with built in electronic color cards supporting 1200+ standard shades ideal for automotive refinish and plastic manufacturing workflows
• Stable Value Measurement: Dual compensation light paths plus 3.7 V rechargeable lithium battery support 10000 consecutive readings ensuring consistent calibration during extended production line shifts
• QC Detection Function: User configurable color difference thresholds with selectable spaces including CIELAB CMC and DIN99 allow precise evaluation across batch inspection and supplier audits
• Color Sharing Capability: One tap export import of spectral data via WeChat QQ or email compatible with iOS and Android devices streamlining cross team collaboration on global R&D projects

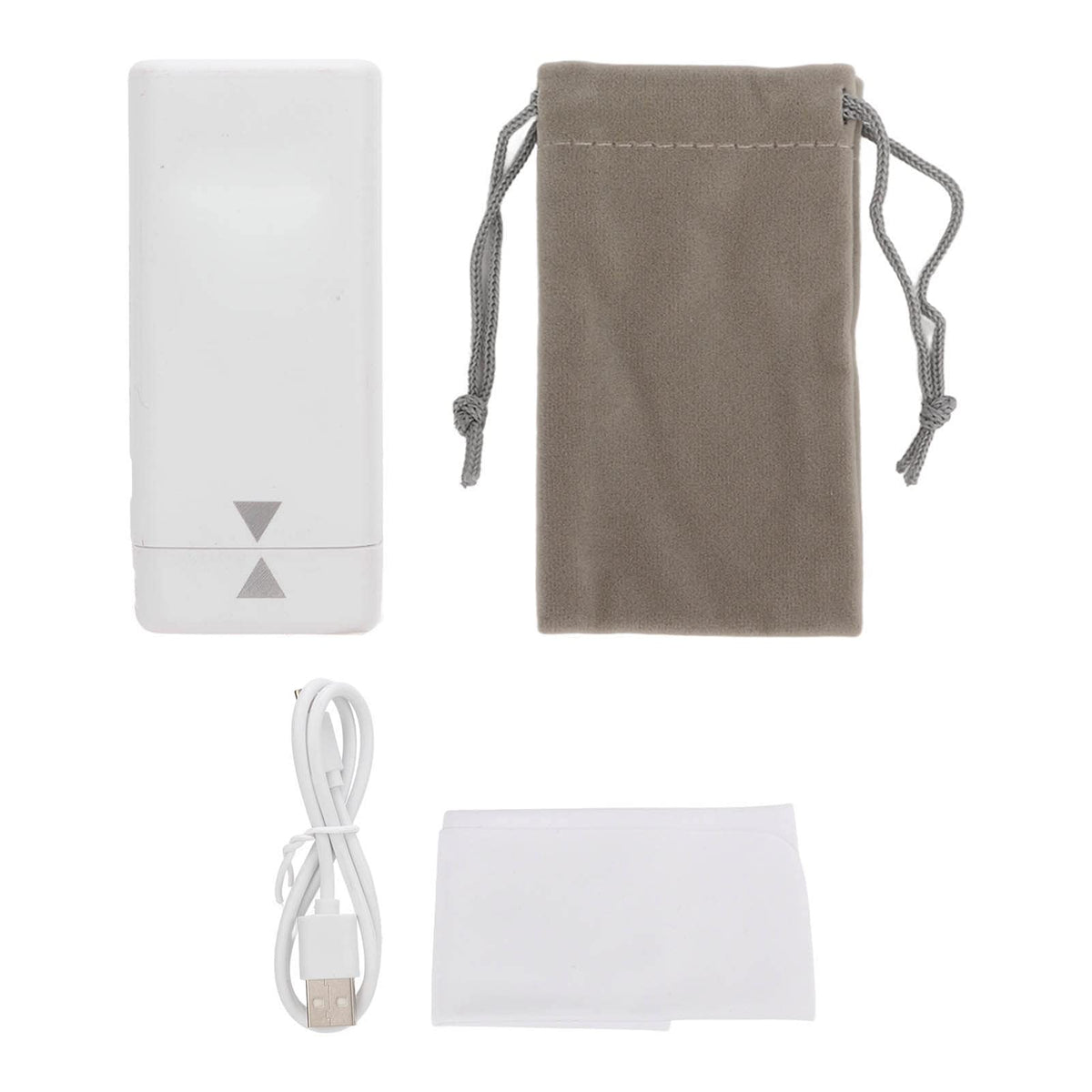

Spec: Item Type: Colorimeter Model: LS170 Material: ABS Battery: 1 x rechargeable lithium battery 3.7V 700mAh, a single full can continuously measure 10,000 times (Battery Included) Application: Chroma sampling, color difference detection and comparison Illumination Mode: 45/0 (45° circular illumination, 0° reception) Lighting Source: Full spectrum LED light source Measuring Caliber: Approx. 8mm / 0.3in Measurement Conditions: Light source D65, field of view 10° Measuring Time: About 1s Color Space: CIE Lab, Luv. LCh, Yxy. CMYK, RGB, Hex Color Difference Formulas: △E x ab, △E x 94, △E x cmc (2:1), △E x cmc (1:1) △E x 00 Repeatability: Standard deviation △E x ab, within 0.03 (measurement condition: after warm up correction, the average value of 30 measurements on the whiteboard at an interval of 3s) Size: Approx. 31.7 x 31.7 x 70.4 mm / 1.2 x 1.2 x 2.8 in Charging Interface: Type C Data : APP, Operating Temperature Range: 0~45℃, 0~85%RH (non condensing) Storage Temperature Range: -25℃~55℃ 0~85%RH (no condensation) Color Card Matching Accuracy rate: >90% Color Threshold: Can be set Compensation Optical Paths: Built in QC Inspection: √ Data Sharing: √ Package List: 1 x Colorimeter (
