DTGN Spur Gear 1.5Mod 19 Teeth 12mm Thickness 10mm Bore

Key features

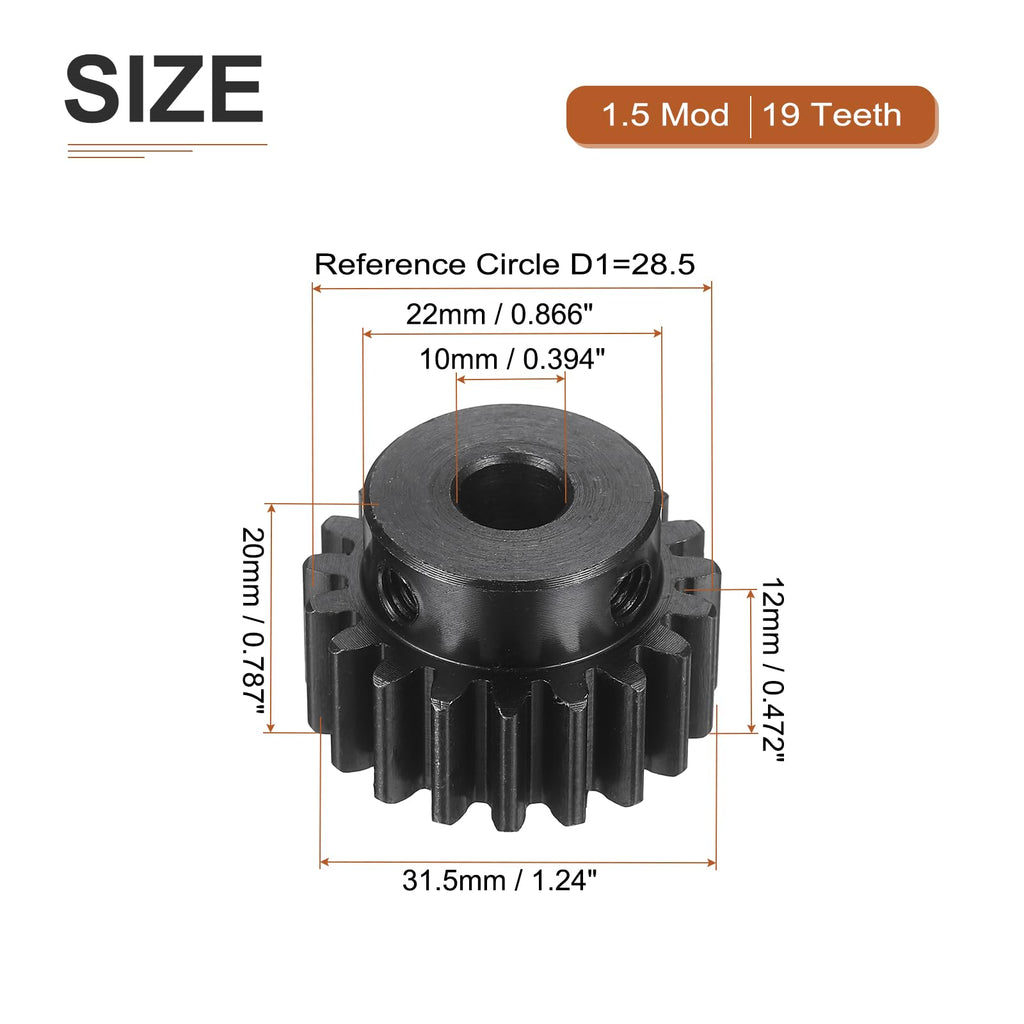

• Product Details: Color: Black; Material: 1045 Steel; Module: 1.5 (Mod 1.5); Teeth: 19 T; Bore Diameter: 10 mm / 0.394 inch; Step Outer Diameter: 22 mm / 0.866 inch; Tooth Thickness: 12 mm / 0.472 inch; Total Size: 31.5 x 20 mm / 1.24 x 0.787 inch; Package Content: 1 x Spur Gear with 2 Screws

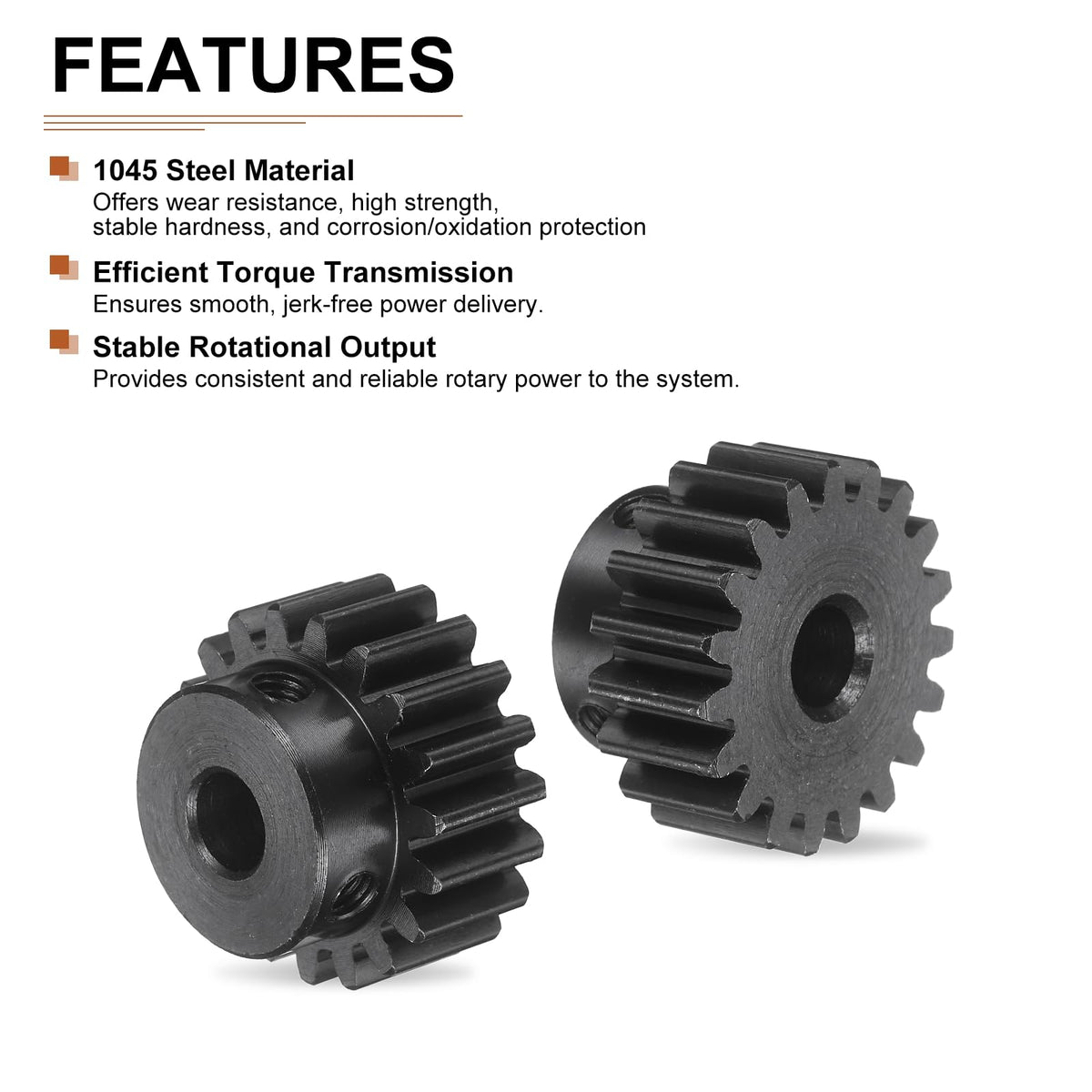

• Material - Made of 1045 steel, the pinion gear delivers reliable wear resistance, high strength, and stable hardness after heat treatment, while the black-oxide surface finish helps resist rust and oxidation under normal workshop use, keeping performance steady and the service life long
• Feature - Spur Gear efficiently transmits torque between parallel shafts, providing stable rotational power to other components of the motor system, ensuring smooth power transmission and allowing your RC car to perform well
• Application - Application - Gears are suitable for applications requiring a balance between transferring torque and controlling changes in speed and direction of rotation with precision, and can be widely used in remote control cars, RC models, robotics projects, 3D printers, small motor shafts, and DIY mechanical builds
• Install Steps/ Notice - Confirm the bore type before installation. The round bore version slides directly onto a matching shaft and is fixed with a setscrew. Apply a small amount of light oil on the shaft for smoother assembly. Do not overload the gear beyond its rated torque

Product Details: Color: Black Material: 1045 Steel Module: 1.5 (Mod 1.5) Teeth: 19 T Bore Diameter: 10 mm / 0.394 inch Step Outer Diameter: 22 mm / 0.866 inch Tooth Thickness: 12 mm / 0.472 inch Total Size: 31.5 x 20 mm / 1.24 x 0.787 inch Package Content: 1 x Spur Gear with 2 Screws Material - Made of 1045 steel, the pinion gear delivers reliable wear resistance, high strength, and stable hardness after heat treatment, while the black-oxide surface finish helps resist rust and oxidation under normal workshop use, keeping performance steady and the service life long. Feature - Spur Gear efficiently transmits torque between parallel shafts, providing stable rotational power to other components of the motor system, ensuring smooth power transmission and allowing your RC car to perform well. Application - Application - Gears are suitable for applications requiring a balance between transferring torque and controlling changes in speed and direction of rotation with precision, and can be widely used in remote control cars, RC models, robotics projects, 3D printers, small motor shafts, and DIY mechanical builds. Install Steps/ Notice - Confirm the bore type before installation. The r
