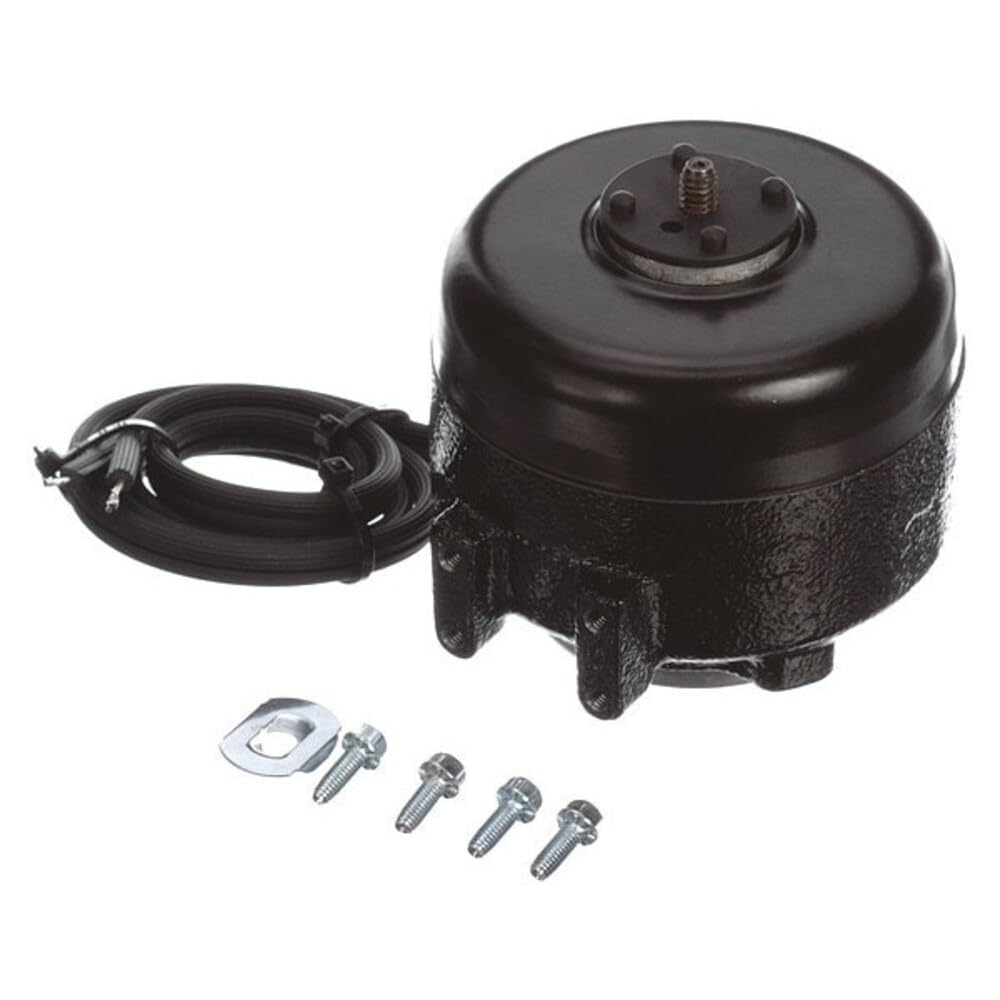

Fasco Unit Bearing Motor UB595-1 Each

Key features

• Refrigeration Motor
• Unit Bearing
• Shaded Pole
• Impedance Protected
• Totally Enclosed Air Over
• Class B Insulation, 40°C Ambient
• Bearing - Unit
• 1/4 x 20 Threaded Shaft

Refrigeration Motor Unit Bearing Shaded Pole Impedance Protected Totally Enclosed Air Over Class B Insulation, 40°C Ambient Bearing - Unit 1/4 x 20 Threaded Shaft 28" Leads with .05" Strip 2 Mounting Feet, 3 Rear Mounting Holes General Specifications Nameplate Specifications Technical Specifications General Specifications UPC: 786674070173 Weight: 2.30 LB Packaged Length: 10.25 IN Packaged Width: 10 IN Packaged Height: 10.25 IN Country of Origin: China Nameplate Specifications Output Watts: 6 W Frequency: 60 Hz Voltage: 115 V Current: 0.36 A Speed: 1550 rpm Service Factor: 1 Phase: 1 Duty: Continuous Insulation Class: B Frame: UNIT BEARING Enclosure: Totally Enclosed Air Over Thermal Protection: Impedance Ambient Temperature: 40 °C UL: Recognized CSA: Y CE: N Number of Speeds: 1 Technical Specifications Electrical Type: Shaded Pole Starting Method: Across The Line Poles: 4 Rotation: Counterclockwise Opposite Shaft End Mounting: 2 BOSS/OSE 3 HOLES Drive End Bearing: Unit Opp Drive End Bearing: Unit Frame Material: Cast Iron Shaft Type: Threaded Frame Length: 3.12 in Shaft Diameter: 1/4x20 in Shaft Extension: .415 in Mounting Brackets (3) Shaft -Extensions / -Adapters (1) Unit Bearin
