Fowler 52-008-706-0, Premium Dial Caliper With 0-6" Measuring Range (White)

Key features

• ACCURATE MEASUREMENTS: This dial caliper has an accuracy of ±0.001" and is the perfect caliper measuring tool for machining or household/DIY measurements

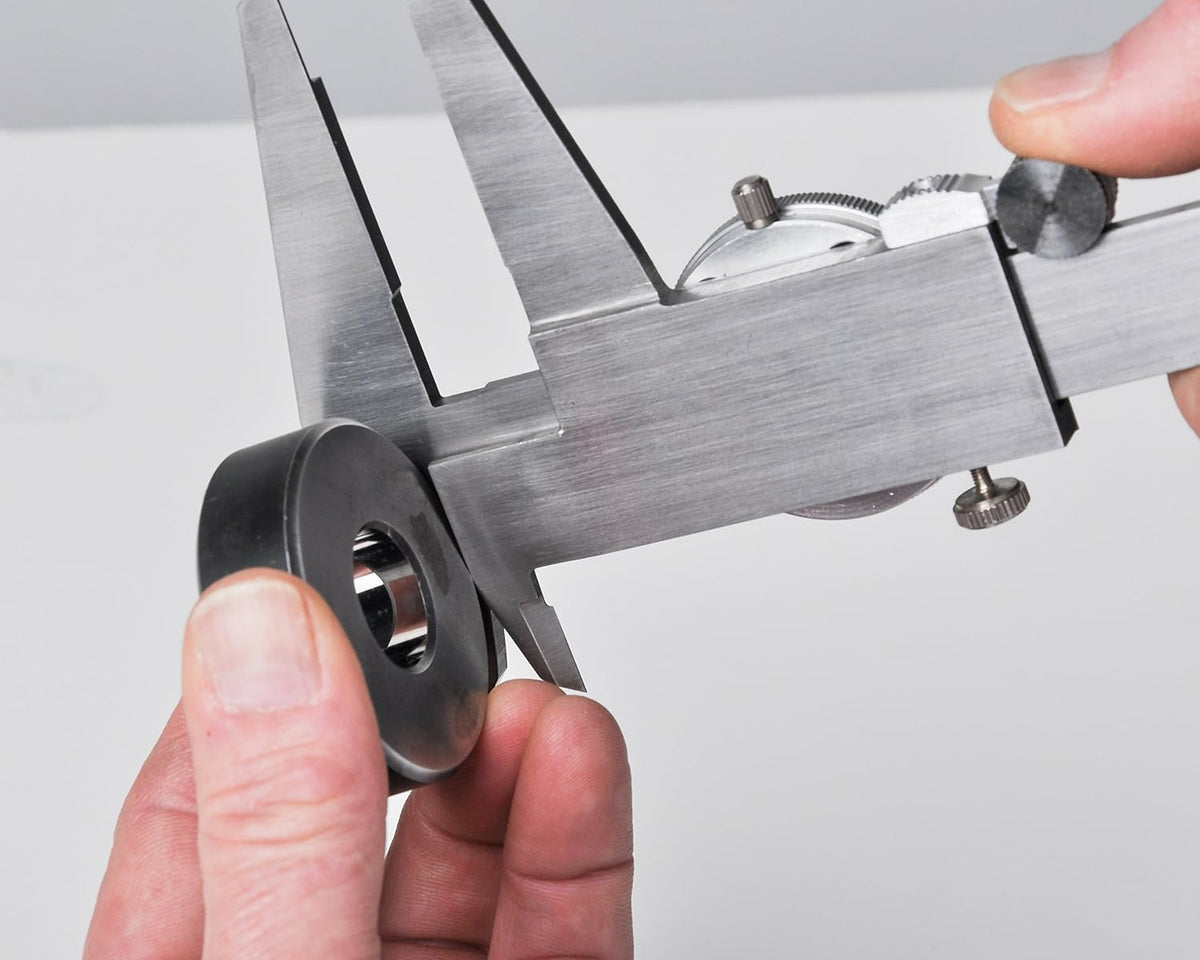

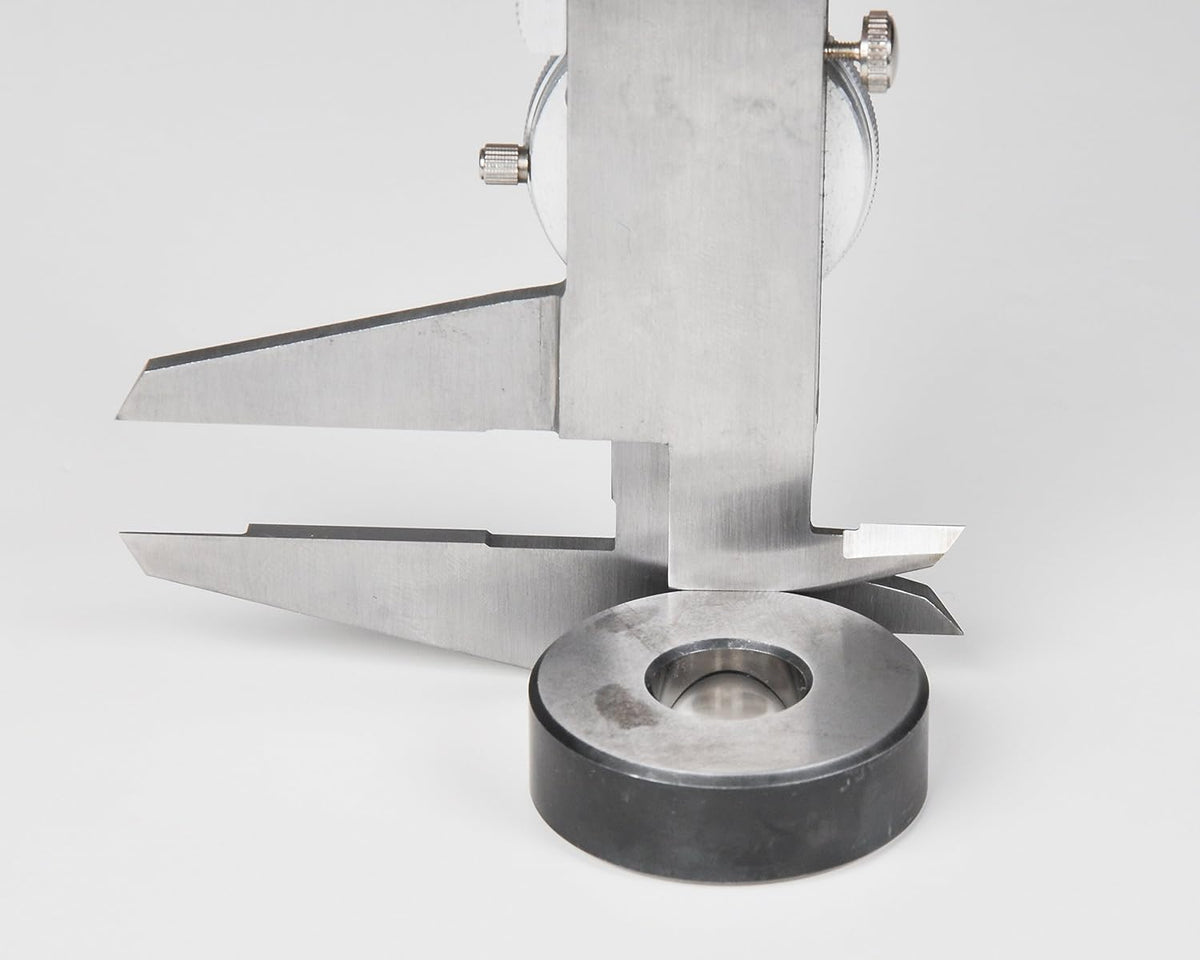

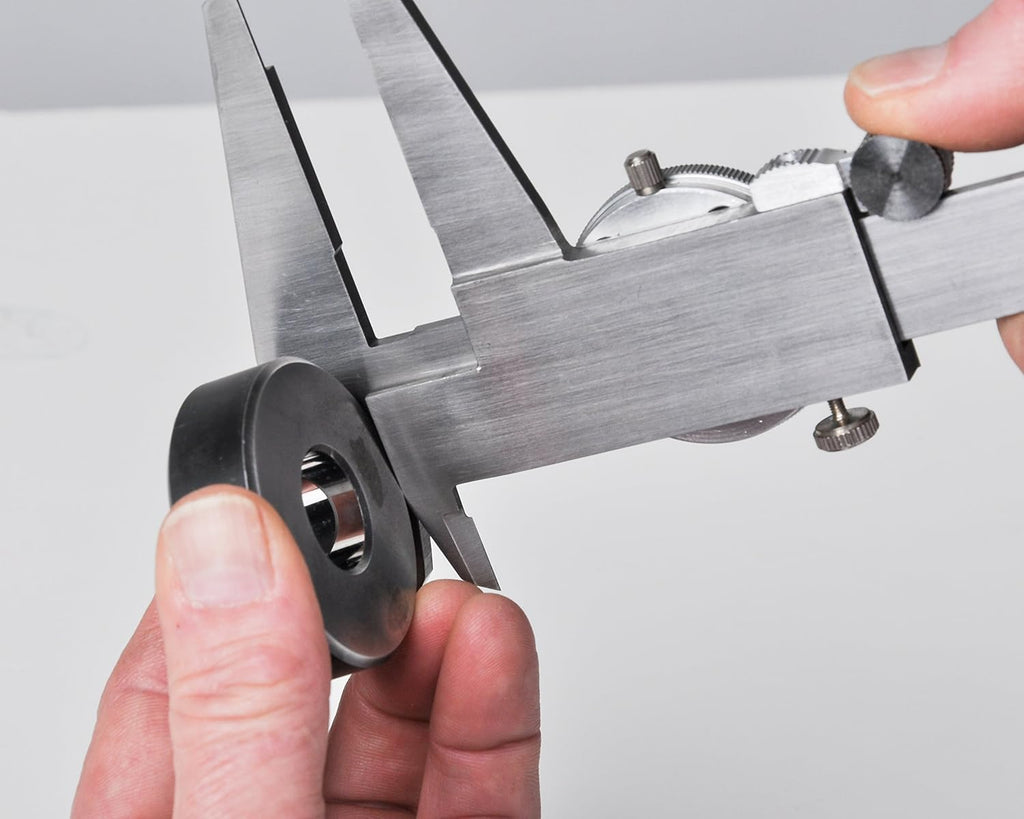

• 4 MEASURING CAPABILITIES: This dial caliper can be used to measure inside and outside dimensions, depths, and steps and includes 2 sets of jaws and a depth rod
• KNURLED LOCK: Features a knurled lock screw that holds the sliding jaw in position when required; a covered rack helps prevent dirt and debris from entering it and a thumb-operated fine adjustment roller allows for one-handed use

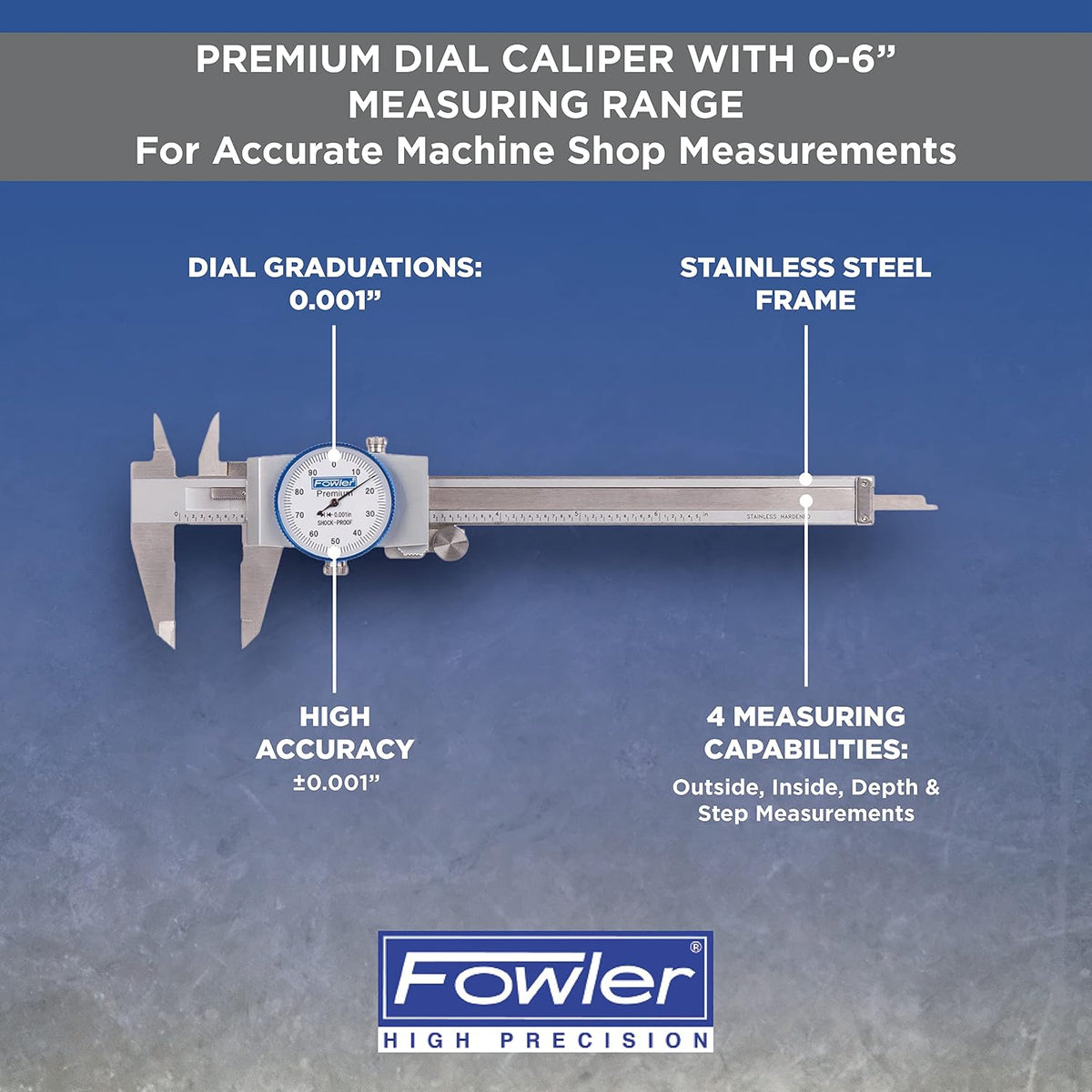

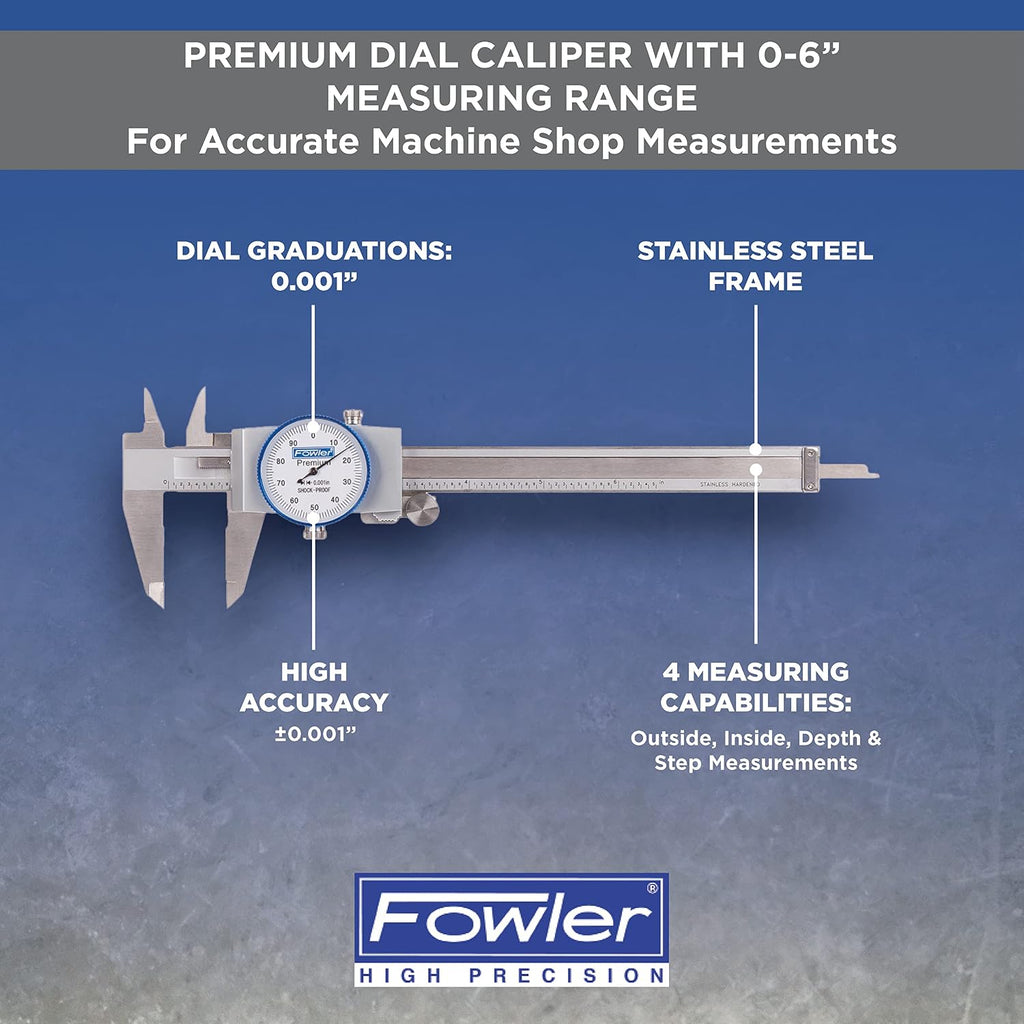

• DIAL GRADUATIONS: The dial hand completes one revolution every 0.1" and features a white dial with 0.001" graduations; the beam has engraved 0.10" graduations with a large, easy-to-read dial

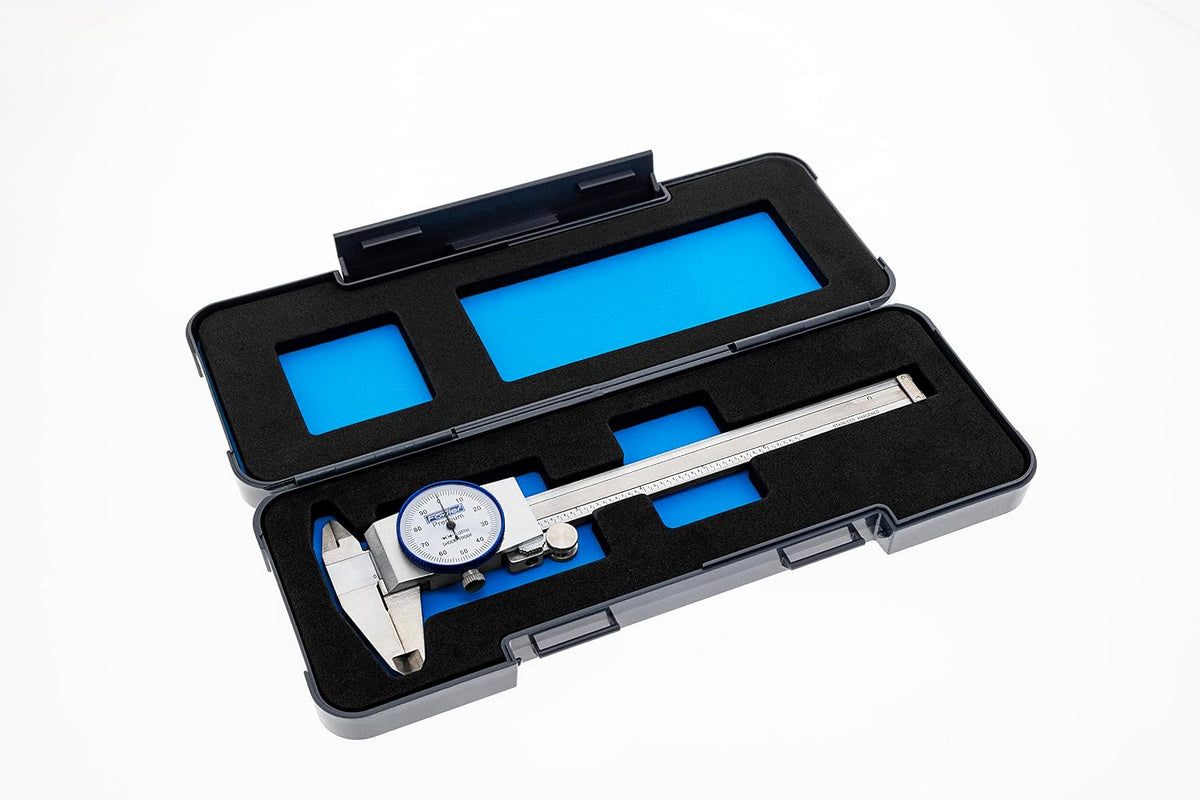

• SET INCLUDES: [1] Premium Dial Caliper, instruction manual, and storage case

The Fowler High Precision 6" Premium Stainless Steel Dial Caliper has a covered rack that helps prevent dirt and debris from entering the gearing and could produce measurement errors. This caliper is used for measuring inside dimensions (ID), outside dimensions (OD), depths, and steps. The hardened stainless steel components, including the beam, measuring surfaces, rack, gears, and depth rod, offer improved corrosion resistance, increased accuracy, and increased product life. Self-contained movement eliminates gear misalignment, while the dual pinion drive mechanism reduces wear on the rack and pinion. An adjustable dial enables zero setting. Spring loaded, shockproof gearing offers increased accuracy over standard gear configurations. Backlash is the amount of clearance between mated gear teeth in the caliper controls that prevents the gear teeth from jamming. The base measurement is taken from the long beam, which provides the initial whole measurement in inches or centimeters, and added to the dial reading, which provides fractional measurements in inches or millimeters. A locking mechanism provides the ability to take differential measurements for determining the difference in
