Fowler 52-225-116-0, Vernier Depth Micrometer with 0-6" Measuring Range

Key features

• Depth Gage: Features satin chrome finish, ratchet thimble, and locking clamp
• Precision Measurements: Features a 0-6" measuring range, 0.001" graduations, accuracy of 0.00016", and 4" base size
• Rod Extensions: Six rods with a diameter of 0.176" are used for various ranges
• Durable Material: Features a base that is grounded, hardened, and lapped to ensure long wear and continuing accuracy

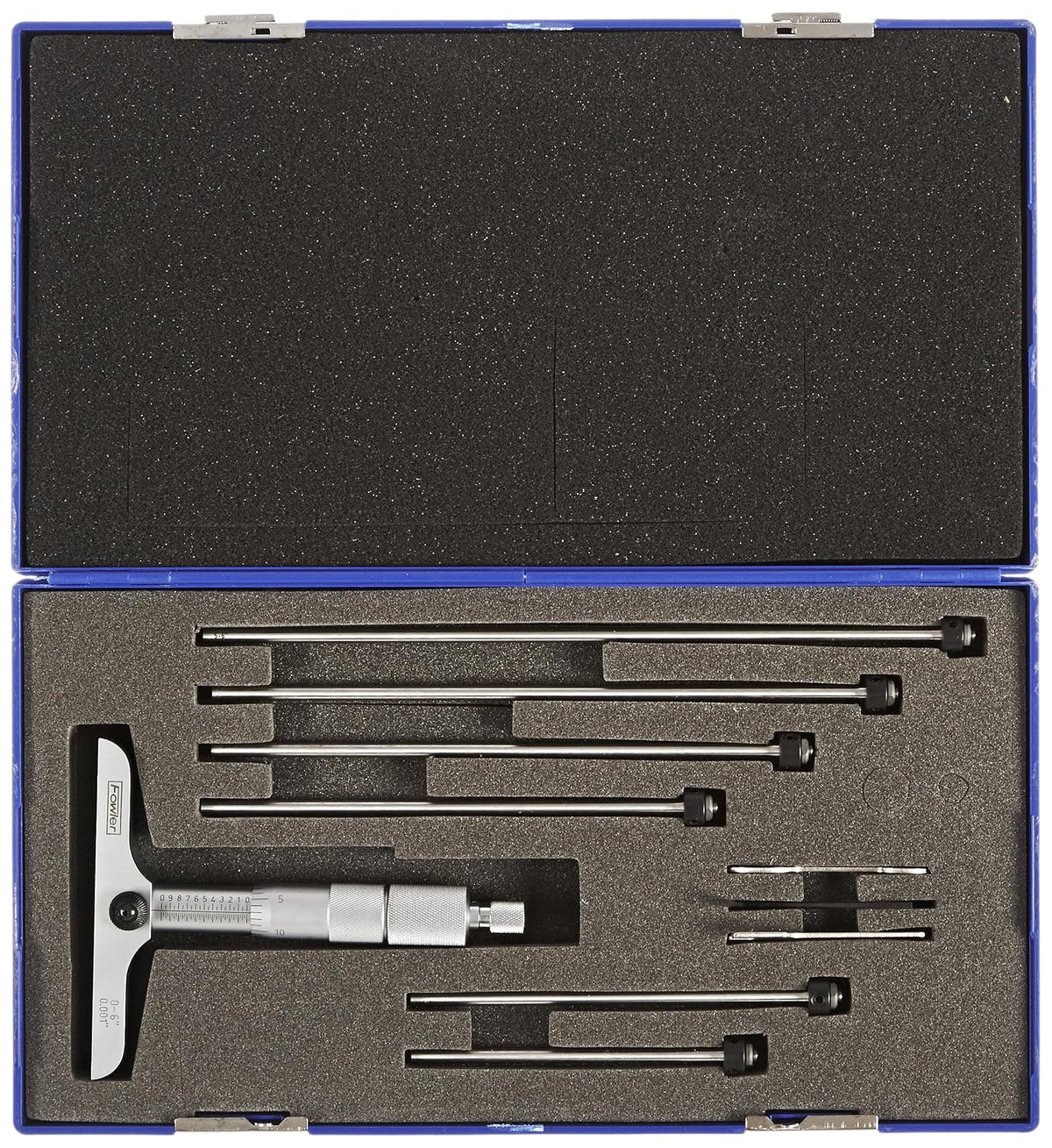

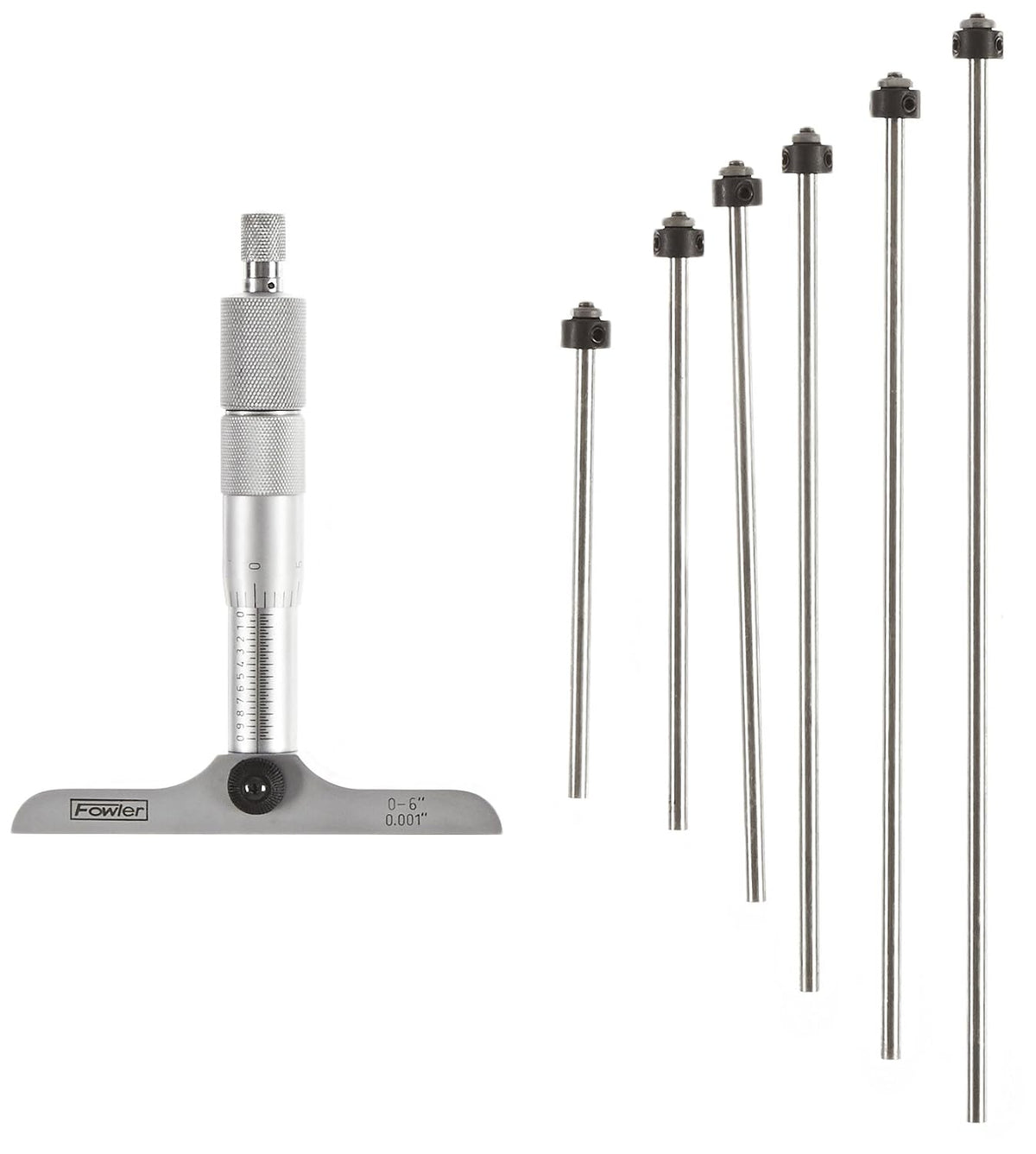

• Set Includes: A depth micrometer, six measuring rods, two wrenches, and a hardened case for storage

The Fowler Economy Depth Micrometer has a measurement range of 0-6" and 0.00016" accuracy. This depth micrometer is suitable for precise measurements in various manufacturing, machining, and mechanical engineering applications. Depth gages are precision measuring instruments used to determine the depth of any shape that has a step, groove, or slot. These gages often take the form of sliders that travel on a measuring beam or rods, are moved to the position by hand, and then adjusted with a calibrated screw. The gage base rests at the top of the shape whose recession is to be measured, while the beam or rods extend to the bottom of the recession to determine the measurement. Gage position is read from a graduated scale, dial, counters, or an electronic display. Fowler, an American company, manufactures premium inspection and measurement instruments like electronic indicators, calipers, bore gages, and , micrometers. The company, founded in 1946, is headquartered in Canton, MA.
