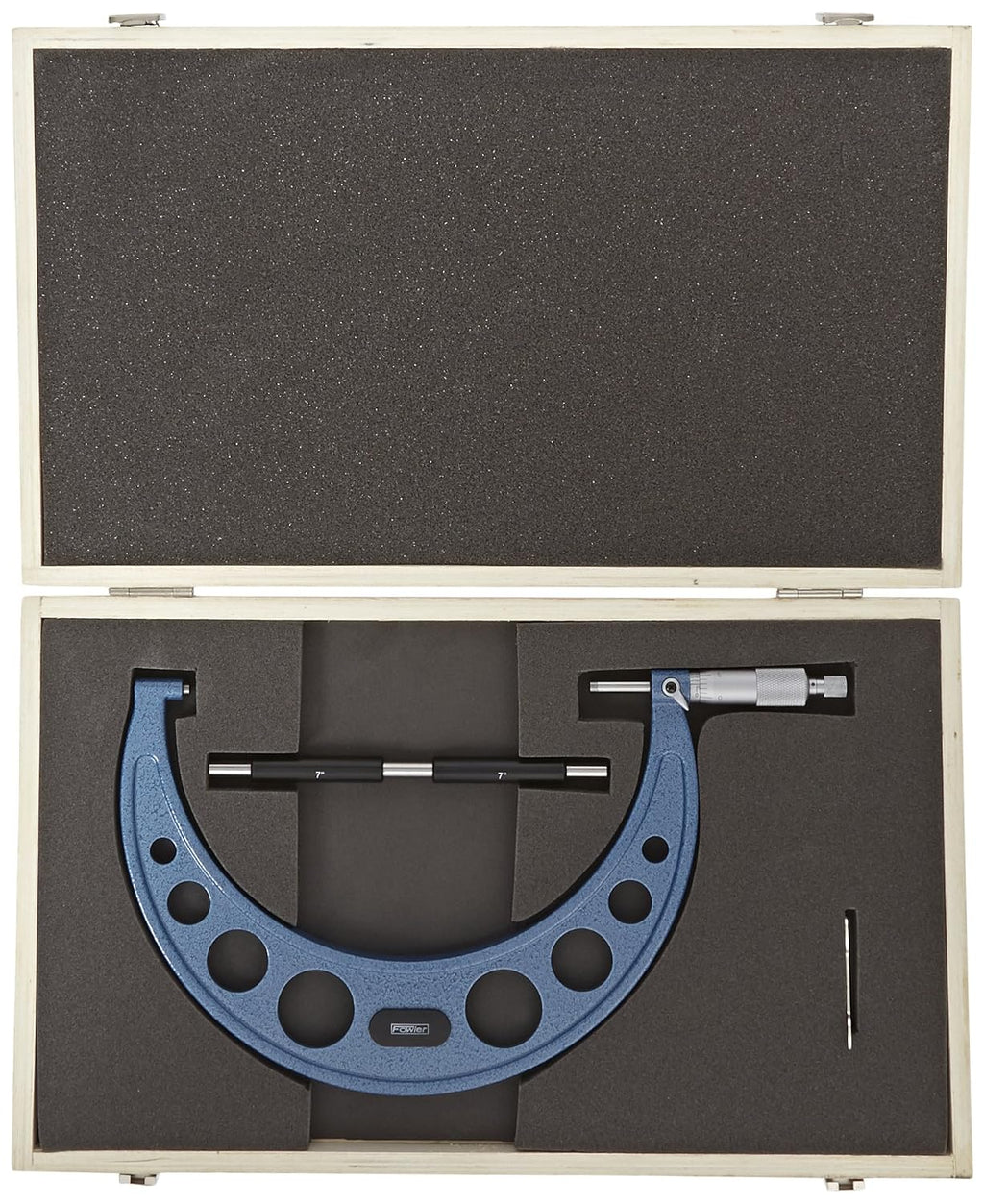

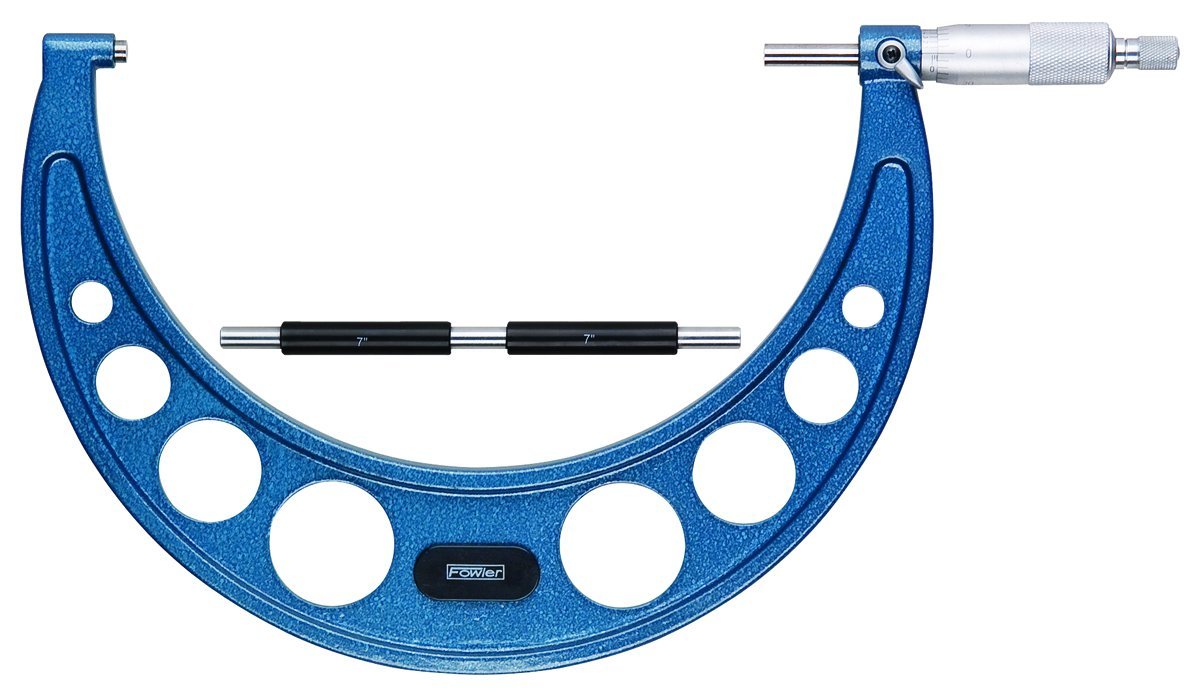

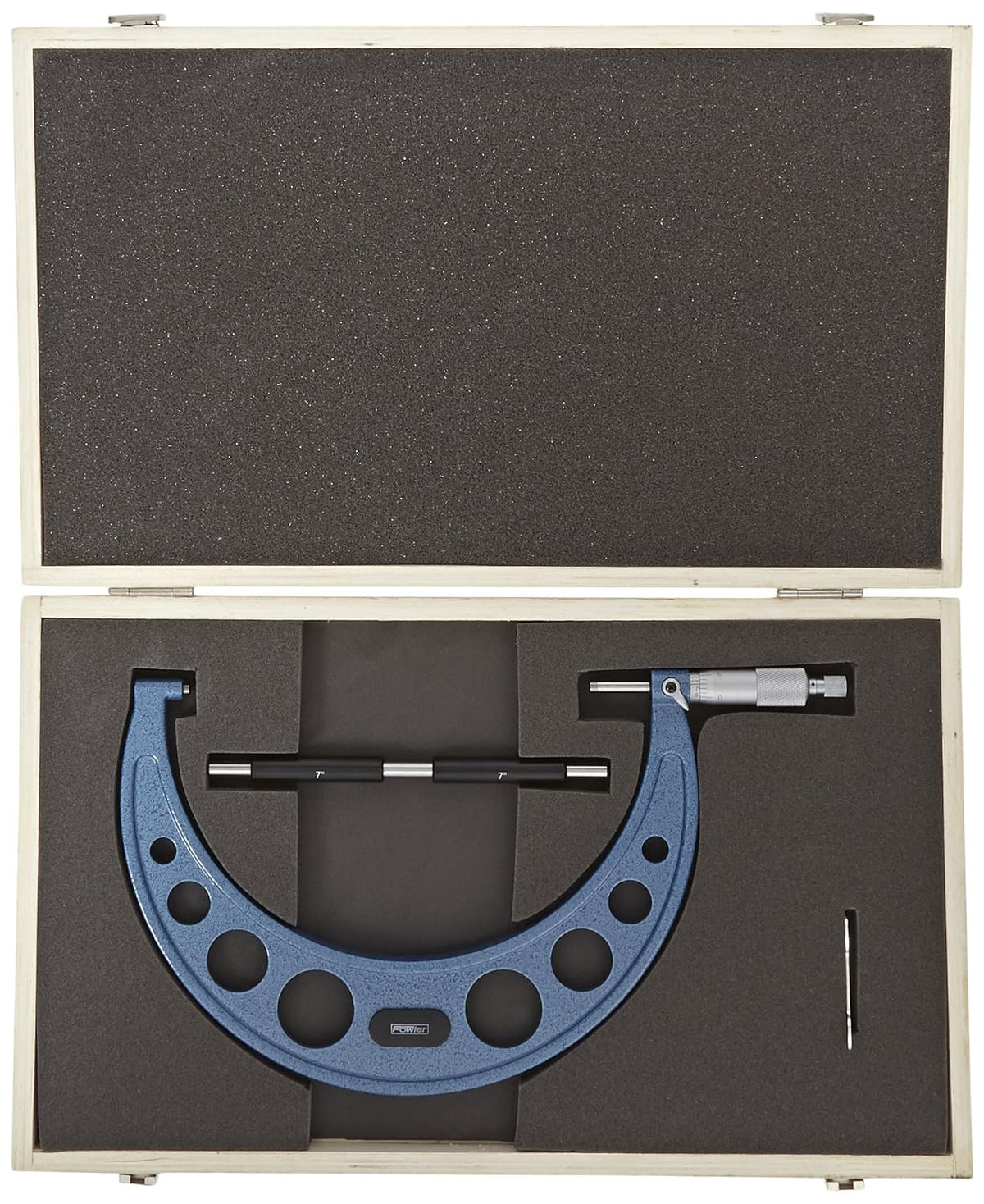

Fowler 52-240-008-1, Outside Inch Micrometer with 7-8" Measuring Range

Key features

• Outside micrometer with choice of measuring range and flat anvil/spindle pair for general purpose measuring
• Vernier scale has microfine 0.0001" graduations and accuracy of 0.0001" for precise readings
• Hardened, precision-ground, and carbide-tipped anvil and spindle have 0.256" measuring faces with micro-lapped finish, 0.00003" flatness and 0.00005" parallelism for accurate measurements
• Friction or ratchet-stop thimble provide exact and repetitive readings
• Satin chrome finish on thimble and sleeve helps resist rust and reduce glare; 1 year full warranty offered by Fowler High Precision, an American company

Range: 0-1" | Resolution: 0.0001" | Part Number: 52-240-001-1Fowler 52-240 series Vernier-scale micrometers have a choice of measuring range and a 0.256" diameter flat anvil/spindle pair for general purpose measuring. The Vernier scale has 0.0001" graduation intervals and 0.0001" accuracy for precise and accurate readings. The anvil/spindle pair have hardened, precision-ground, and micro-lapped measuring faces with 0.00003" flatness. The positive locking lever on the spindle locks measurements in place for accurate readings and the zero adjustment on the sleeve ensures accurate measurements. Friction thimble with ratchet stop applies constant force for repeatability between users. Friction-style thimbles are suitable for one-handed operation and stop turning when the spindle comes into contact with the workpiece, providing constant force for consistent measurements between operators. The ratchet-stop thimble can be used independently of the friction thimble. It provides an audible sound and stops the spindle from turning when the spindle comes into contact with the workpiece, providing constant force for consistent measurements between operators. A satin chrome finish on the thimbl

Free shipping included. 30-day hassle-free returns.
