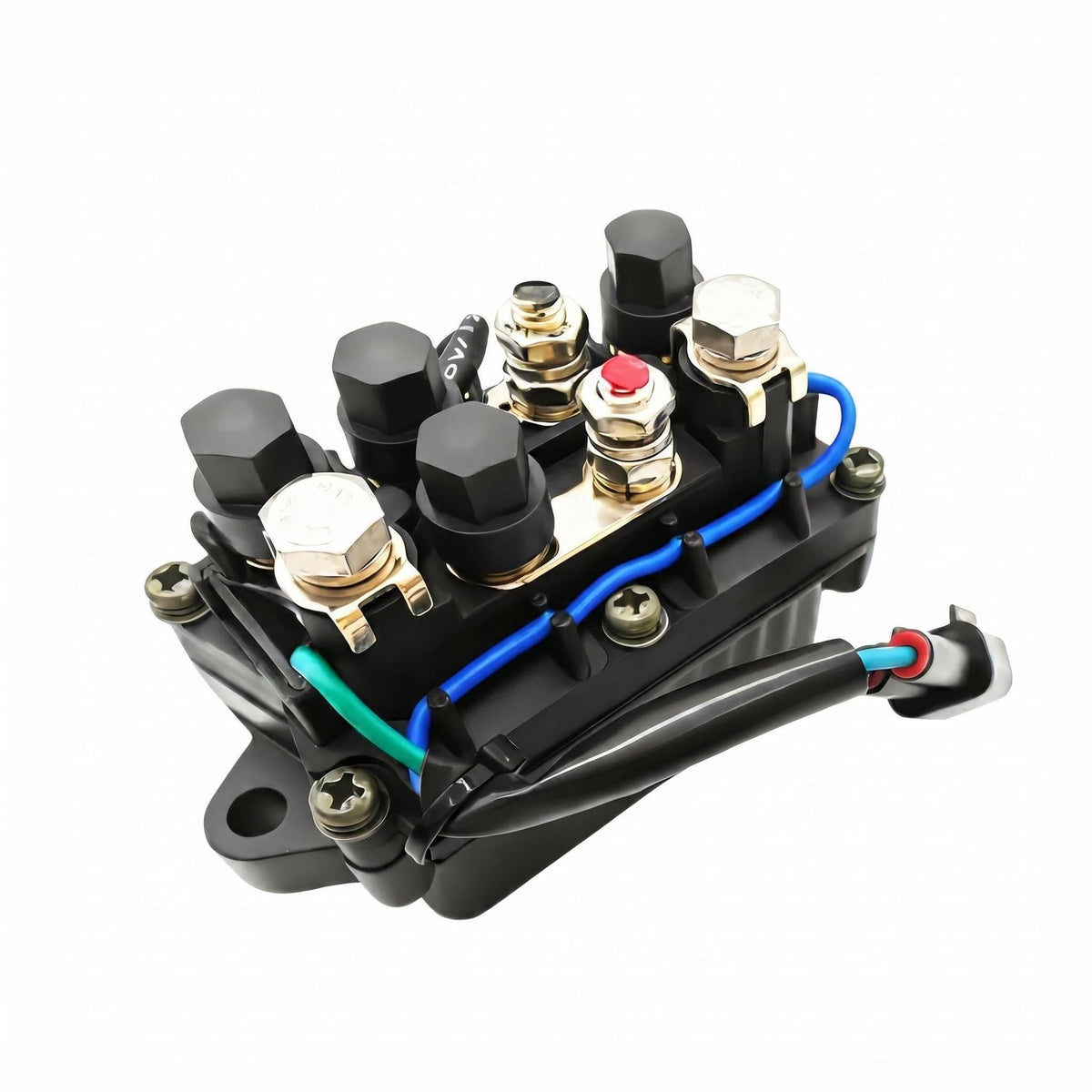

FREPURDO Tilt Trim Relay 63P-81950-00-00 12V for Yamaha 40-250HP 4-Stroke

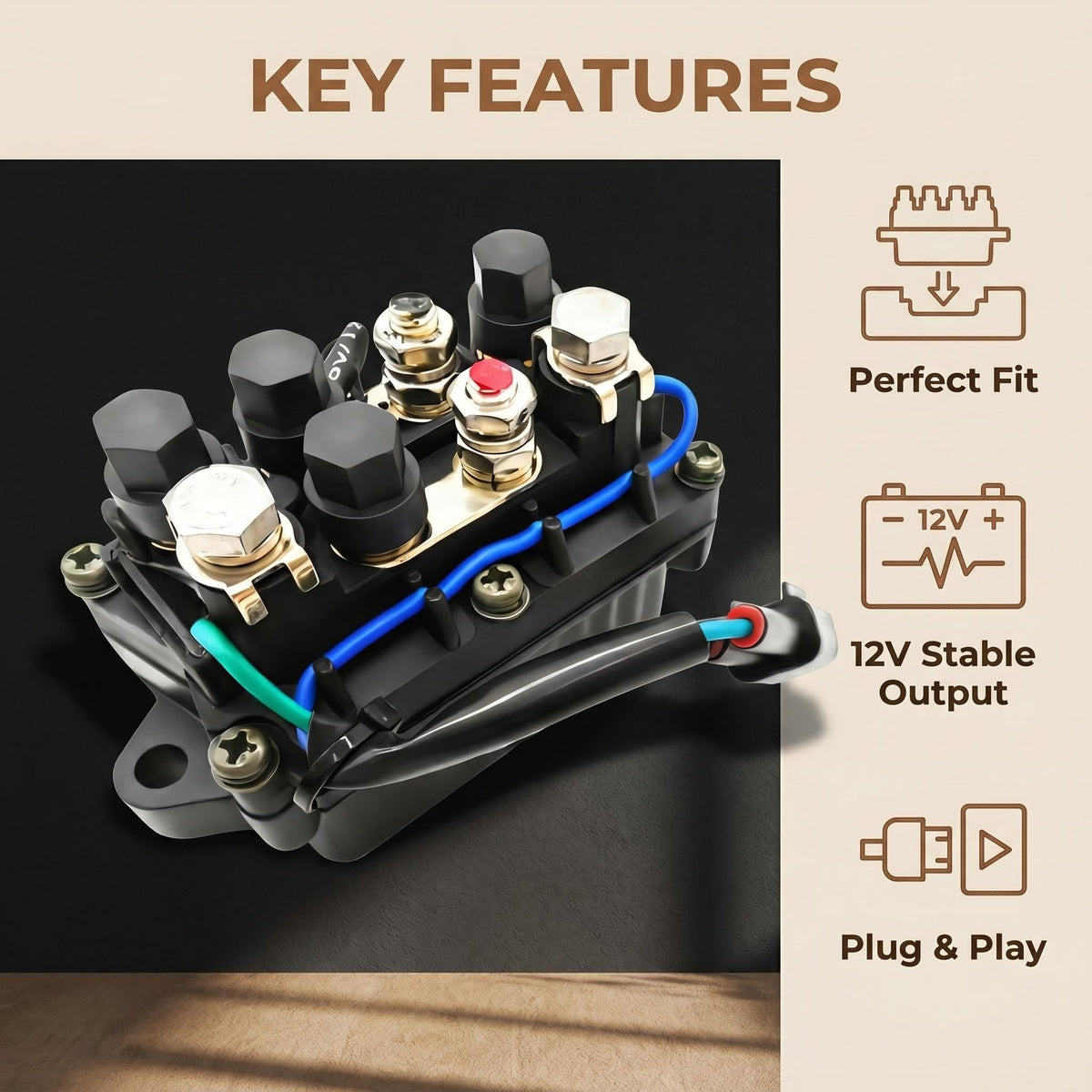

Key features

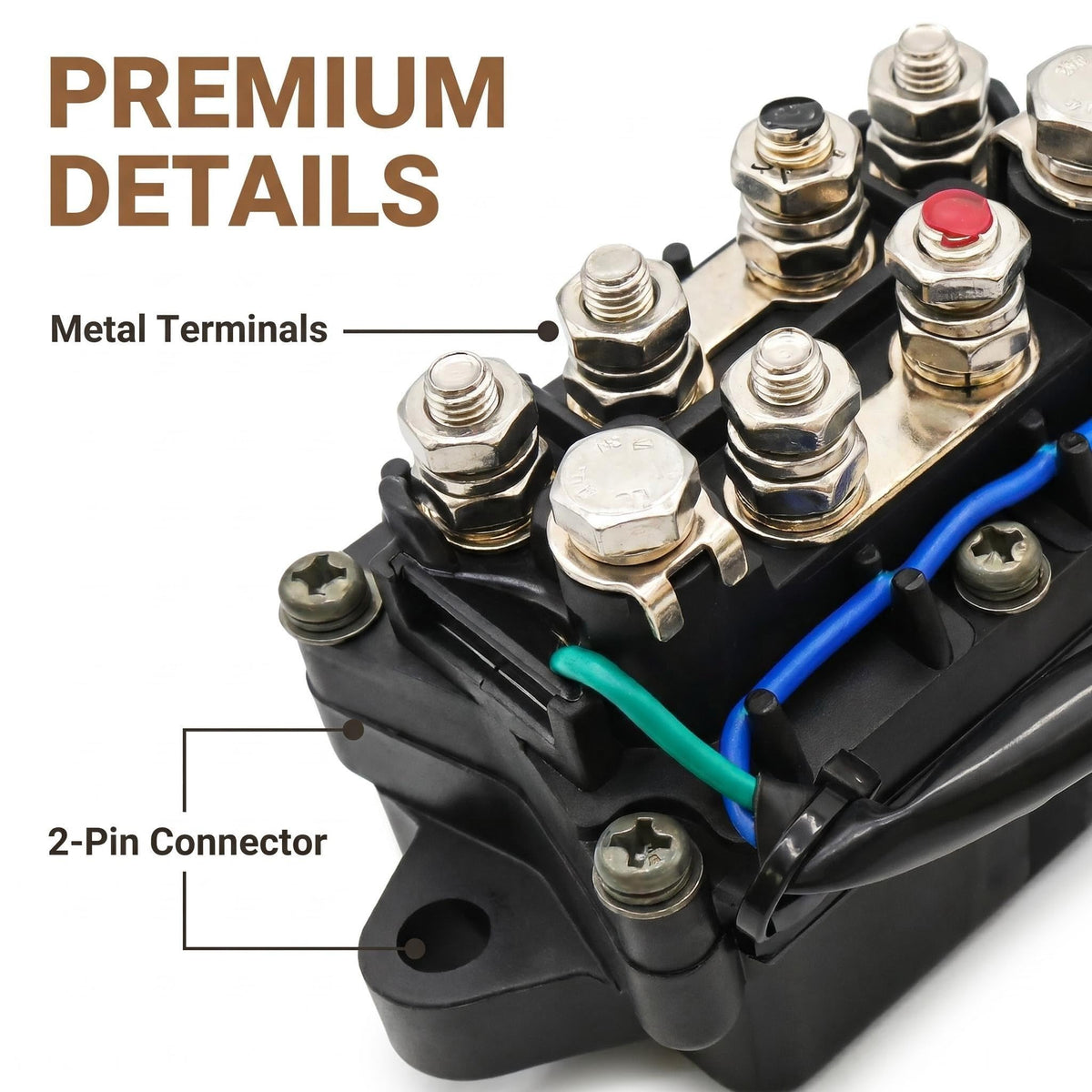

• Exact Cross-Reference Tilt Trim Relay (63P-81950-00-00)​ Direct aftermarket replacement for Yamaha outboard trim/tilt relay. Replaces 63P-81950-00-00, 63P819500000, 240-58022, TRM6003, 63P-81950. 12V DC, 2-pin rectangular plug, M6×1.0 studs, 92 mm center-to-center mount. Match old relay stamp + plug shape before ordering.
• Fits Yamaha 40-250 HP 4-Stroke Outboards​ Compatible with F40, F50/T50, F60/T60, F70, F75, F90, F115/VF115/LF115, F150/VF150/LF150, F175/VF175, F200/LF200, F225/F225XA, F250/LF250​ 4-stroke powerheads (approx 2004-up serial ranges).
• Fixes Dead Trim, Click-No-Actuate & Stuck Tilt​ Resolves trim motor silence, single-click no engage, intermittent up/down, and "trim fuse blows" caused by pitted contacts or coil open. Restores 20A-rated switching between helm switch and trim motor on the 12V circuit.

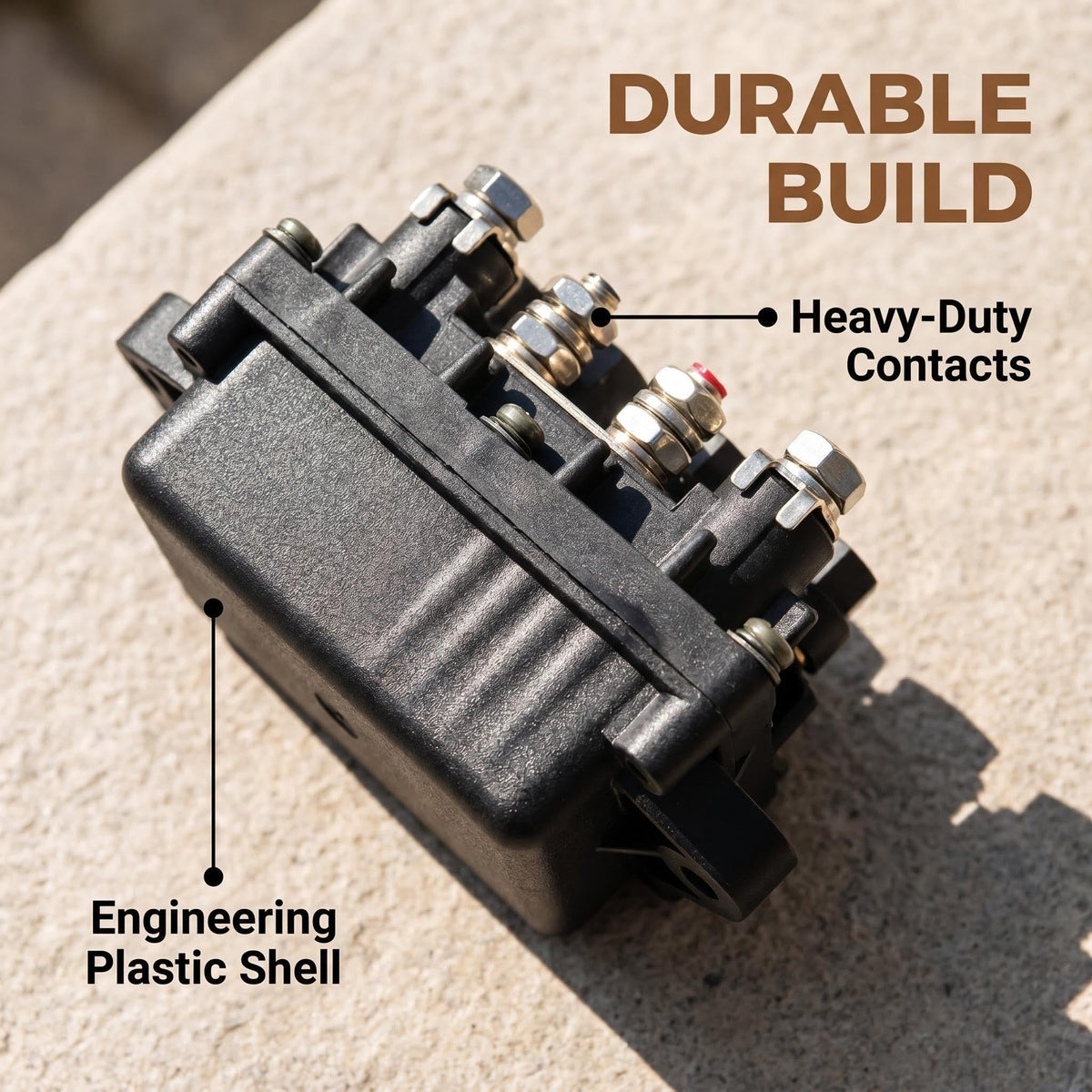

• Marine-Grade Copper Contacts + Sealed Housing​ Copper-alloy contact bridge, glass-reinforced nylon shell, and stainless mounting hardware resist salt-spray corrosion. Meets OEM current/heat spec for continuous trim duty; 6.6 mm mount holes line up with stock bracket—no drilling.
• Plug-and-Play 10-Minute Swap​ Disconnect battery, unplug 2-pin harness, remove two 6mm nuts from studs, swap relay, re-seat connector. No splicing. Test trim through full travel before closing cowling; dielectric-grease the plug if in saltwater use.

Free shipping included. 30-day hassle-free returns.
