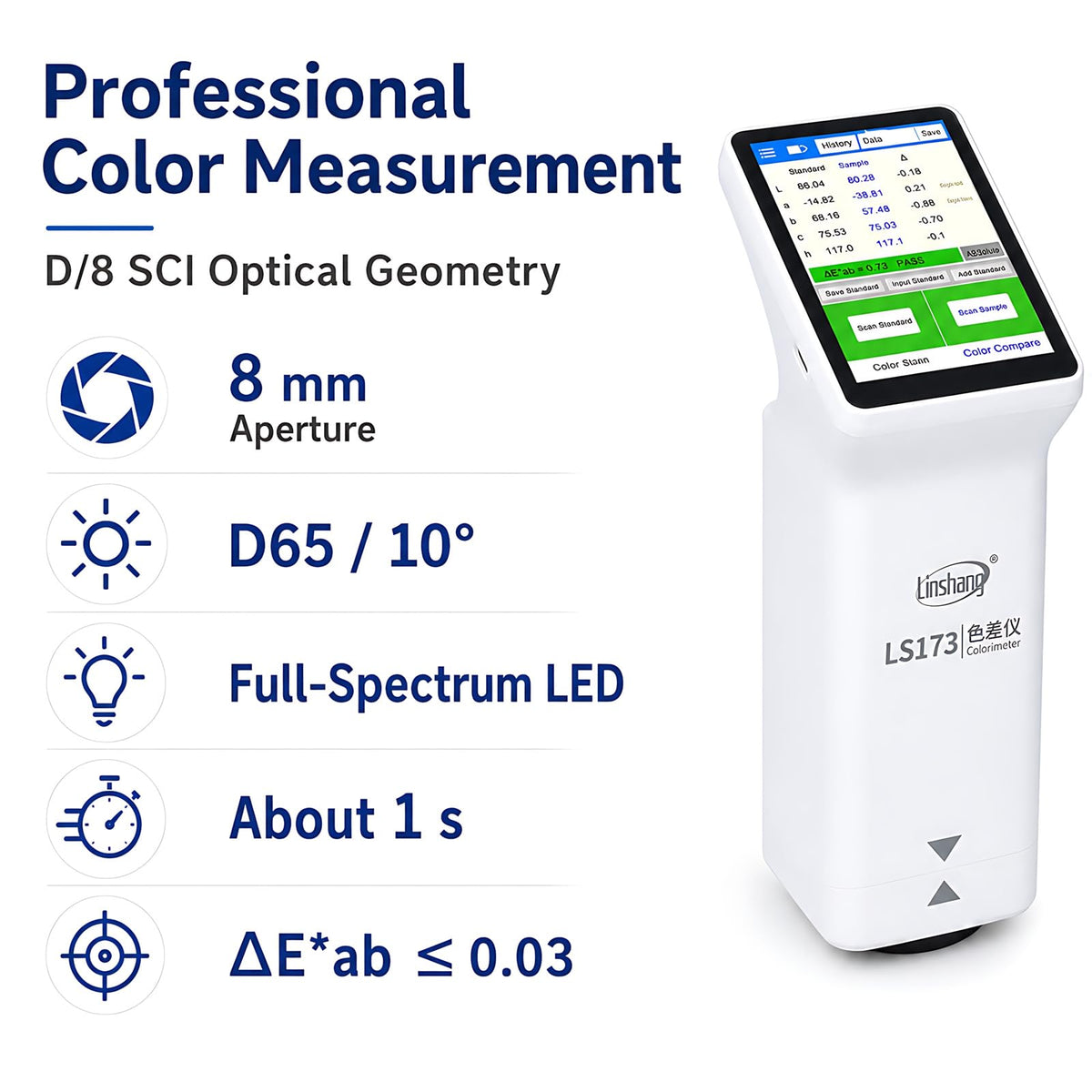

LS173 Colorimeter, D/8 Color Difference Meter, 8mm Aperture

Key features

• PROFESSIONAL D/8 SCI OPTICS – Uses D/8 illumination with SCI, full-spectrum LED, D65 light source, 10° observer and 8 mm aperture.
• HIGH REPEATABILITY & FAST TESTING – ΔE*ab standard deviation within 0.03 and approximately 1-second measurement for efficient color checks.
• COLOR DIFFERENCE QC – Set ΔE thresholds and compare standard and sample colors with PASS/FAIL results for fast production quality control.
• MULTIPLE COLOR SPACES & ΔE FORMULAS – Supports Lab, LCh, Luv, Yxy, RGB, CMYK, HSL, HSV, WI, YI and multiple ΔE formulas.
• TOUCHSCREEN & DATA STORAGE – 3.5-inch IPS touchscreen with up to 1,000 color compare, scan and standard records for convenient review.

Specifications: Illumination geometry: D/8, specular component include (SCI) Illumination light source: Full spectrum LED light source Measuring aperture: 8mm Measurement conditions: Light source D65, field of view 10° Measuring time: About 1s Color space: CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex Color difference formula: ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00 Repeatability: Standard deviation ΔE*ab ≤ 0.03 (Measurement condition: the average value of 30 measurements on the whiteboard at aninterval of 3s after calibration) Dimension: 86mm×62.5mm×158mm Weight: About 245g Power supply: Rechargeable lithium battery3.7V@4000mAh, can measure 10,000 times continuously under full charge Display: 480×320 dot matrix IPS color screen Language: Simplified Chinese, English Charging port: USB (Type-C) Operating temperature range: 0~45℃, 0~85%RH (no condensation) Storage temperature range: -25~55℃, 0~85%RH (no condensation) Packing List 1 x Colorimeter 1 x USB cable 1 x Cleaning cloth 1 x Locating plate 1 x User manual 1 x Certificate / Warranty card 1 x Calibration Report
