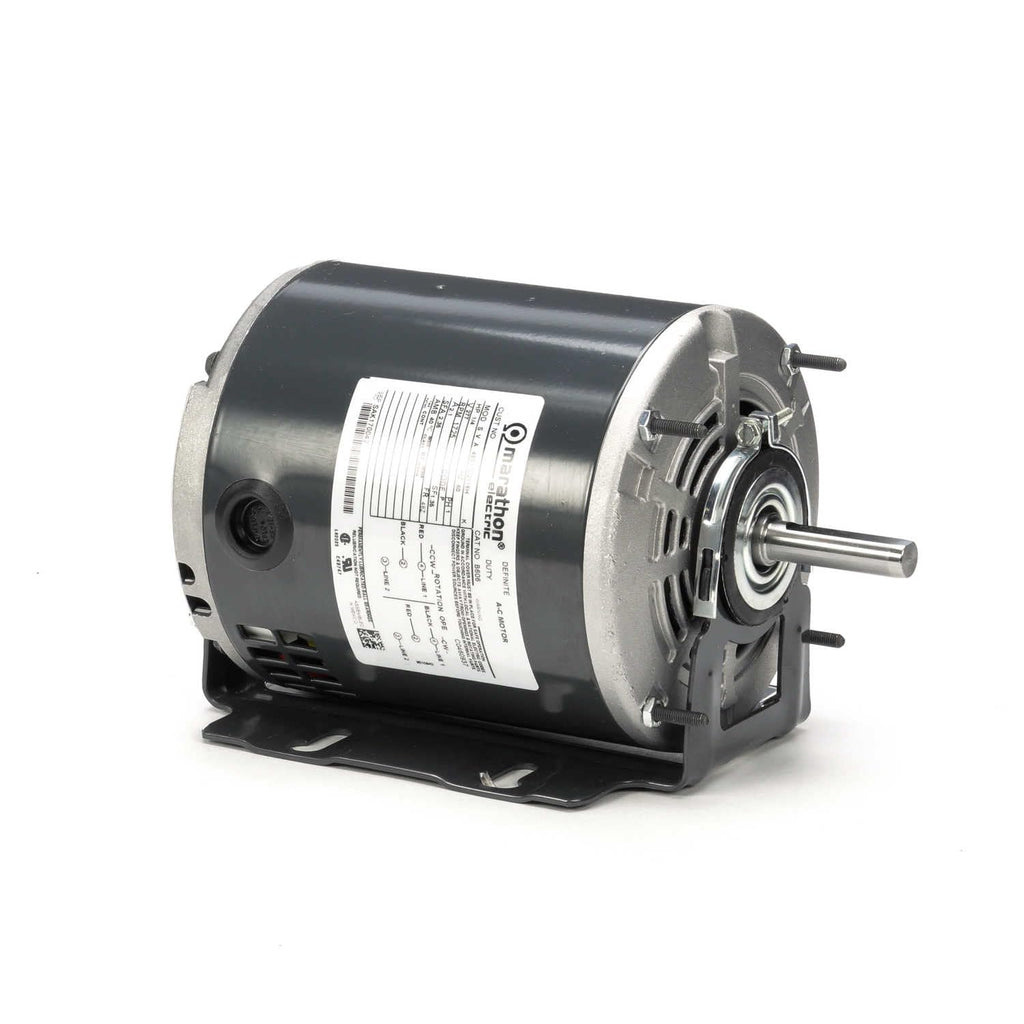

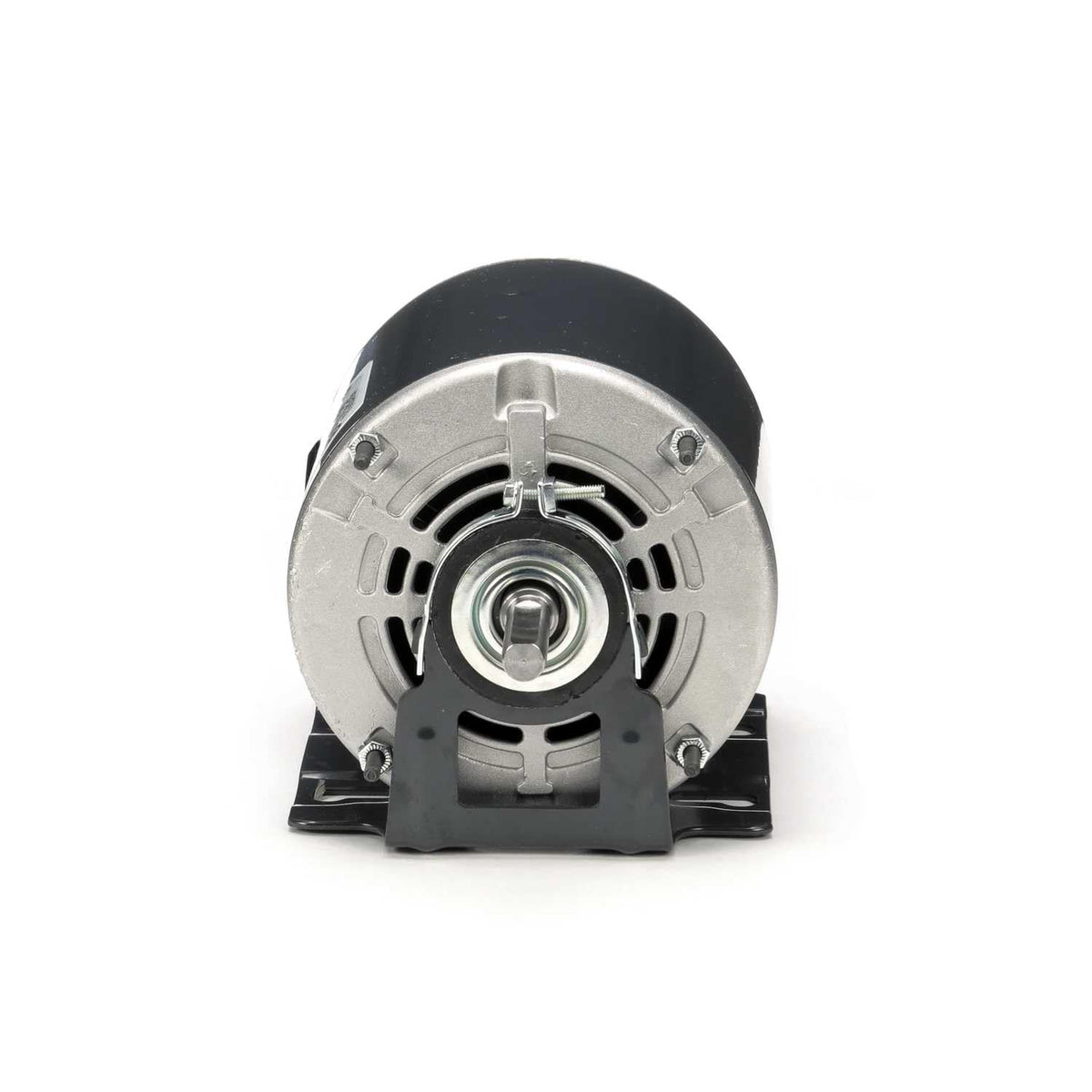

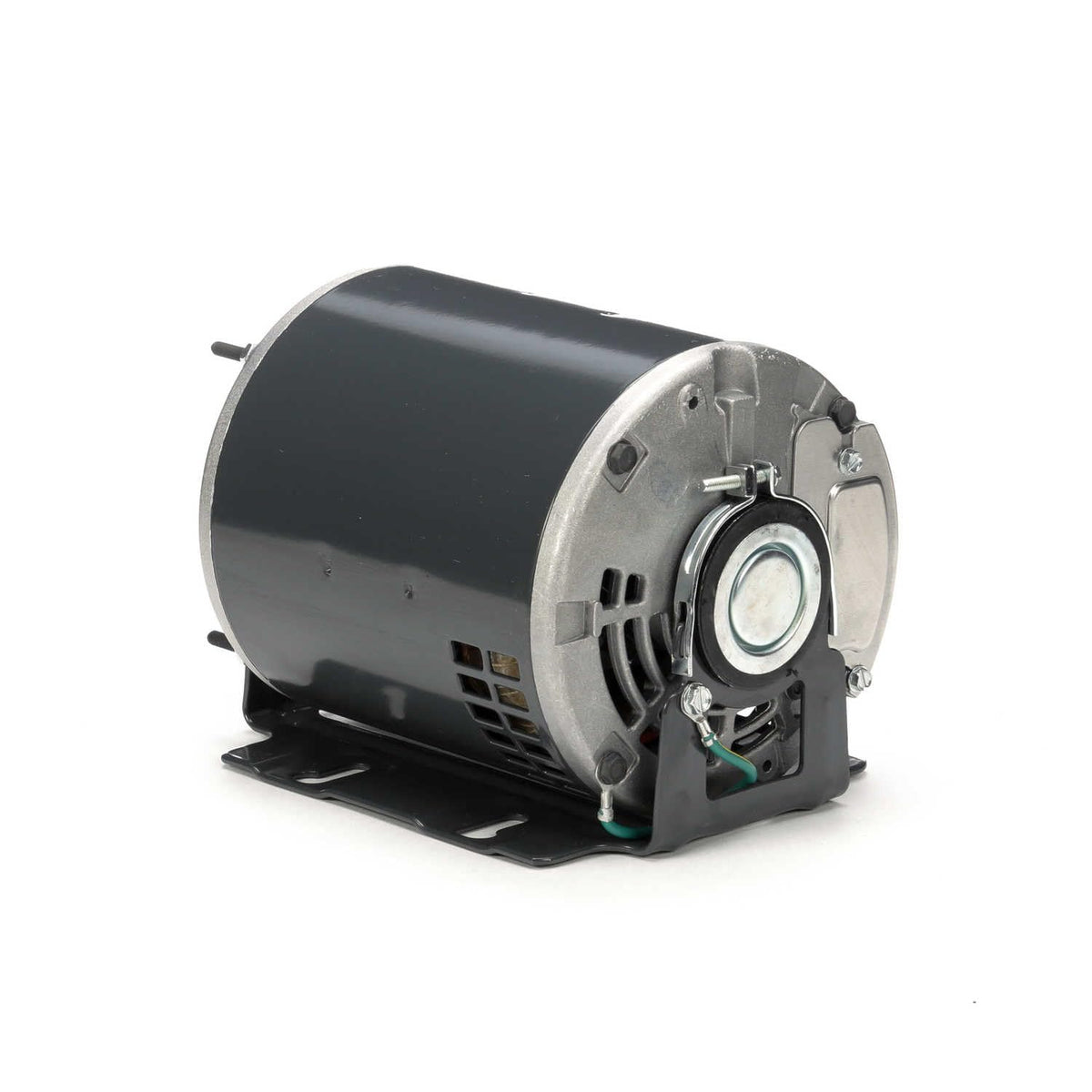

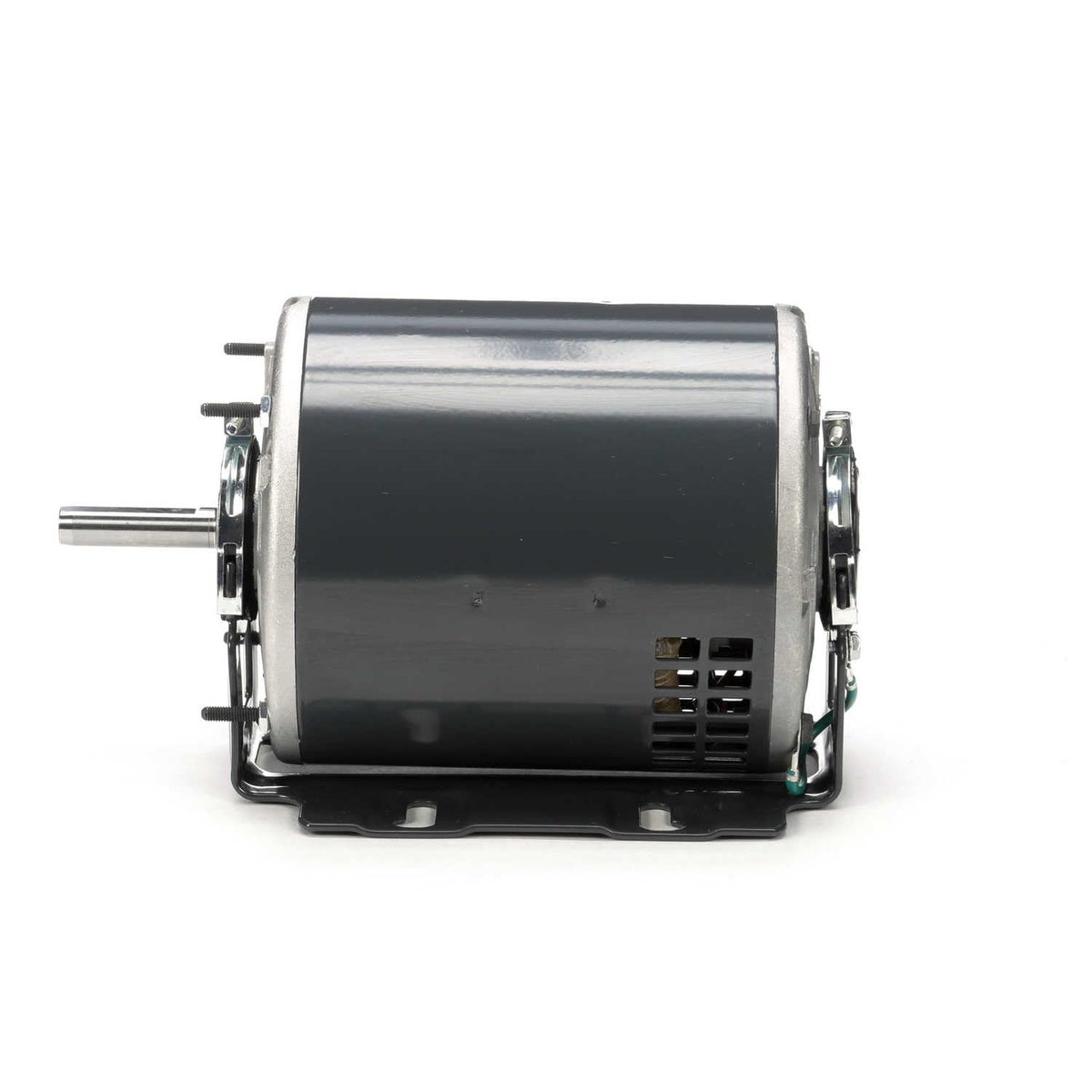

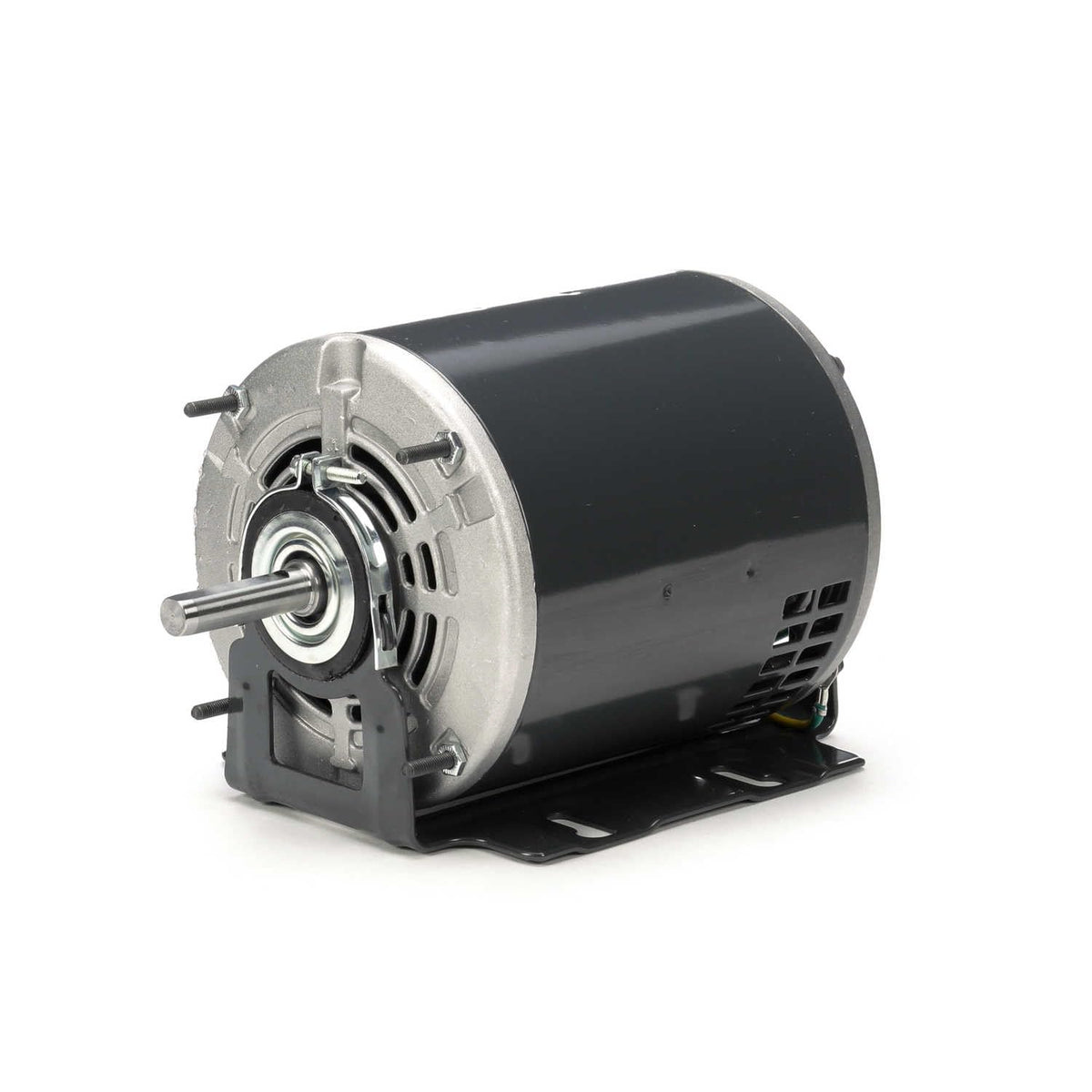

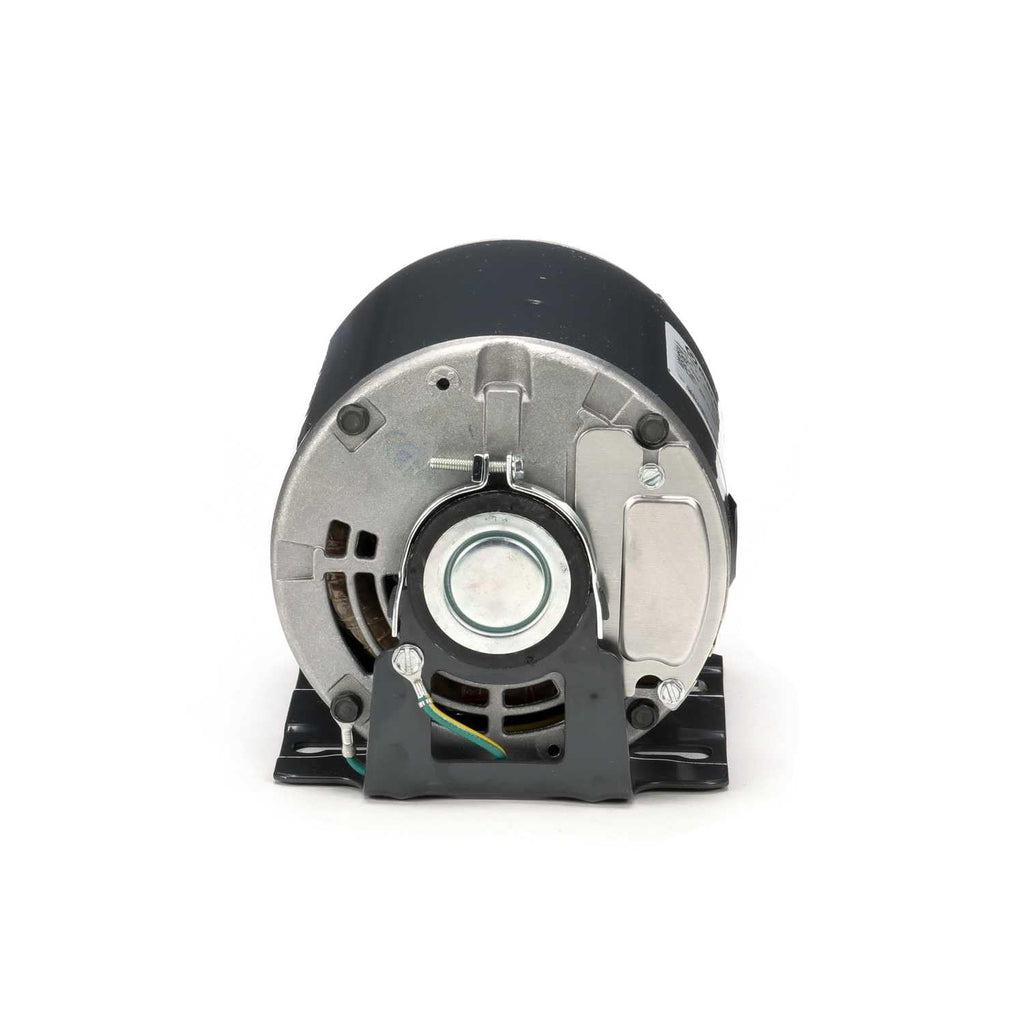

Marathon Fan and Blower Motor, 0.25 HP, 1 Ph, 60 Hz, 277 V, 1800 RPM, 48Z Frame, DP - B606

Key features

• Automatic reset thermal protector prevents overheating.
• Patented MAXGuard insulation system offers superior protection for use with a variable frequency drive.
• Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
• Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
• Vertical/horizontal mounting for proper placement of the fan within airflow.
• General Specifications Nameplate Specifications Technical Specifications Speed Characteristics Load Characteristics

Automatic reset thermal protector prevents overheating. Patented MAXGuard insulation system offers superior protection for use with a variable frequency drive. Permanently lubricated, double-sealed bearings extend the lifetime of the motor. Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications. Vertical/horizontal mounting for proper placement of the fan within airflow. General Specifications Nameplate Specifications Technical Specifications Speed Characteristics Load Characteristics General Specifications UPC: 722856039378 Weight: 13.00 LB Packaged Length: 11.06 IN Packaged Width: 6.75 IN Packaged Height: 6.62 IN HTC: 8501.40.4040 Country of Origin: Mexico Nameplate Specifications Output HP: 0.25 Hp Output KW: 0.19 kW Frequency: 60 Hz Voltage: 277 V Current: 2.1 A Speed: 1725 rpm Service Factor: 1.35 Phase: 1 Efficiency: 59.5 % Power Factor: 53.5 Duty: Continuous Insulation Class: B Design Code: NO DESIGN CODE KVA Code: P Frame: 48Z Enclosure: Drip Proof Thermal Protection: No Protection Ambient Temperature: 40 °C Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203 UL: Recognized CSA: Y CE: N IP Code: 22 Number of Spee
