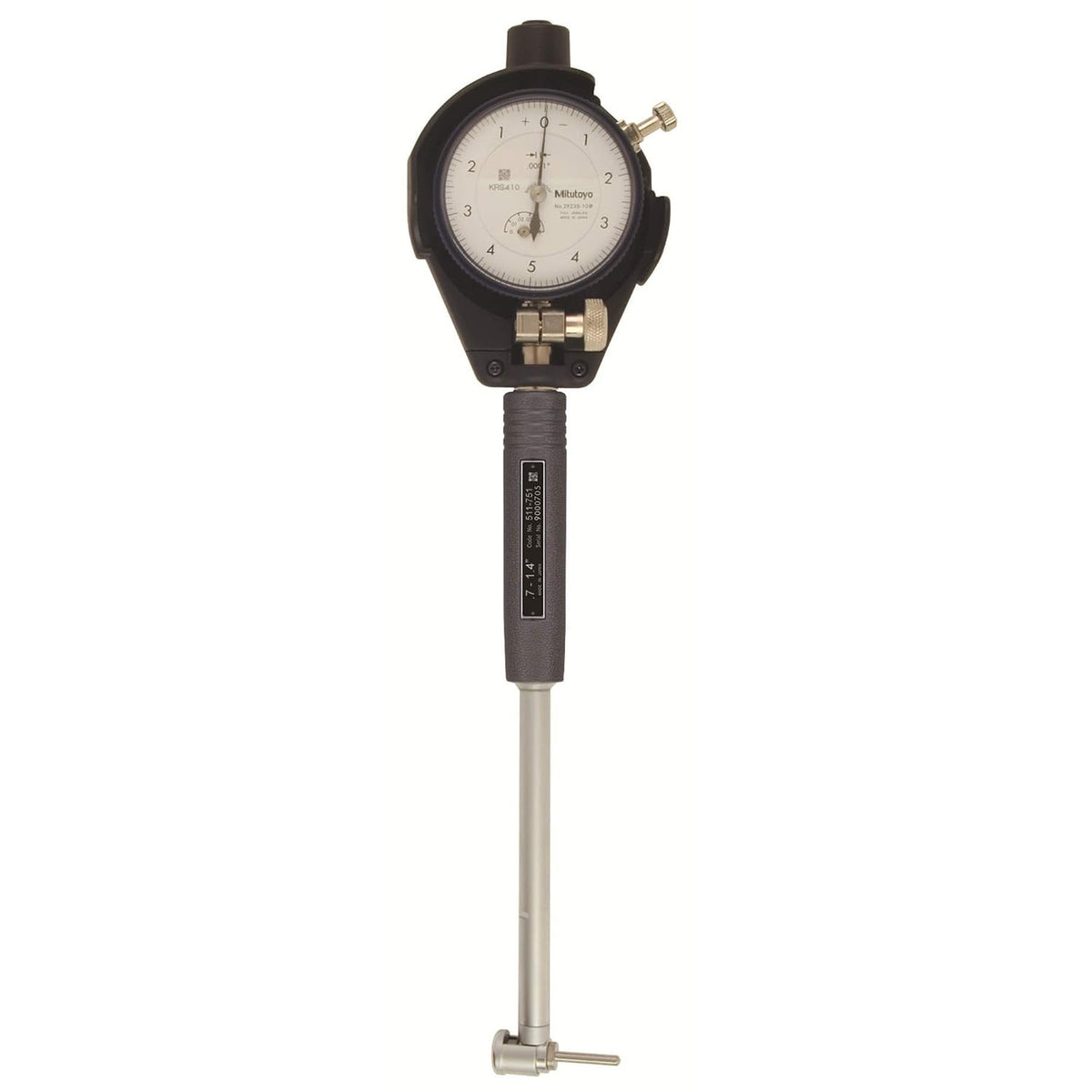

Mitutoyo 511-751 Dial Bore Gauge, 0.7-1.4" Range, 0.0001" Graduation, +/-0.0008" Accuracy

Key features

• Total measurement range of 0.7 to 1.4" and accurate to + or - 0.0008"
• Gradient spacing of 0.0001"
• Rugged cover for dial indicator protection
• Two-point contact for detection of geometry problems such as ovality and taper
• Carbide-tipped contact points for extended wear and improved abrasion resistance

The Mitutoyo 511-751 Dial Bore Gauge has a measurement range of 0.7 to 1.4" and is accurate to + or - 0.0008". It is precise to 0.0001". This direct-measuring gauge uses a two-point contact system to detect geometry problems such as ovality and taper, and carbide-tipped contact points provide extended wear and improved abrasion resistance. A rugged cover protects the dial indicator.Bore gauges measure holes, or bores, in a workpiece. They can measure the interior diameter of a hole at any depth, while internal micrometers can only measure to the depth of their teeth. Bore gauges are typically calibrated with a setting ring and come in two types: simple and direct-measuring. Simple bore gauges are used with a caliper to transfer the hole measurement, while the more complex gauges take the measurement directly, and display it through a vernier, dial, or digital display. Bore gauges have a two- or three-point contact, indicating how many points on the gauge head touch the inside of the bore. Two-point contacts are better at measuring ovality, while three-point contacts are used to measure lobing or triangular form error. Pistol-grip bore gauges are used for fast, single-handed operati
