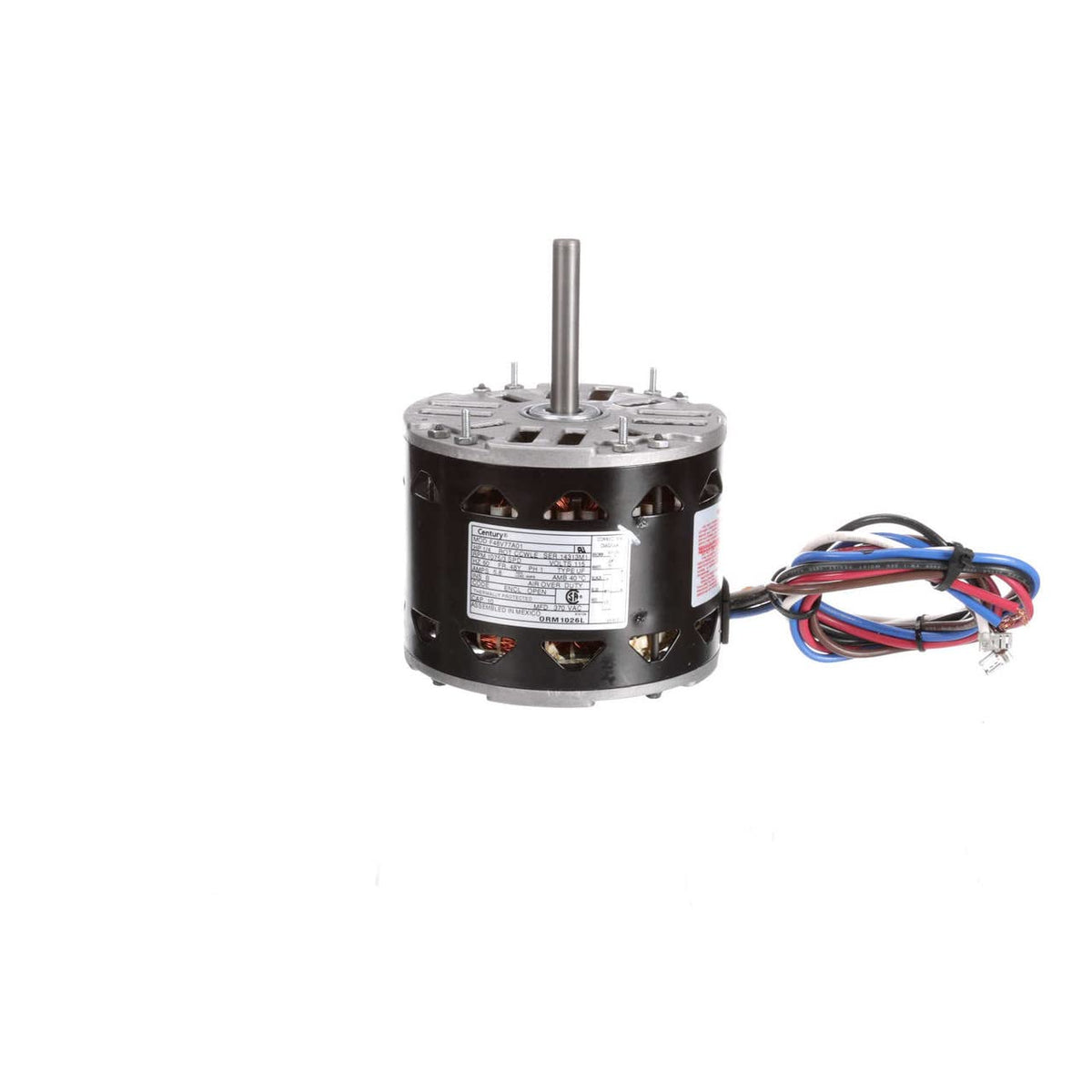

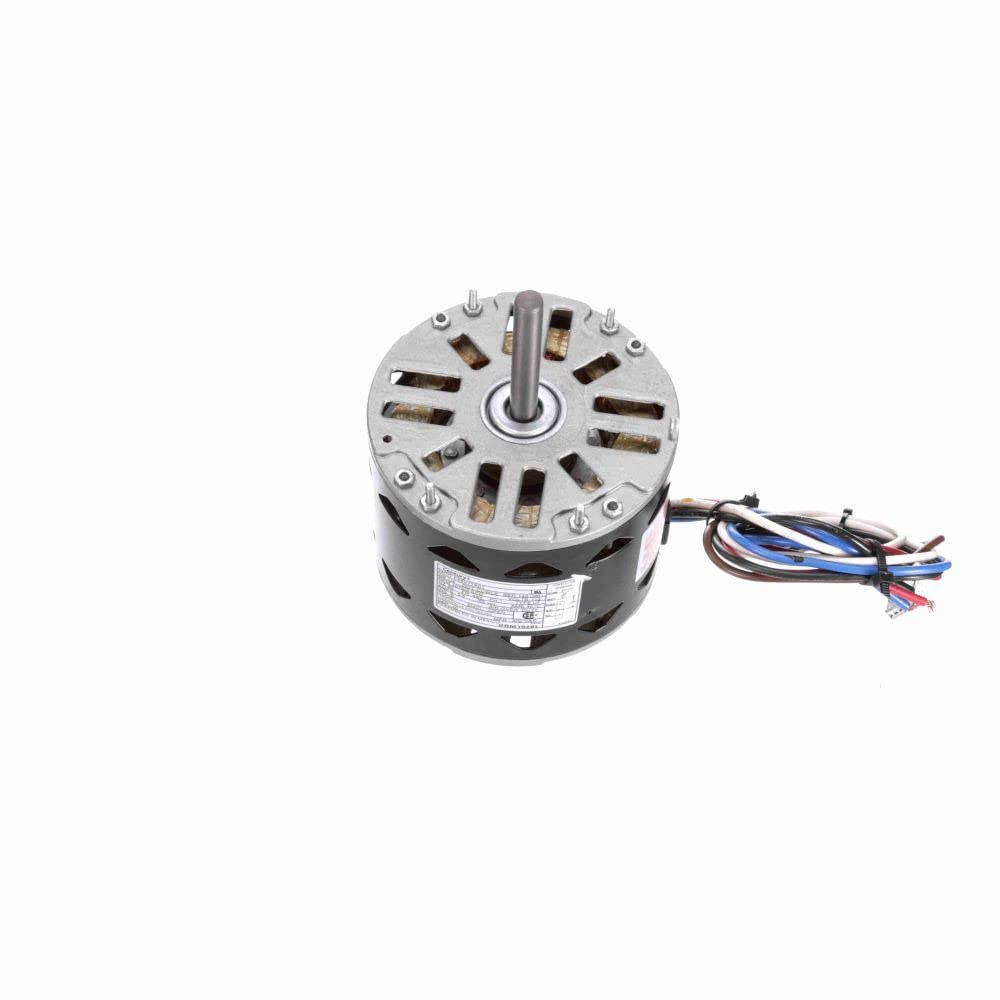

Motor, PSC, 1/4 HP, 1075 RPM, 115V, 48Y, OAO

Key features

• Price For: Each Motor Service Factor: 1.00 Phase: 1 Motor Thermal Protection: Auto Motor Design: Permanent Split Capacitor Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240 Standards: UL Recognized, CSA Certified No. of Speeds: 3 Hz: 60 Motor Application: OEM Replacement Capacitor Required: 2MDV7 Max. Ambient Temp.: 40 Degrees C Nameplate RPM: 1075
• Mounting Stud Pattern: 4-1/2" x 2-9/16" Length Less Shaft: 4-3/8" Item: OEM Replacement Motor Bolt Circle Dia.: 5-3/16" Shaft Dia.: 1/2" HP: 1/4 Body Dia.: 5-5/8" Full Load Amps: 5.8 Ins. Class: B Frame: 48Y Application: Rheem Ruud Motor Bearings: Sleeve Motor Shaft Rotation: CCWLE Voltage: 115 Motor Enclosure Design: Open Air-Over Shaft Length: 3" Motor Mounting Type: Stud
• Overall Length: 7-3/8" Country of Origin (subject to change): Mexico

' OEM Replacement Motor, Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1075, Voltage 115, Frame 48Y, Open Air-Over, Full Load Amps 5.8, 60 Hz, Stud Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class B, Motor Service Factor 1.00, Sleeve Motor Bearings, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Overall Length 7-3/8 In., Shaft Dia. 1/2 In., Shaft Length 3 In., Capacitor Required G2351474 '
