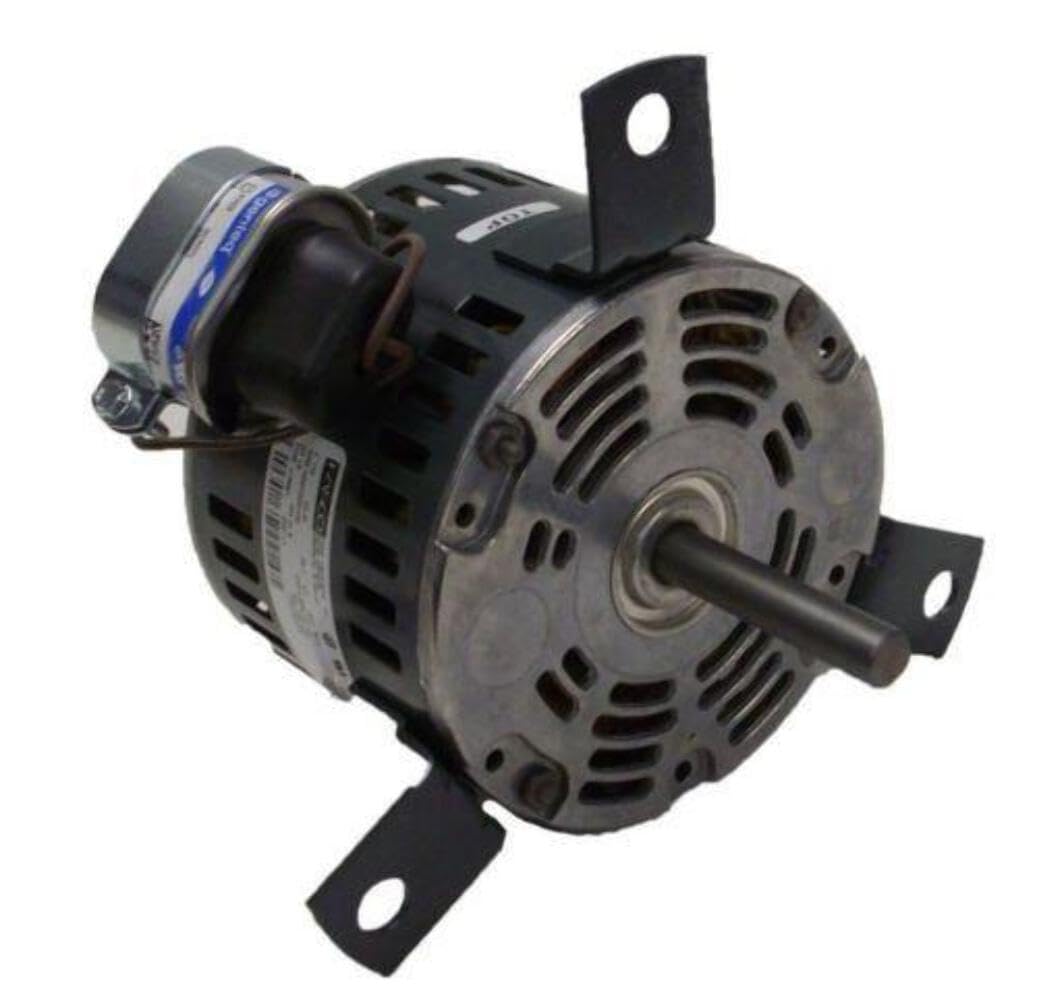

Motor, PSC, 1/7 HP, 1550 RPM, 115V, 42Y, Open

Key features

• Price For: Each Motor Service Factor: 1.00 Phase: 1 Motor Thermal Protection: Auto Motor Design: Permanent Split Capacitor Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240 Standards: UL Recognized (E46412), CSA Certified (LR43341) No. of Speeds: 3 Hz: 60 Motor Application: OEM Replacement Capacitor Required: Included Max. Ambient Temp.: 50 Degrees C
• Nameplate RPM: 1550 Length Less Shaft: 4-1/4" Item: OEM Replacement Motor Shaft Dia.: 1/2" HP: 1/7 Body Dia.: 5" Full Load Amps: 2.5 Ins. Class: B Frame: 42Y Application: Aaon Motor Bearings: Sleeve Motor Shaft Rotation: CW/CCW Voltage: 115 Motor Enclosure Design: Open Shaft Length: 2-1/2" Motor Mounting Type: Lug Overall Length: 6-3/4"
• Country of Origin (subject to change): Mexico

' OEM Replacement Motor, Permanent Split Capacitor, 1/7 HP, Nameplate RPM 1550, Voltage 115, Frame 42Y, Open, Full Load Amps 2.5, 60 Hz, Lug Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class B, Motor Service Factor 1.00, Sleeve Motor Bearings, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CW/CCW, Overall Length 6-3/4 In., Shaft Dia. 1/2 In., Shaft Length 2-1/2 In., Capacitor Required Included '
