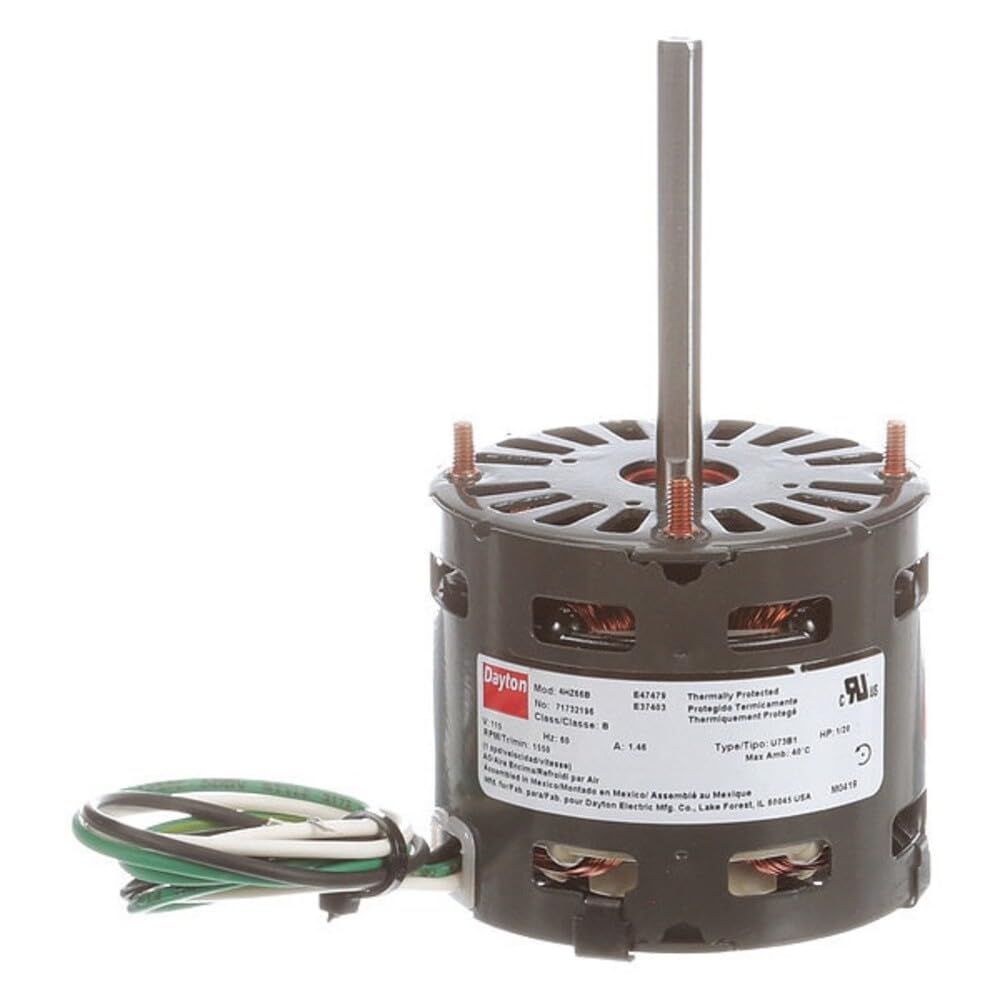

Motor, Sh Pole, 1/25 HP, 1550, 115V, 3.3, OAO
Motor, Sh Pole, 1/25 HP, 1550, 115V, 3.3, OAO
Permanent split capacitor motors include capacitor; designed specifically as replacement motors for Dayton ventilators. Item: Direct Drive Blower Motor Motor Application: HVAC/R Motor Sub Application: Direct Drive Fan/Blower Motor Design: Shaded Pole Motor Enclosure Design: Open Air-Over HP: 1/25 Nameplate RPM: 1550 Voltage: 115 Full Load Amps: 1.4 Hz: 60 Phase: 1 Frame: 3.3 Motor Service Factor: 1.00 Max. Ambient Temp.: 40 Degrees C Ins. Class: B Duty: Continuous No. of Speeds: 1 Motor Mounting Type: Stud Motor Mounting Position: All Angle Motor Bearings: Ball Motor Thermal Protection: Auto Motor Shaft Rotation: CCWSE Replacement For: Mfr. No. 4HZ32, 4HZ33, 4HZ34, 4HZ35 Length Less Shaft: 3" Shaft Dia.: 5/16" Shaft Length: 3" Motor Shaft Design: Flat Capacitor Required: No RPM Range: 1501-1600 Application: Mfr. No. 4HZ32, 4HZ33, 4HZ34, 4HZ35
Free shipping included. 30-day hassle-free returns.
