Neoteck 0-22 Inch Digital Depth Micrometer with 1"/0.0005" Dial Indicator

Key features

• 0-22 in Digital Depth Micrometer: Measure depths from 0-22 in / 558.8 mm with this digital depth gauge tool, featuring a 1 in / 25.4 mm indicator range, ±0.001 in/±0.02 mm accuracy, and 0.0005 in / 0.01 mm / 1/128 resolution. Designed for measuring grooves, holes, slots, metal sheets, and precision components in machining and inspection applications

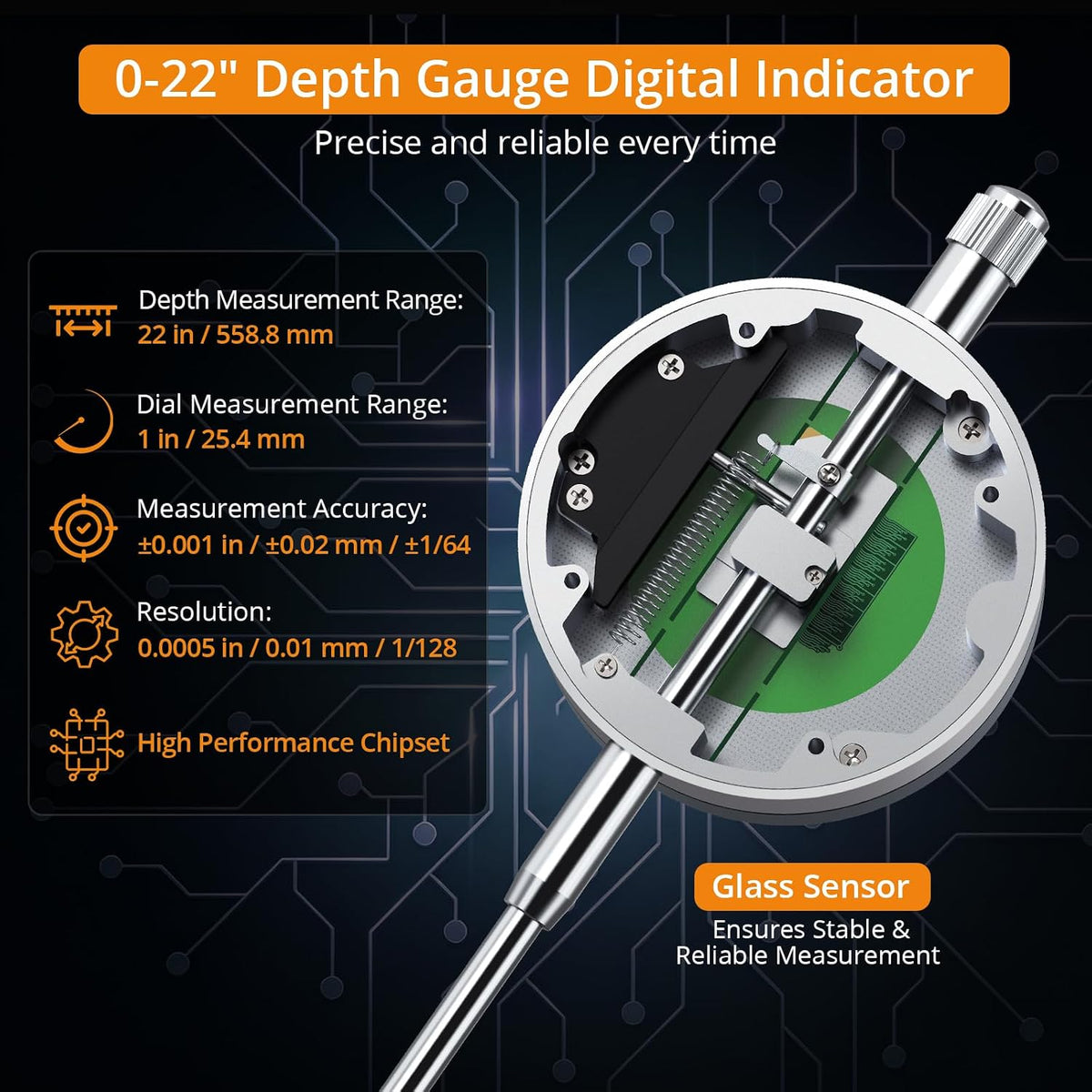

• High-Precision Digital Indicator Gauge: Equipped with a high-performance sensor system, this digital dial indicator provides stable linear measurement results with clear digital readings. The 0.0005 in / 0.01 mm resolution helps users perform accurate comparisons, inspections, and repeat measurements for mechanical parts and precision components

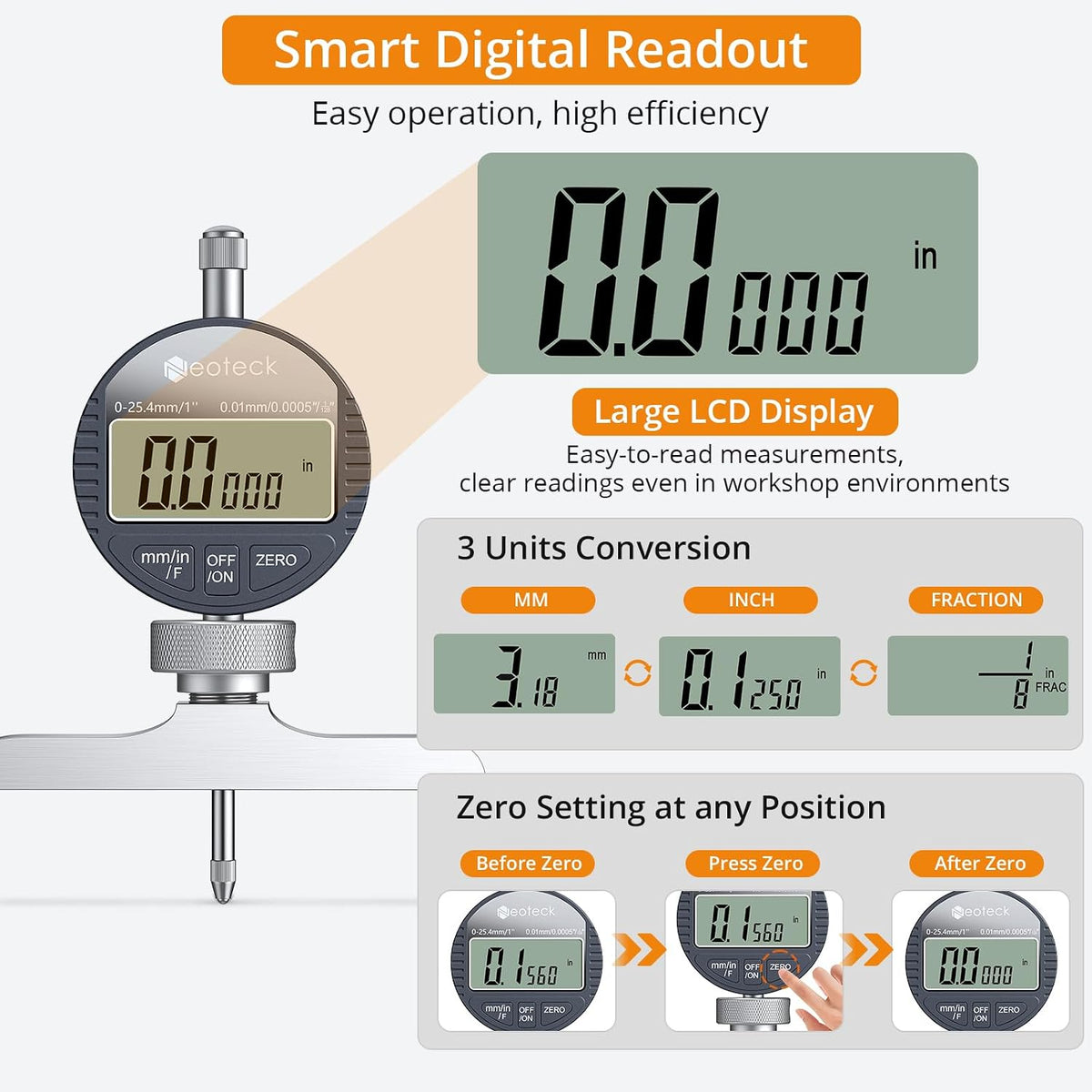

• Smart & Convenient Operation: Neoteck depth micrometer features a clear LCD display with quick switching between inch, metric, and fractional measurements. The zero-setting function allows users to establish a reference point at any position for comparison measurements and faster depth checking

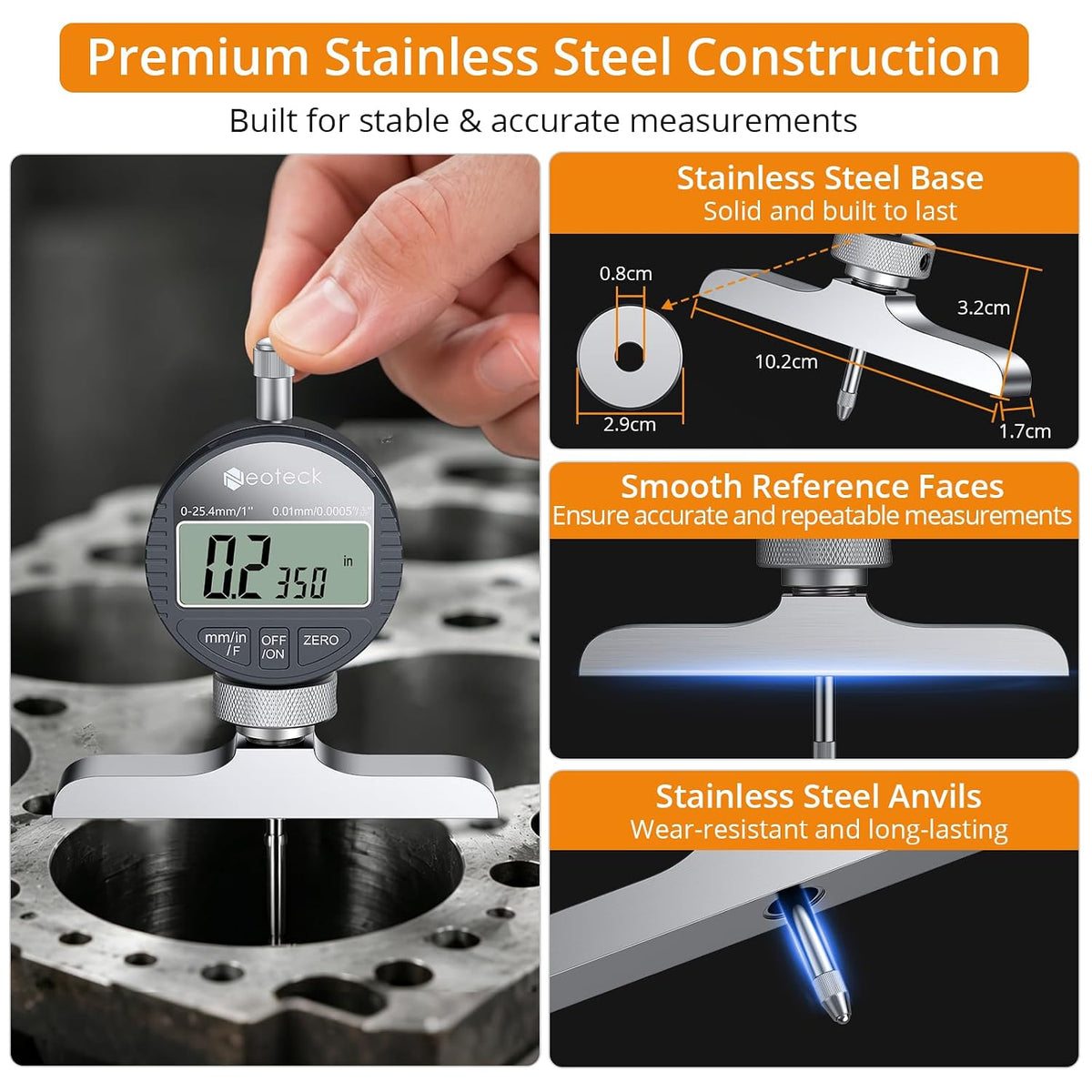

• Solid Metal Base with Smooth Reference Surface: Built with a long-lasting metal frame and smooth reference base, this depth micrometer provides stable contact with workpieces to help reduce measurement errors. The compact 3.89 X 0.61 X 0.96 in base offers a reliable reference surface for workshop, machining, and quality inspection tasks

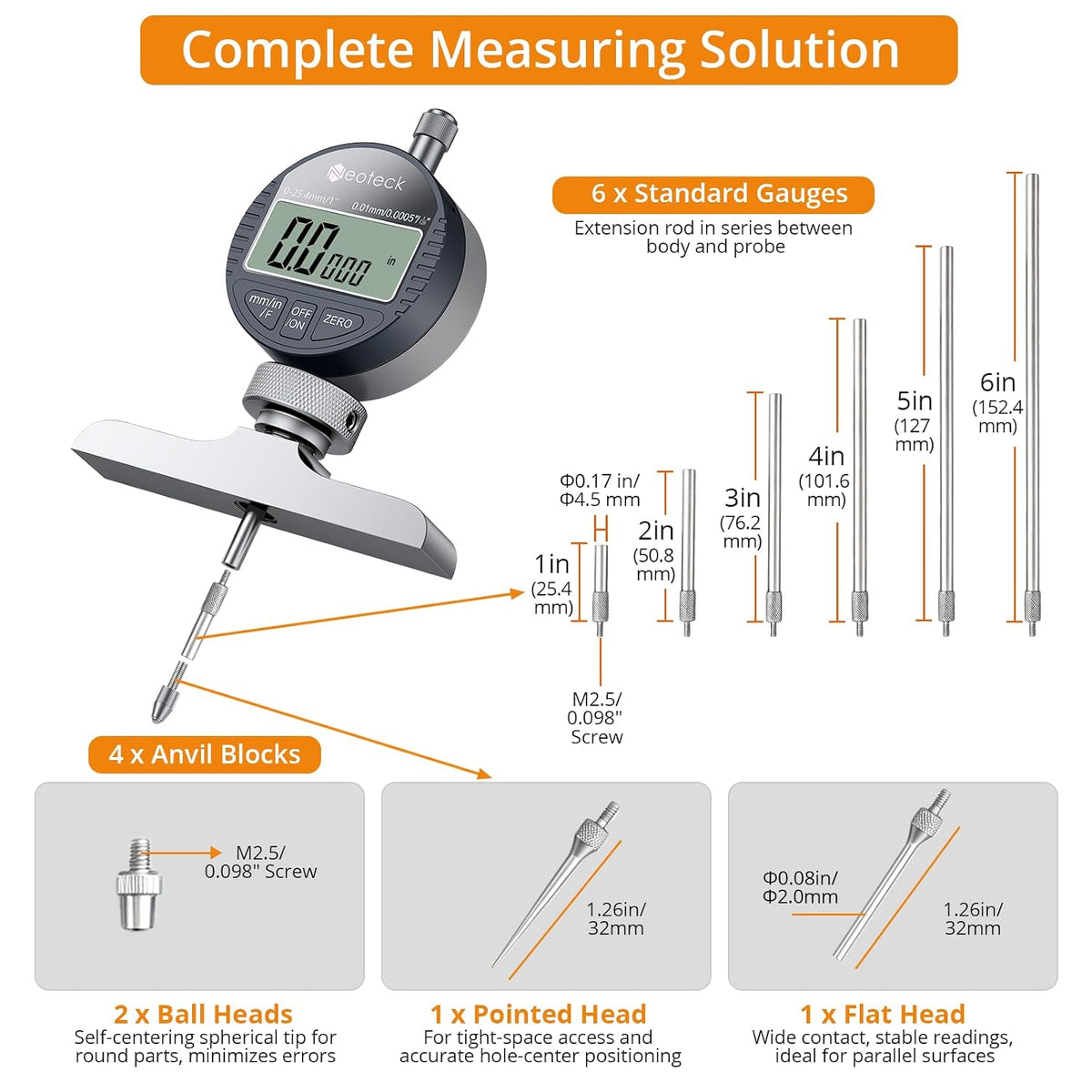

• Multiple Anvils & Extension Rods: This depth gauge tool includes 4 interchangeable anvil blocks and 6 standard extension rods to measure different workpiece depths. The rod and probe feature an M2.5 / 0.098" thread size for secure connection and stable measurement. Combined rods extend the measuring range up to 22 inches, making it suitable for grooves, recessed areas, metal sheets, and precision machining applications

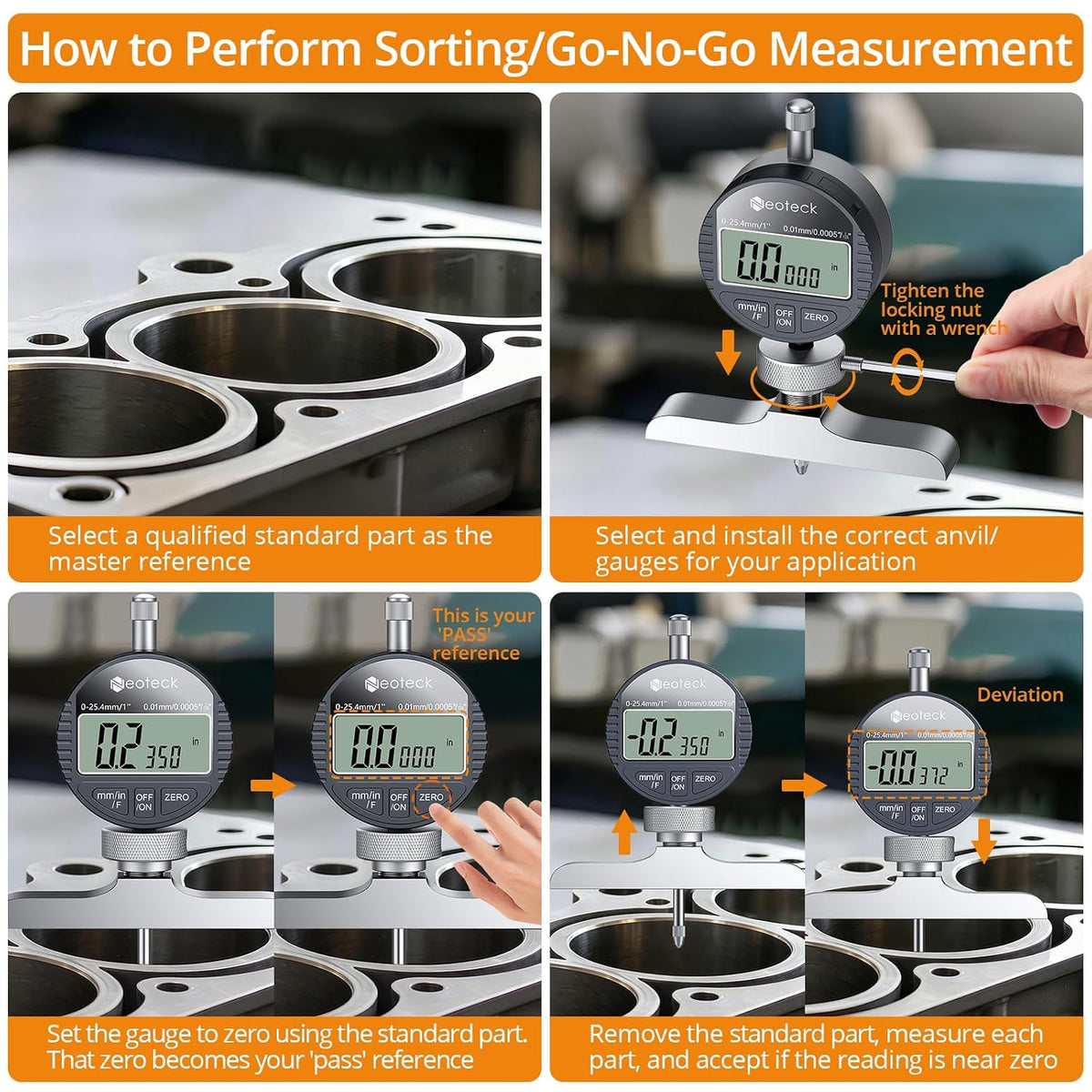

• How to Measure Depth: Place the digital depth gauge flat on a reference surface and press ZERO to establish the baseline. Then position the gauge over the groove or recess and extend the probe to the bottom—the displayed value is the measured depth. Simple zero-reference operation makes depth measurement quick and intuitive for grooves, slots, holes, and recessed surfaces

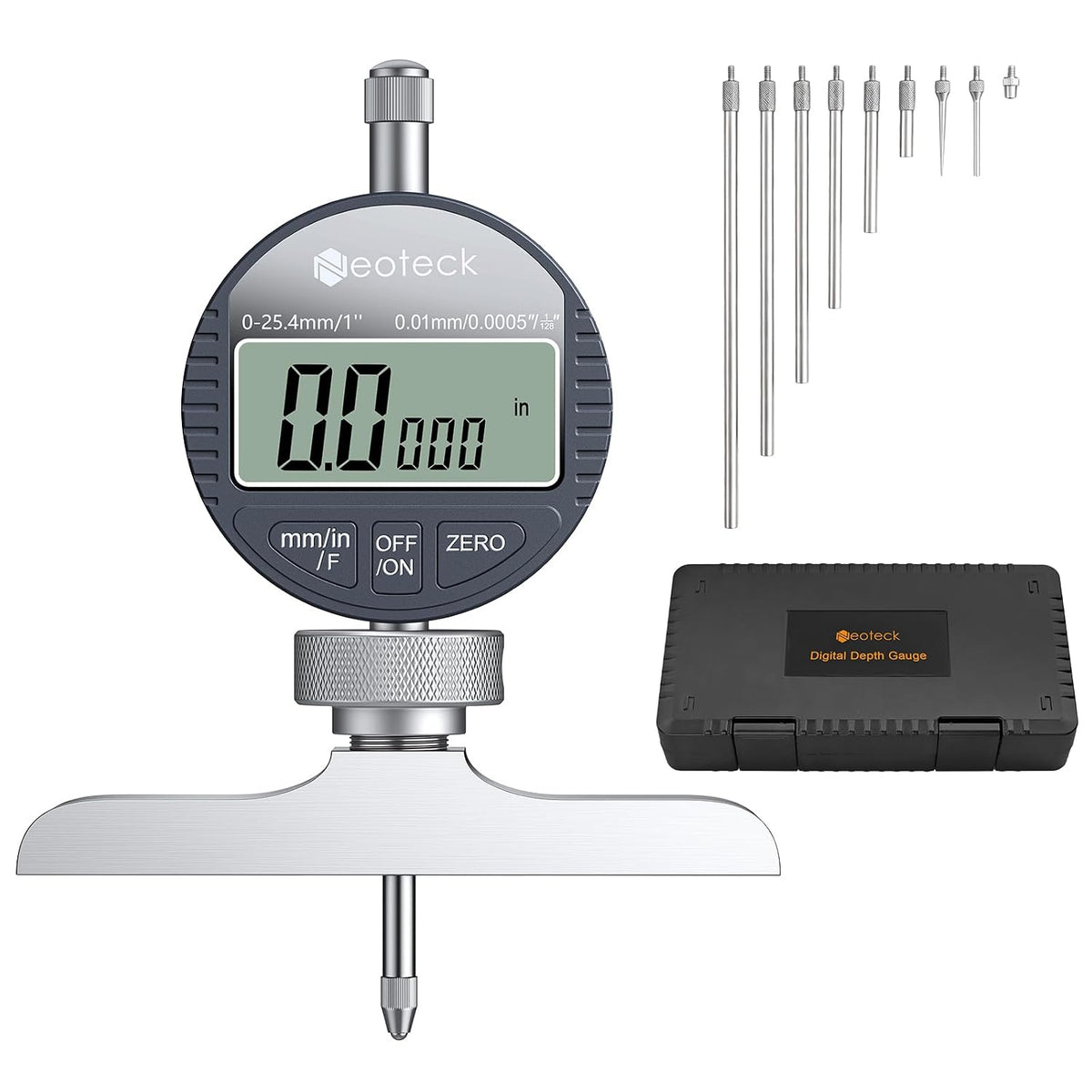

• Complete Digital Depth Gauge Kit: The digital depth gauge comes with 1 depth micrometer, 6 standard rods, 4 anvil blocks, plastic storage case, and instruction manual. Designed for machinists, engineers, automotive technicians, and quality inspectors, it is ideal for measuring engine parts, metal components, grooves, and precision assemblies
