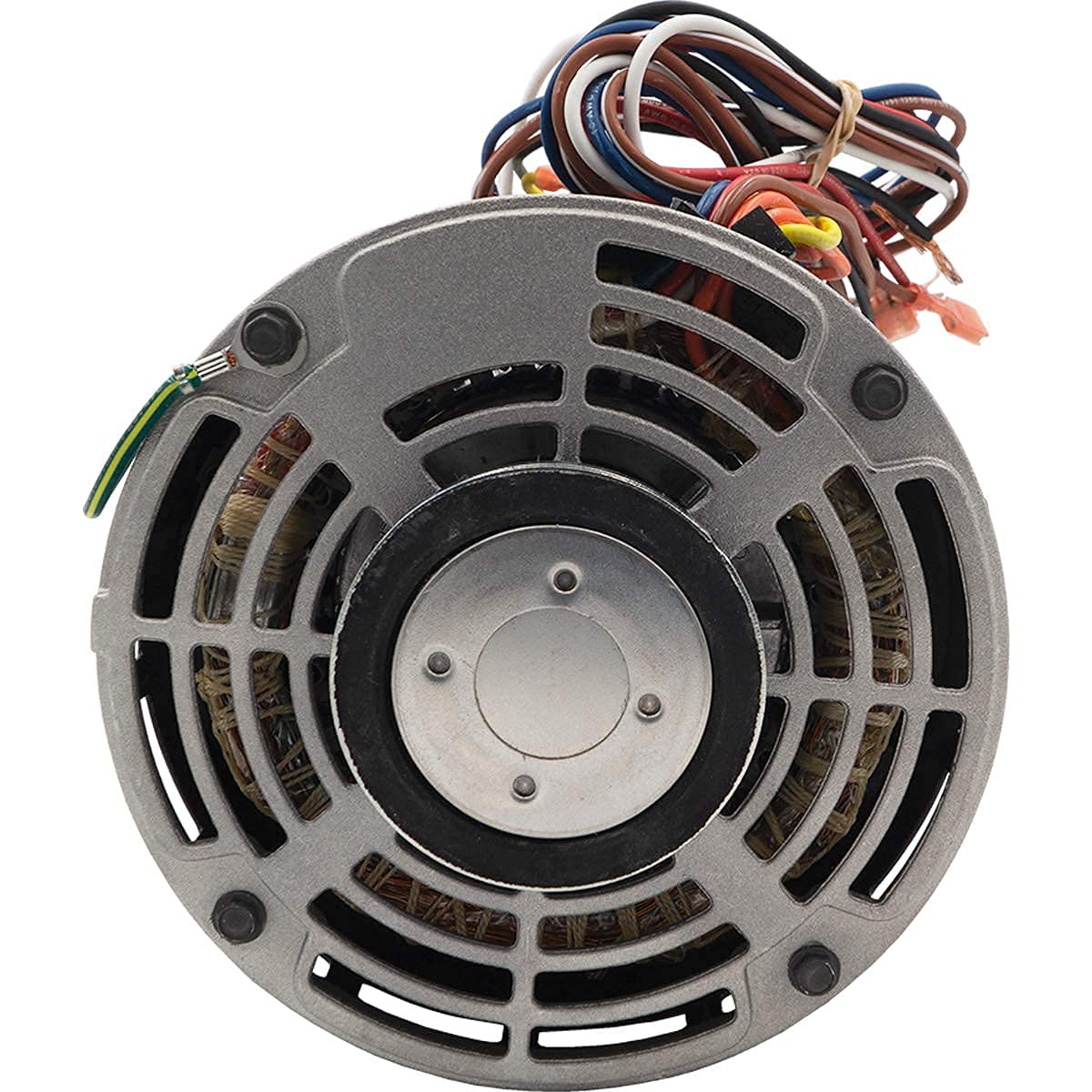

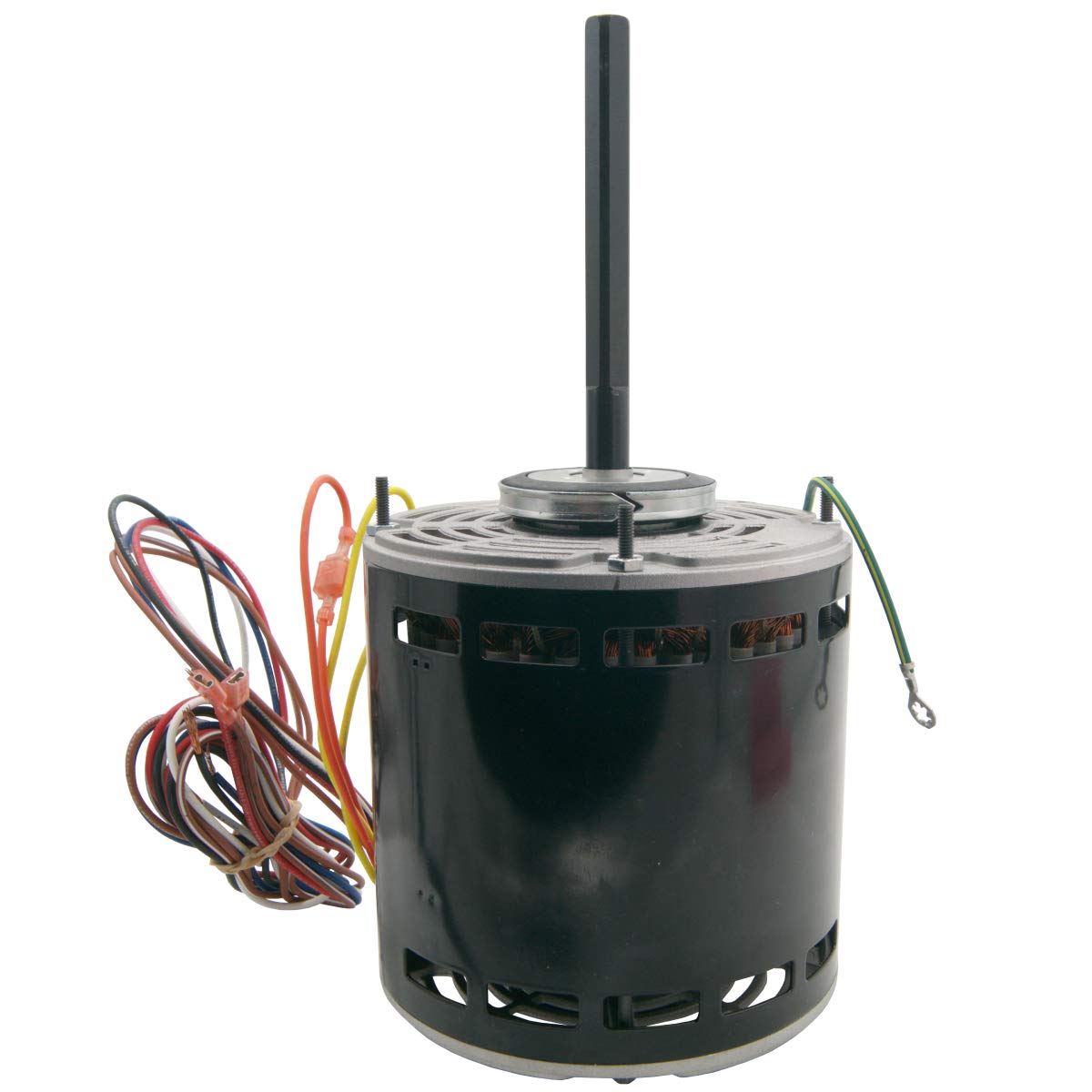

W51-34BJA3-02 HVAC Blower Motor with 15/370 Single Oval Capacitor 3/4 HP 1 Phase 3 Speed 208/230V 1075 RPM

Key features

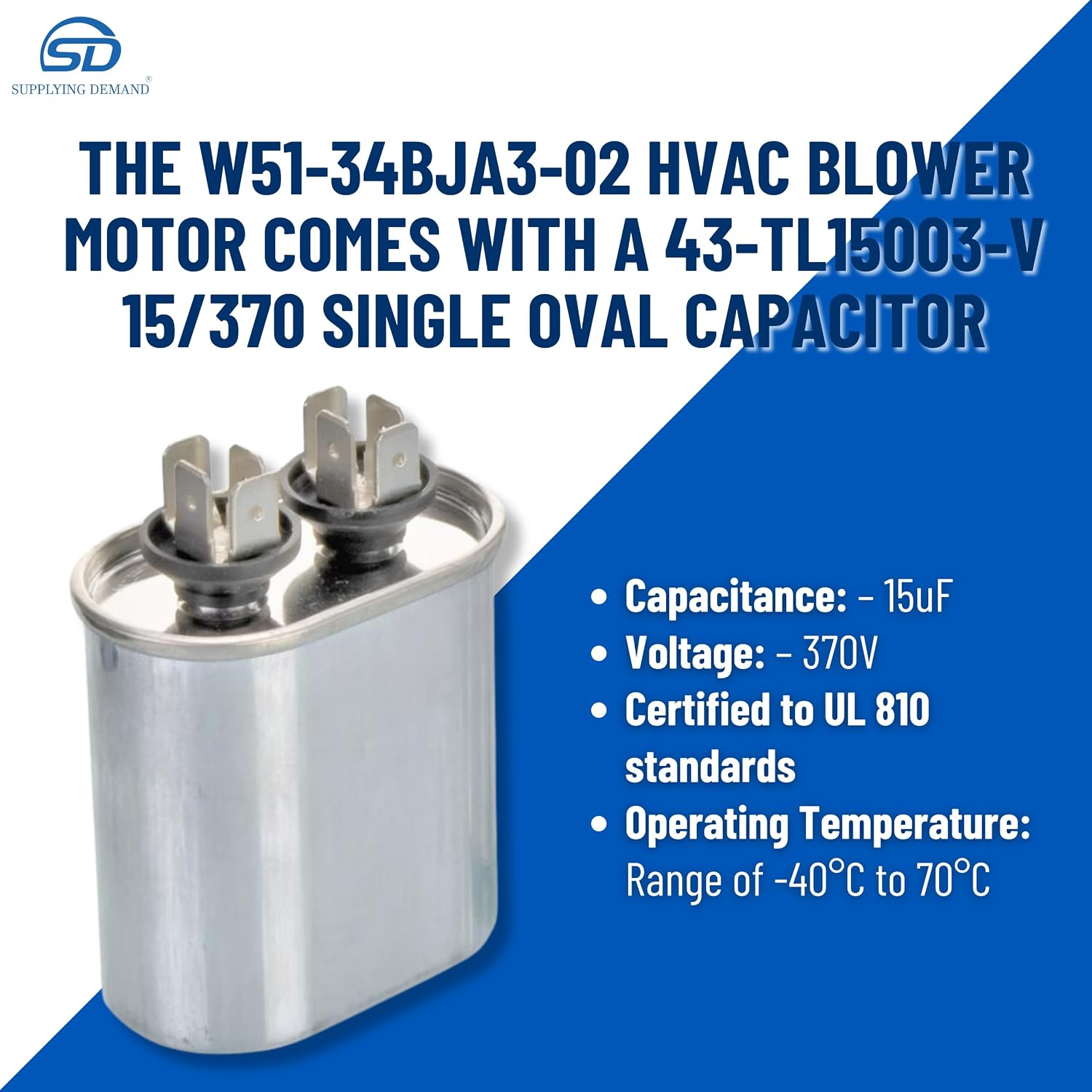

• Make sure to match up your H/P needed otherwise installing a lower H/P motor will cause it to overheat and not work properly | This motor comes with a single run capacitor | It is recommended to replace the capacitor when installing the new motor

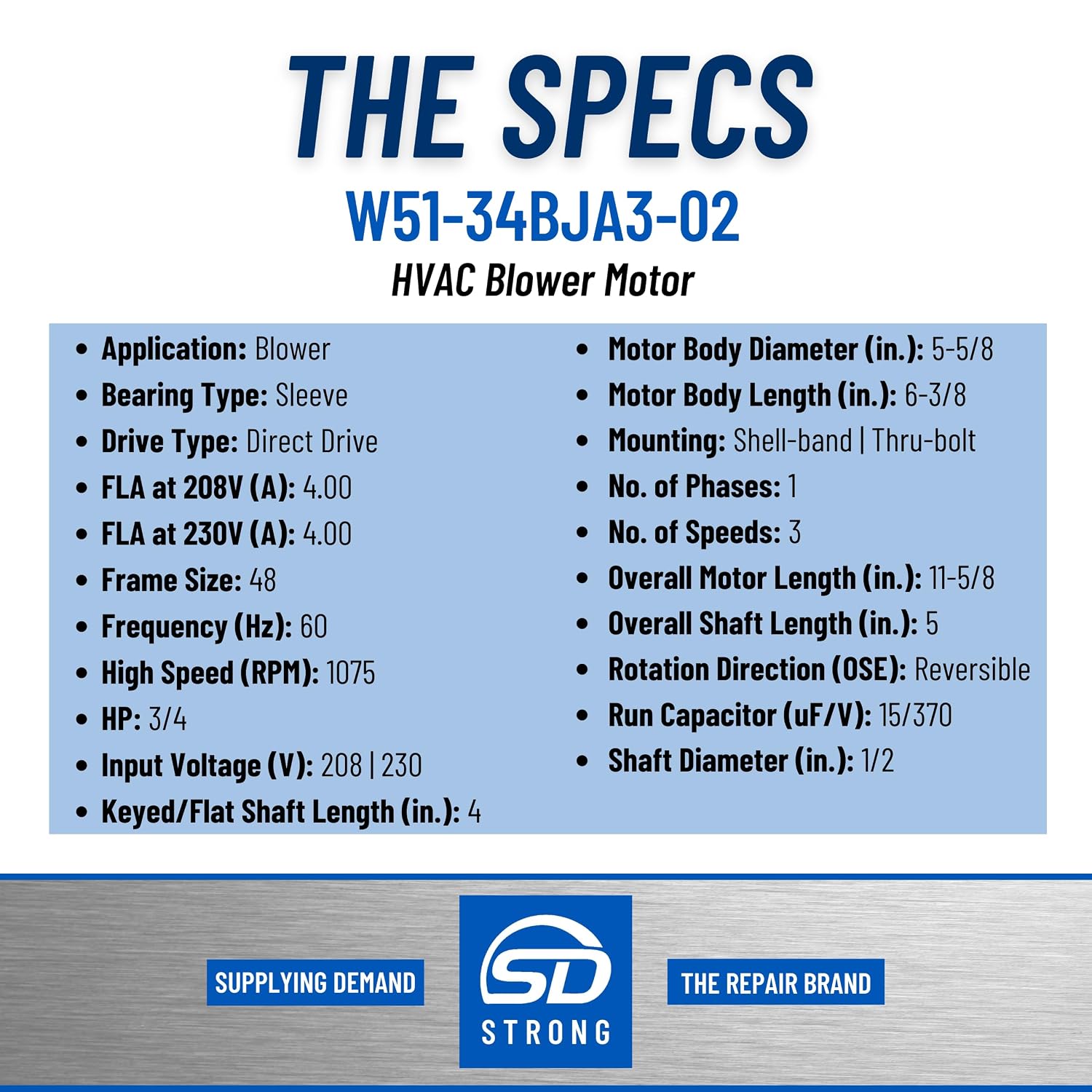

• Fits models 8905, 10590, WG840590, FD1076, and 43590 | Application: Blower | Bearing type: Sleeve | Drive type: Direct drive | FLA at 208V (A): 4.00 | FLA at 230V (A): 4.00 | Frame size: 48 | Frequency (Hz): 60 | High speed (RPM): 1075 | HP: 3/4 | Input voltage (V): 208/230

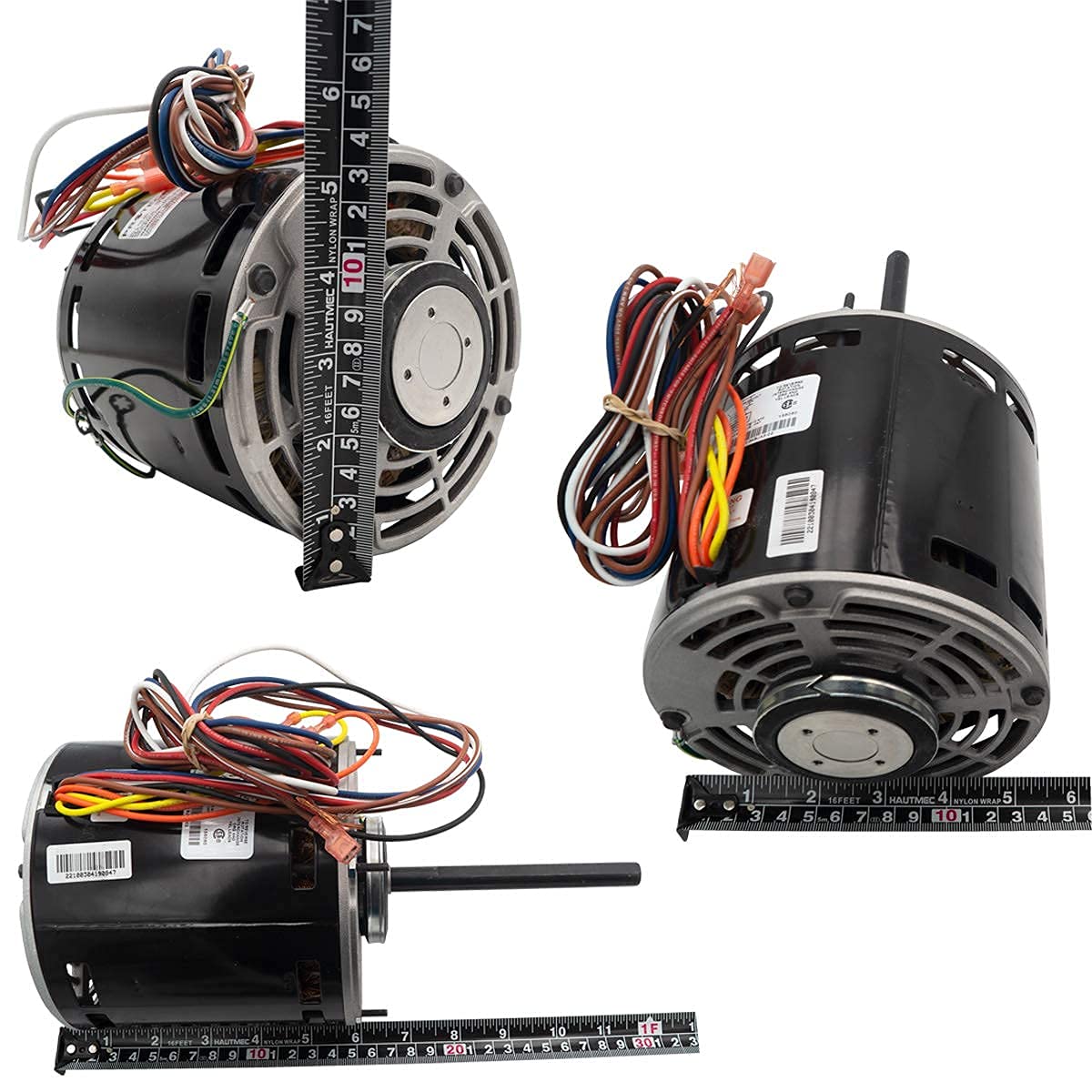

• Keyed/Flat shaft length (inch): 4 | Motor body diameter (inch): 5-5/8 | Motor body length (inch): 6-5/8 | Mounting: Shell-band, thru-bolt | Number of phases: 1 | Number of speeds: 3 (1075/950/850 ) | Overall motor length (inch): 11-5/8 | Overall shaft length (inch): 5 | Rotation direction (OSE): Reversible | Run capacitor (uF/V): 15/370 | Shaft diameter (inch): 1/2
• Heating, ventilation, air conditioning or refrigeration parts and accessories should only be installed by qualified technicians.
• Supplying Demand replacement parts are compatible with Major Brands, but you should always verify fitment with your specific application.

Free shipping included. 30-day hassle-free returns.
