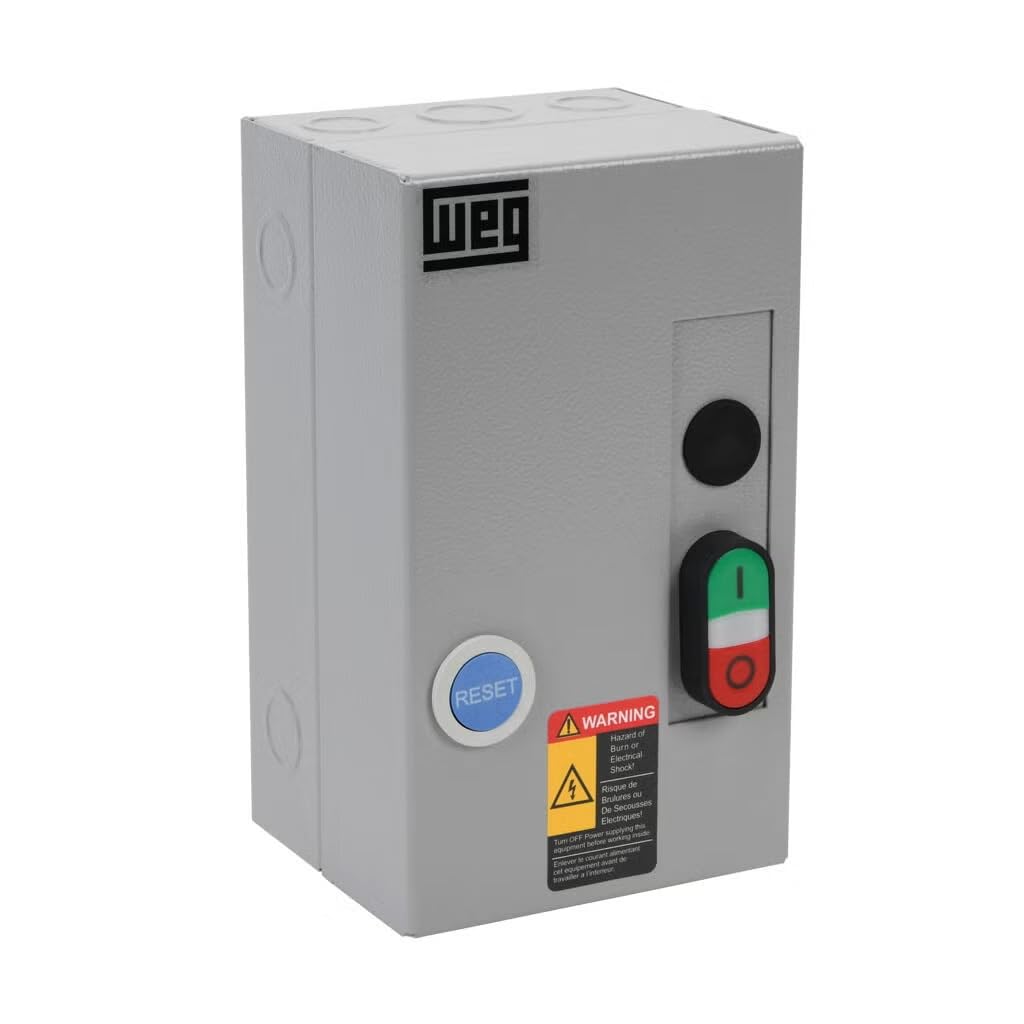

WEG Electric ESWS-B18D15A-RM32 18A 2-Pole Non-Combination Motor Starter NEMA 1

Key features

• NON-COMBINATION MOTOR STARTER: WEG Electric ESWS series starter rated at 18A with a 600 VAC voltage rating and 3HP horsepower capacity.
• COIL VOLTAGE & OVERLOAD PROTECTION: Operates on 120 VAC (50/60Hz) coil voltage with bi-metallic overload protection and an adjustable full load amperage range of 11.0-17.0A.
• ELECTRICAL SPECIFICATIONS: Features 2-pole design with (2) N.O. power poles, (1) N.O./(1) N.C. auxiliary contacts, Trip Class 10, and 5kA SCCR rating.
• SAFETY & COMPLIANCE: UL 508 rated with phase loss sensitivity, NEMA 1 wall-mount enclosure, and screw terminal connections for secure installation.
• INCLUDES START/STOP/RESET CONTROLS: Comes complete with start, stop, and reset pushbuttons conveniently mounted on the enclosure for easy operation.

The WEG Electric ESWS Series Non-Combination Motor Starter is a reliable and robust solution for controlling and protecting electric motors in industrial and commercial applications. Rated at 18A with a 600 VAC voltage rating and 3 horsepower capacity, this starter is built to handle demanding workloads. It features a 120 VAC (50/60Hz) coil voltage and a bi-metallic overload relay with an adjustable full load amperage range of 11.0–17.0A, providing precise motor protection. The 2-pole design includes two normally open power poles and auxiliary contacts (1 N.O./1 N.C.), along with Trip Class 10 protection and phase loss sensitivity for added reliability. With a 5kA SCCR rating and UL 508 listing, this unit meets stringent safety standards. Housed in a NEMA 1 wall-mount enclosure with screw terminal connections, it is well-suited for indoor installations. Conveniently included start, stop, and reset pushbuttons make operation straightforward and efficient.

Free shipping included. 30-day hassle-free returns.
