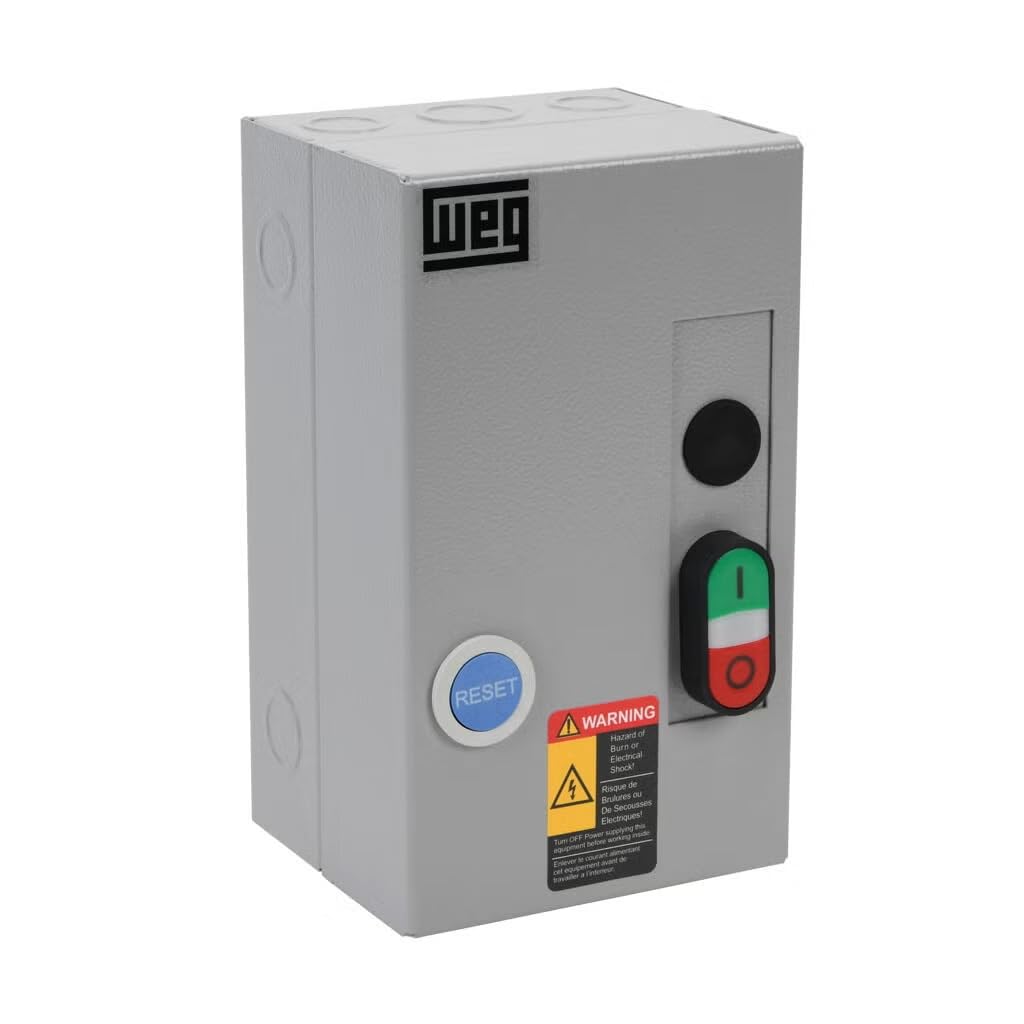

WEG Electric ESWS-B9D15A-RM26 9A 2-Pole Non-Combination Motor Starter NEMA 1

Key features

• NON-COMBINATION MOTOR STARTER: WEG Electric ESWS series starter rated at 9A with a 600 VAC voltage rating and 1/3 HP horsepower rating.
• COIL VOLTAGE & OVERLOAD PROTECTION: Features a 120 VAC (50/60Hz) coil voltage and bi-metallic overload protection with a 2.8-4.0A adjustable full load amperage range.
• RELIABLE CONTACTS & TRIP CLASS: Equipped with 2-pole (2) N.O. power poles, (1) N.O./(1) N.C. auxiliary contacts, Trip Class 10, and phase loss sensitivity.
• NEMA 1 ENCLOSURE & RATINGS: Wall-mounted NEMA 1 enclosure with screw terminal connections, UL 508 rated, and a 5kA SCCR rating for dependable performance.
• INCLUDES PUSHBUTTONS: Comes complete with start, stop, and reset pushbuttons for convenient and straightforward motor control operation.

The WEG Electric ESWS Series Non-Combination Motor Starter is a reliable and robust solution for controlling and protecting electric motors in industrial and commercial applications. Rated at 9A with a 120 VAC (50/60Hz) coil voltage and a 600 VAC voltage rating, this 2-pole starter is built to handle demanding environments with ease. The bi-metallic overload protection features an adjustable full load amperage range of 2.8-4.0A, providing precise motor protection tailored to your specific needs. With a Trip Class 10 rating and phase loss sensitivity, it offers dependable safeguarding against motor damage. The unit carries a UL 508 rating and a 5kA SCCR rating, ensuring compliance with industry standards. Housed in a NEMA 1 wall-mount enclosure with screw terminal connections, installation is straightforward and secure. Conveniently included start, stop, and reset pushbuttons make operation simple and intuitive right out of the box. Auxiliary contacts of (1) N.O./(1) N.C. provide added flexibility for control circuit integration.
