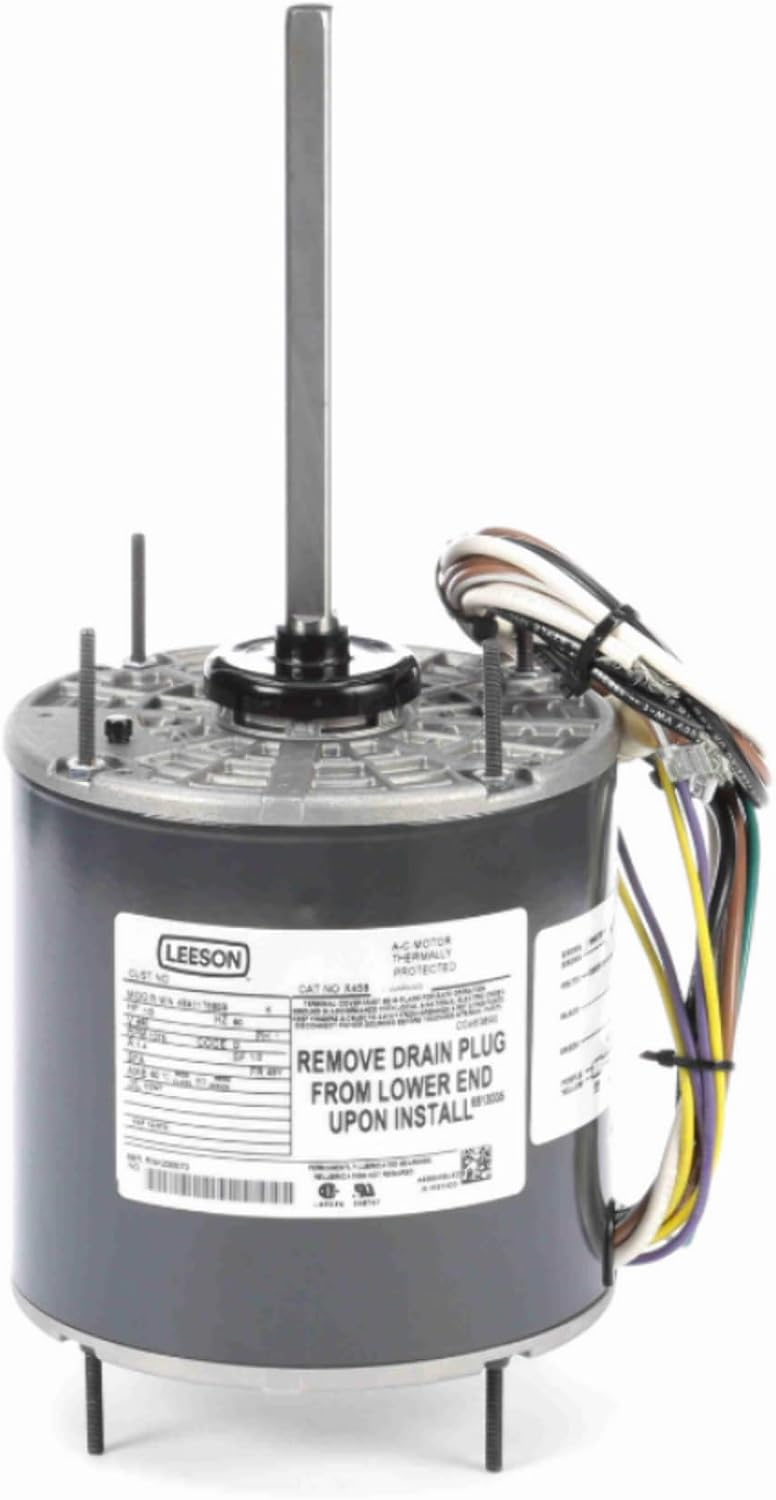

X458, Condenser Fan Motor, 0.50 HP, 1 Ph, 60 Hz, 460 V, 1075 RPM, 48Y Frame, TEAO

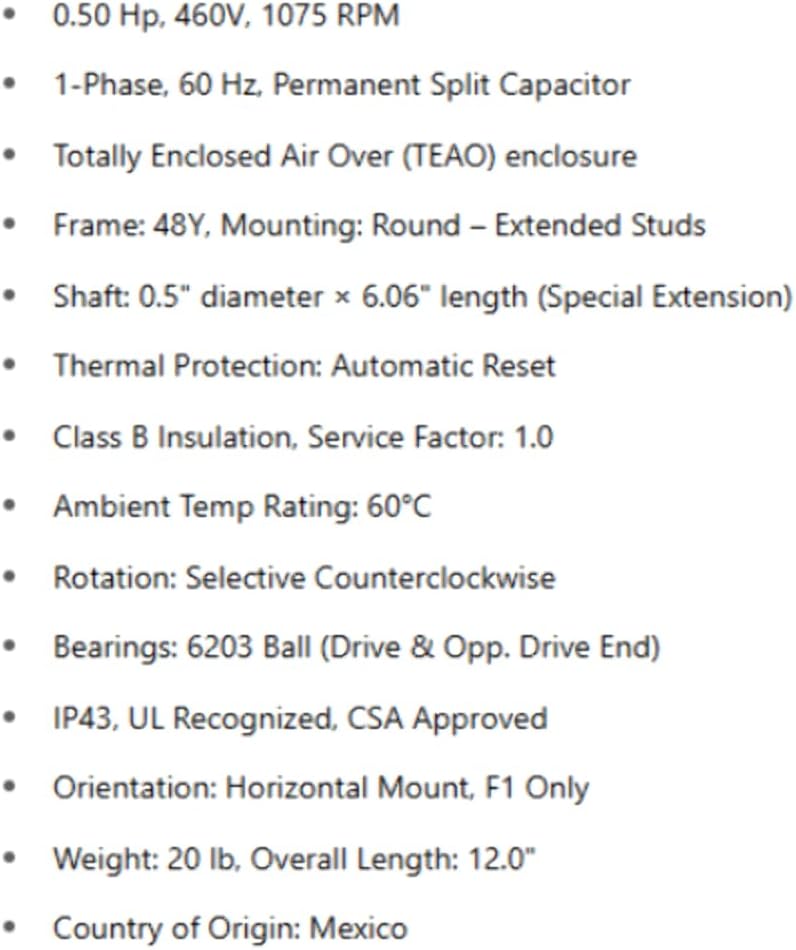

Key features

• 0.50 Hp, 460V, 1075 RPM
• 1-Phase, 60 Hz, Permanent Split Capacitor
• Totally Enclosed Air Over (TEAO) enclosure Frame: 48Y, Mounting: Round – Extended Studs
• Shaft: 0.5" diameter × 6.06" length (Special Extension)
• Rotation: Selective Counterclockwise

X458, LEESON Condenser Fan Motor, 0.50 HP, 1 Ph, 60 Hz, 460 V, 1075 RPM, 48Y Frame, TEAO0.50 Hp, 460V, 1075 RPM0.50 Hp, 460V, 1075 RPM1-Phase, 60 Hz, Permanent Split Capacitor1-Phase, 60 Hz, Permanent Split CapacitorTotally Enclosed Air Over (TEAO) enclosureTotally Enclosed Air Over (TEAO) enclosureFrame: 48Y, Mounting: Round – Extended StudsFrame: 48Y, Mounting: Round – Extended StudsShaft: 0.5" diameter × 6.06" length (Special Extension)Shaft: 0.5" diameter × 6.06" length (Special Extension)Thermal Protection: Automatic ResetThermal Protection: Automatic ResetClass B Insulation, Service Factor: 1.0Class B Insulation, Service Factor: 1.0Ambient Temp Rating: 60°CAmbient Temp Rating: 60°CRotation: Selective CounterclockwiseRotation: Selective CounterclockwiseBearings: 6203 Ball (Drive & Opp. Drive End)Bearings: 6203 Ball (Drive & Opp. Drive End)IP43, UL Recognized, CSA ApprovedIP43, UL Recognized, CSA ApprovedOrientation: Horizontal Mount, F1 OnlyOrientation: Horizontal Mount, F1 OnlyWeight: 20 lb, Overall Length: 12.0"Weight: 20 lb, Overall Length: 12.0"Country of Origin: MexicoCountry of Origin: MexicoAutomatic reset thermal protector prevents overheating.Automatic reset thermal p

Free shipping included. 30-day hassle-free returns.
