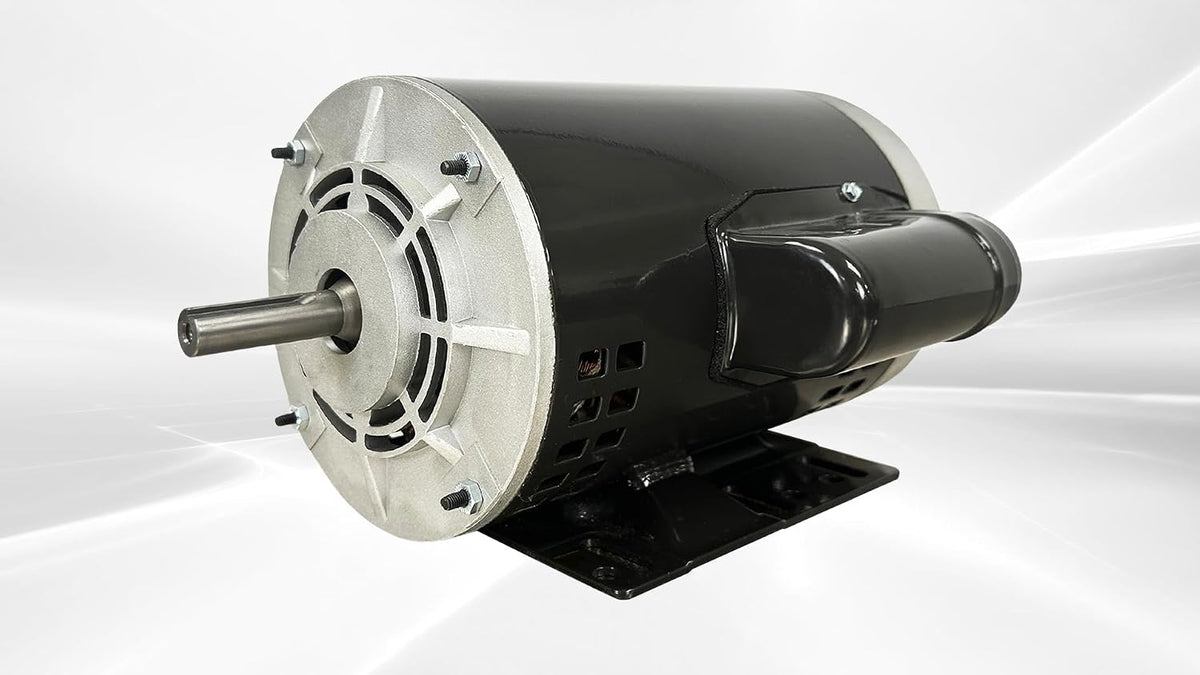

1.5 HP General Purpose Electric Motor 1760 RPM CX56HB05C01

Key features

• POWER & SPEED: Delivers 1.5 HP at 1760 RPM, making it well-suited for a wide range of general purpose applications.
• DUAL VOLTAGE COMPATIBILITY: Operates at 115V or 208-230V single phase, 60Hz, offering flexible installation options for various electrical setups.
• 56 FRAME & ODP ENCLOSURE: Standard 56 frame design with an Open Drip-Proof enclosure ensures reliable performance and easy mounting in typical indoor environments.
• CONTINUOUS DUTY & THERMAL PROTECTION: Rated for continuous duty with automatic thermal protection and a 1.15 service factor, providing dependable long-term operation.
• LOW-MAINTENANCE BEARINGS: Features permanently lubricated ball bearings that require no relubrication, reducing downtime and upkeep for demanding applications.

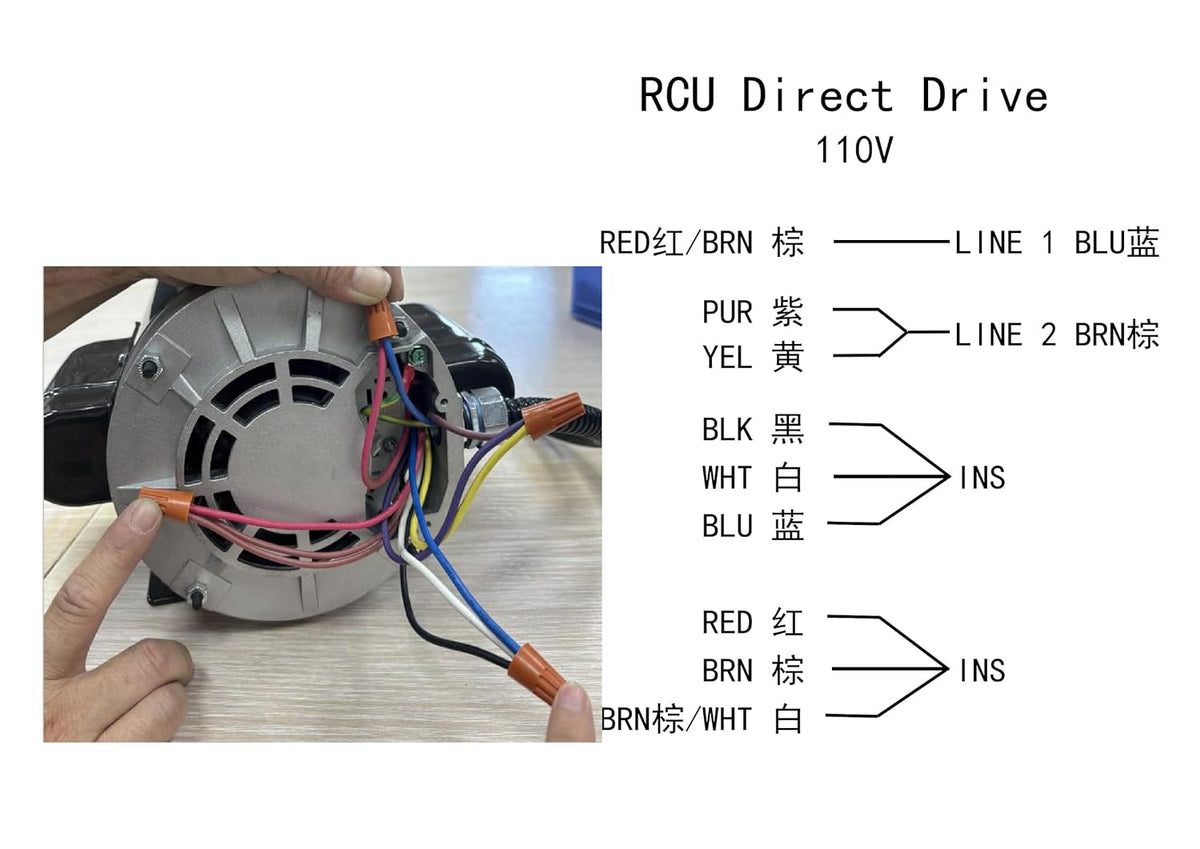

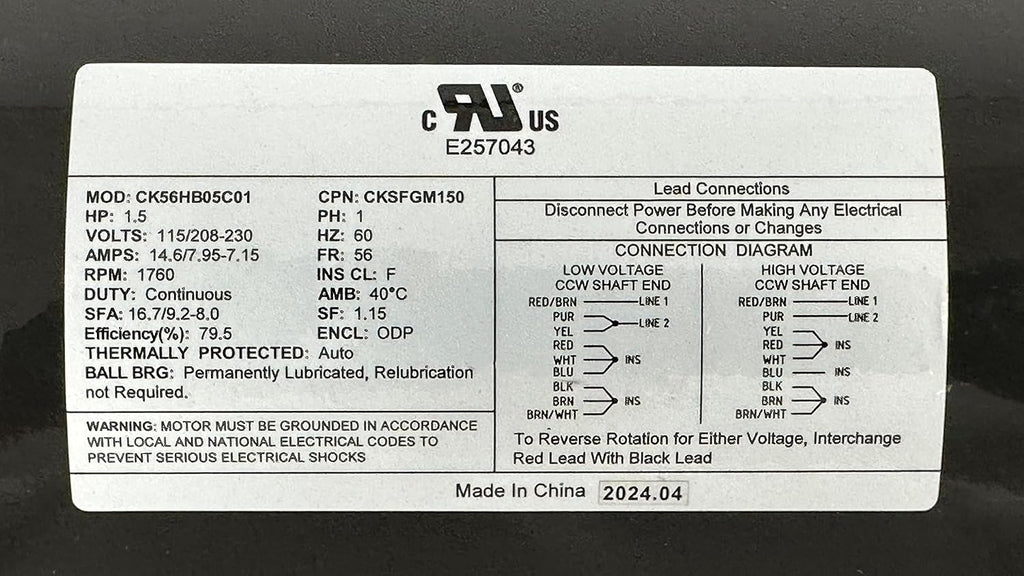

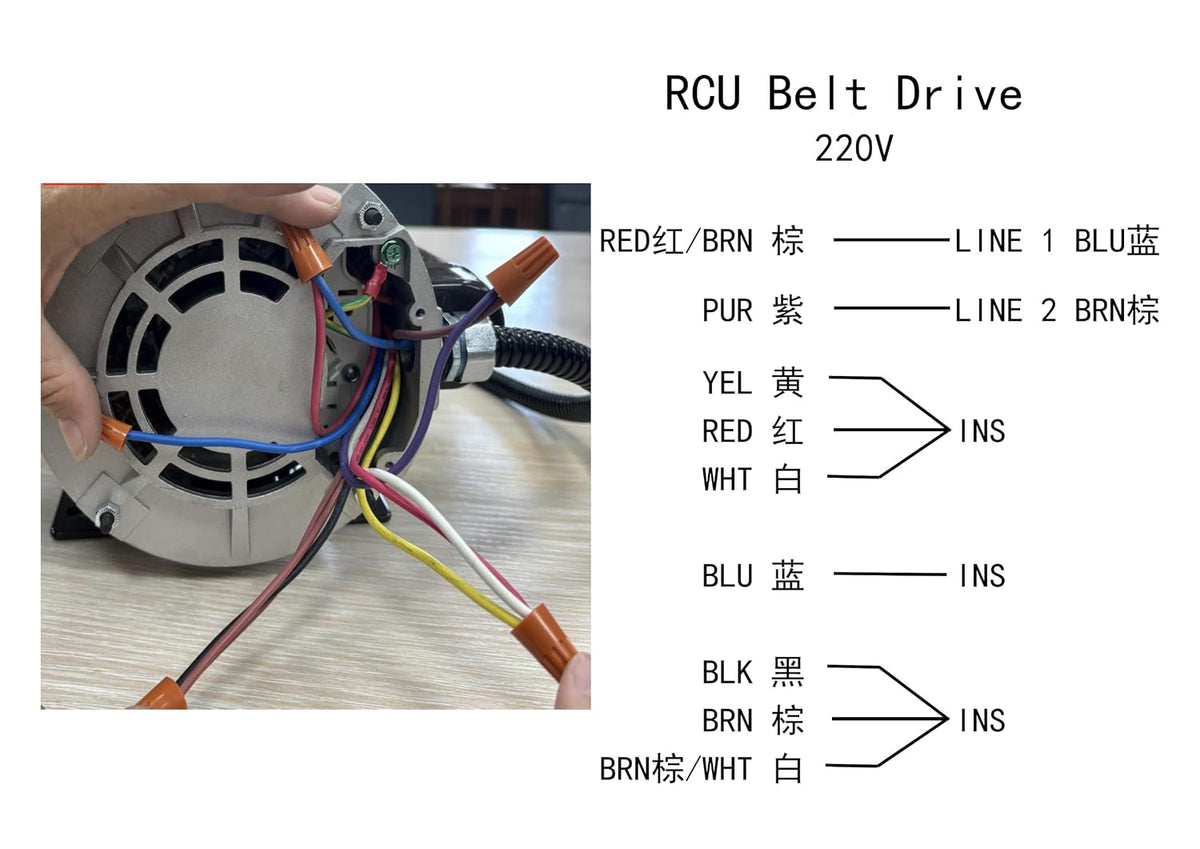

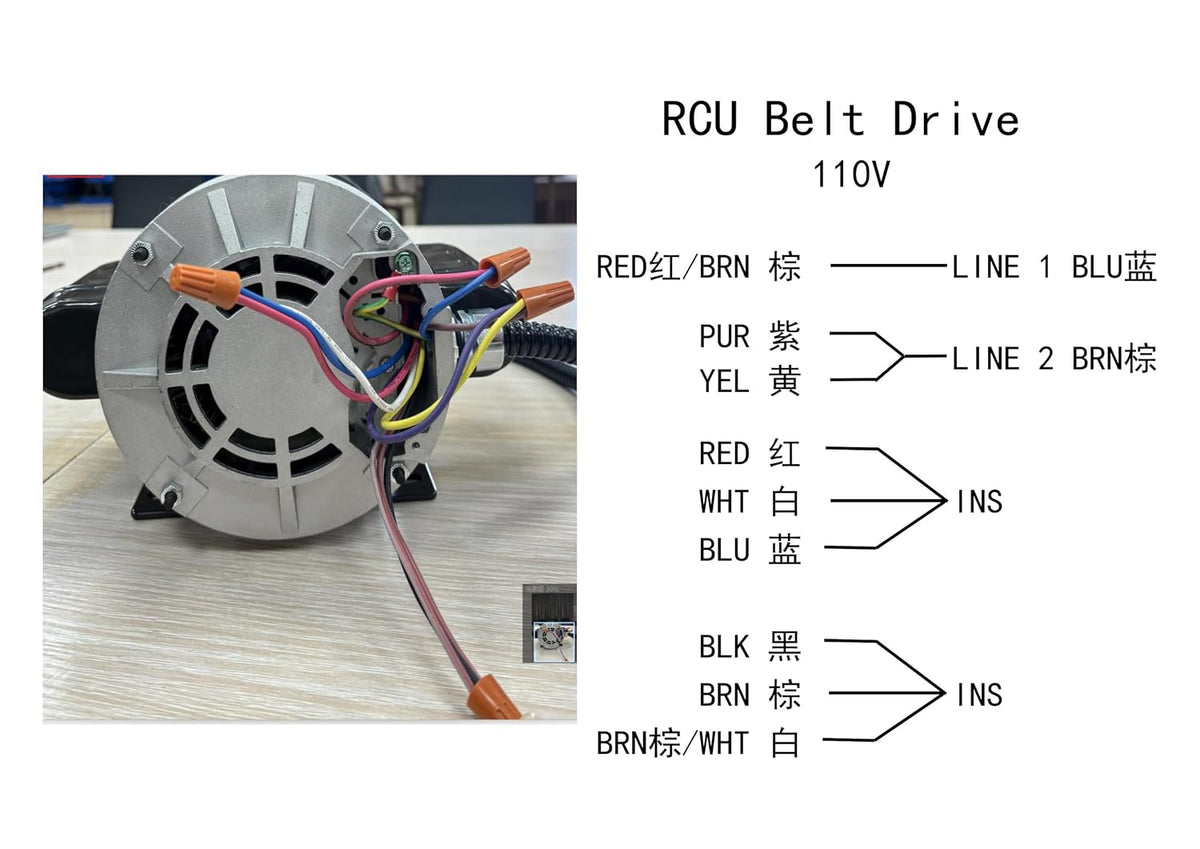

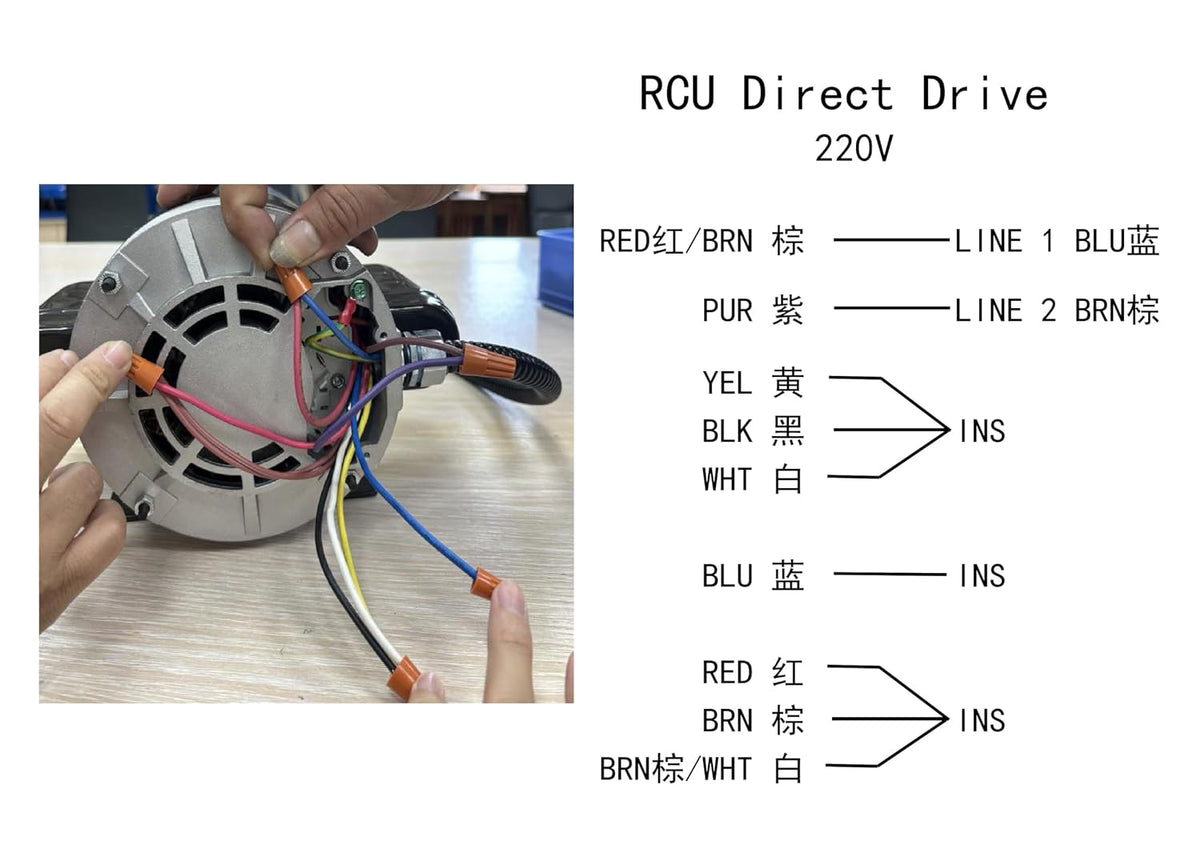

This 1.5 HP General Purpose Electric Motor is a reliable and versatile solution for a wide range of industrial and commercial applications. Running at 1760 RPM with a 56 frame, it delivers consistent performance under continuous duty conditions. The motor operates on dual voltage — 115V or 208-230V — at single phase, 60 Hz, giving you flexibility for various electrical setups. With an ODP (Open Drip-Proof) enclosure, it is well-suited for indoor use in clean, dry environments. The motor features a service factor of 1.15, an insulation class of F, and an ambient temperature rating of 40°C, ensuring dependable operation even under demanding conditions. Permanently lubricated ball bearings mean no relubrication is required, reducing maintenance needs. Automatic thermal protection adds an extra layer of safety during operation. The motor is UL Listed (cULus, E257043), meeting recognized safety standards. Rotation can be reversed by interchanging the red and black leads, offering added installation flexibility. A sturdy base mount is included for secure installation.

Free shipping included. 30-day hassle-free returns.
