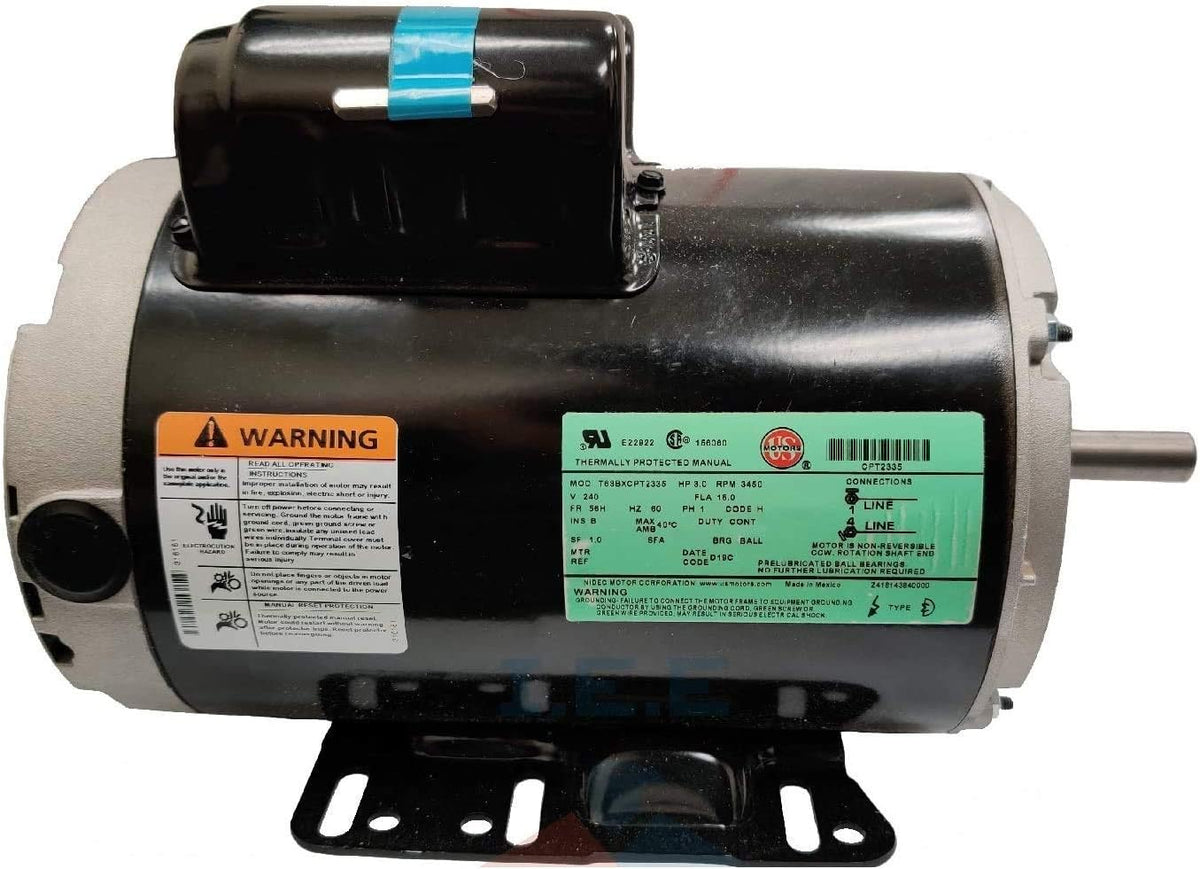

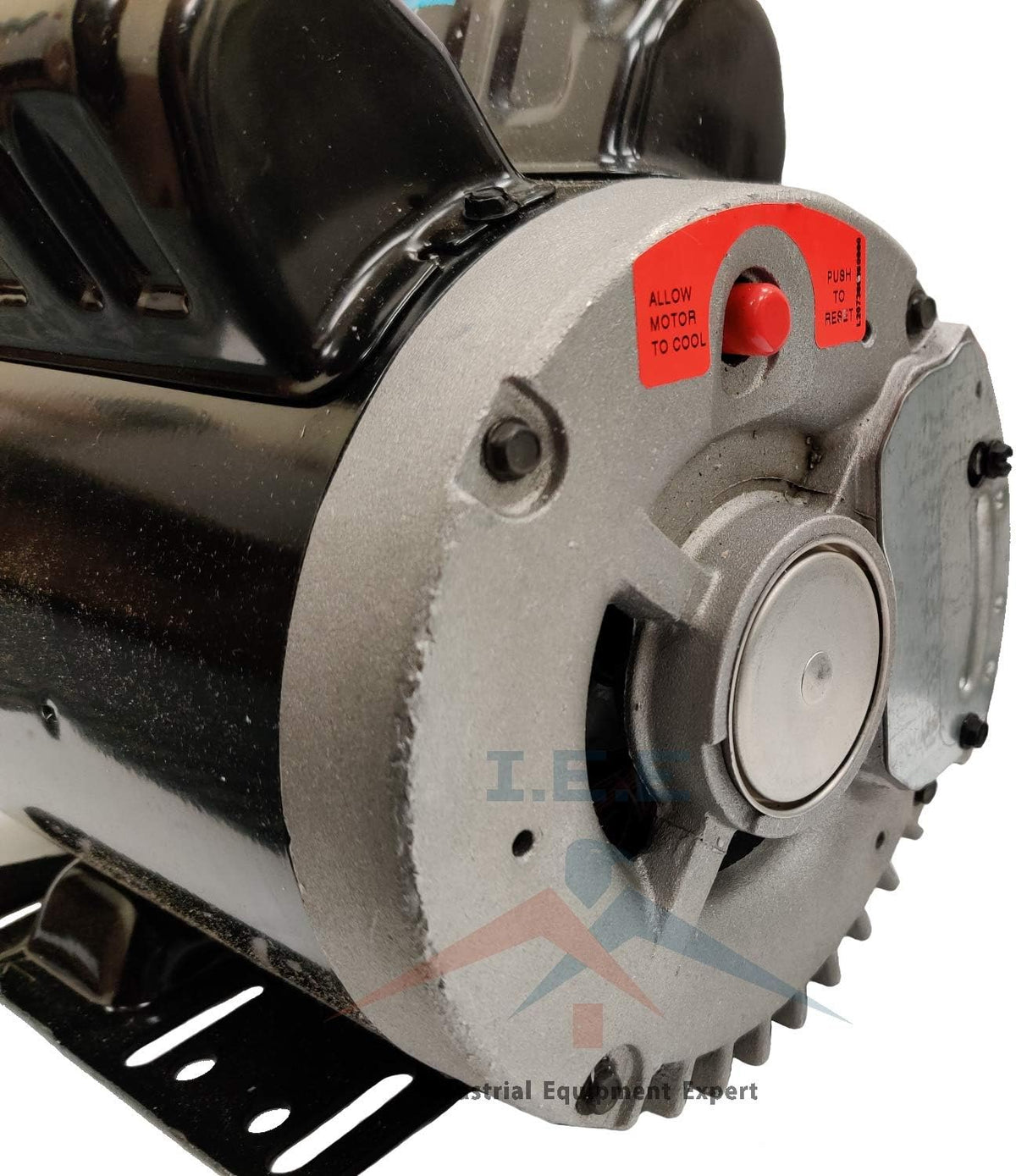

3 HP 3450 RPM Electric Motor COMPRESSOR DUTY 56 Frame 1 Phase 5/8 Shaft

Key features

• 3 HP SPL 3450 RPM, 15.0 amps 230V 60hz.
• Open Drip Proof - Ball Bearings - Service Factor 1.0
• Non-Reversible - CCW Rotation facing the shaft
• U56 Frame; NEMA 56 Frame - Flat Rigid base mount

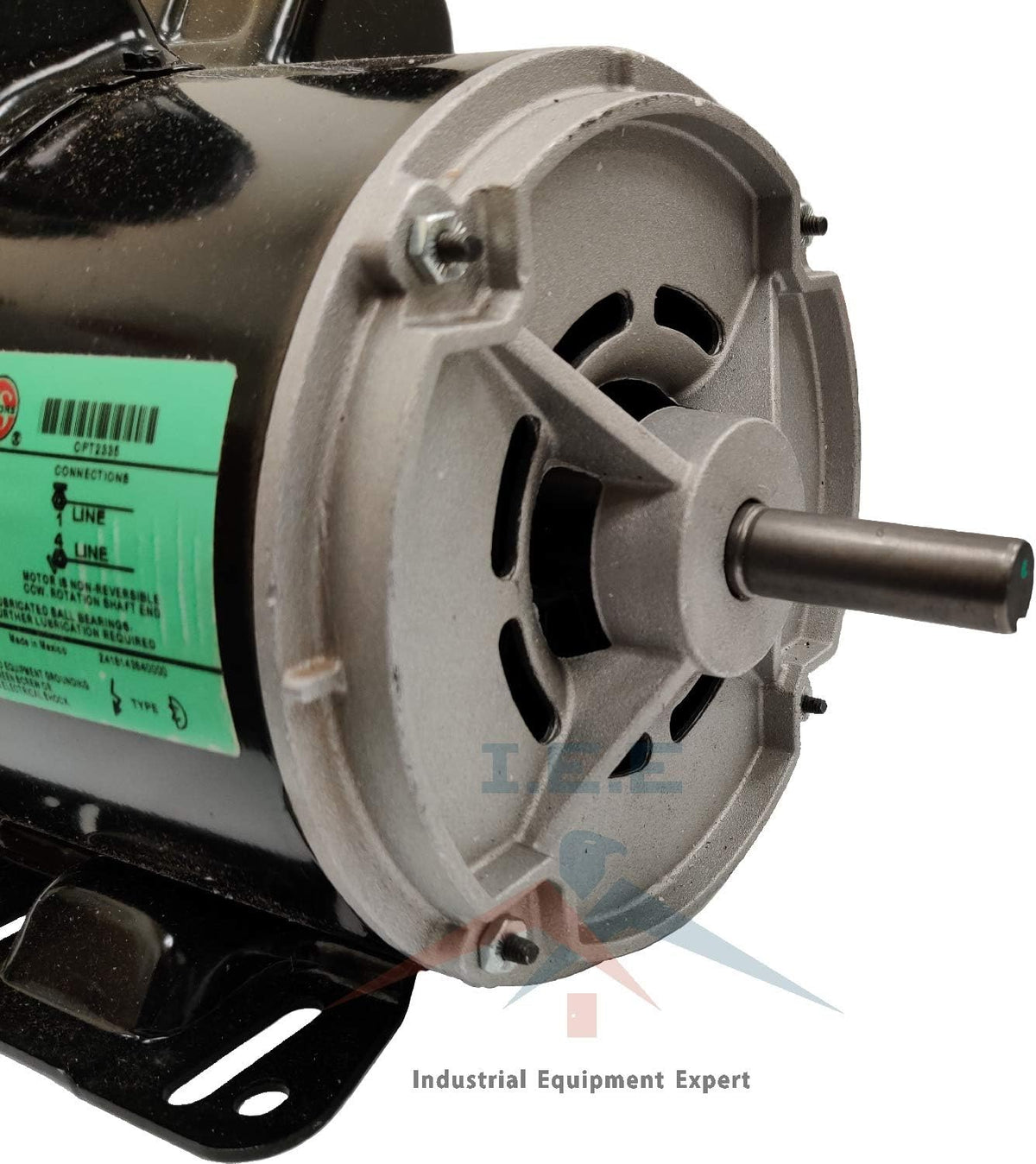

• Shaft: 5/8" diameter x 1 7/8" This replacement compressor motor is commonly used on the small "home/shop" air compressors.

3 HP SPL 3450 RPM, 15.0 amps 230V 60hz. Open Drip Proof - Ball Bearings - Service Factor 1.0 Non-Reversible - CCW Rotation facing the shaft U56 Frame; NEMA 56 Frame - Flat Rigid base mount Shaft: 5/8" diameter x 1 7/8" This replacement compressor motor is commonly used on the small "home/shop" air compressors. The motor is designed to be used with a belt driven compressor. Not to be used where the motor is part of the compressor head. 56 Frame motor has a standard 3" x 5" bolt mounting pattern. Horsepower is designated as SPL. Not to be used where the mount is a pivot type mount. Overall motor length 11.59"; Motor connection diagram on motor name plate. Capacitor Start/Capacitor Run.
 Motor has 1 year standard warranty.
