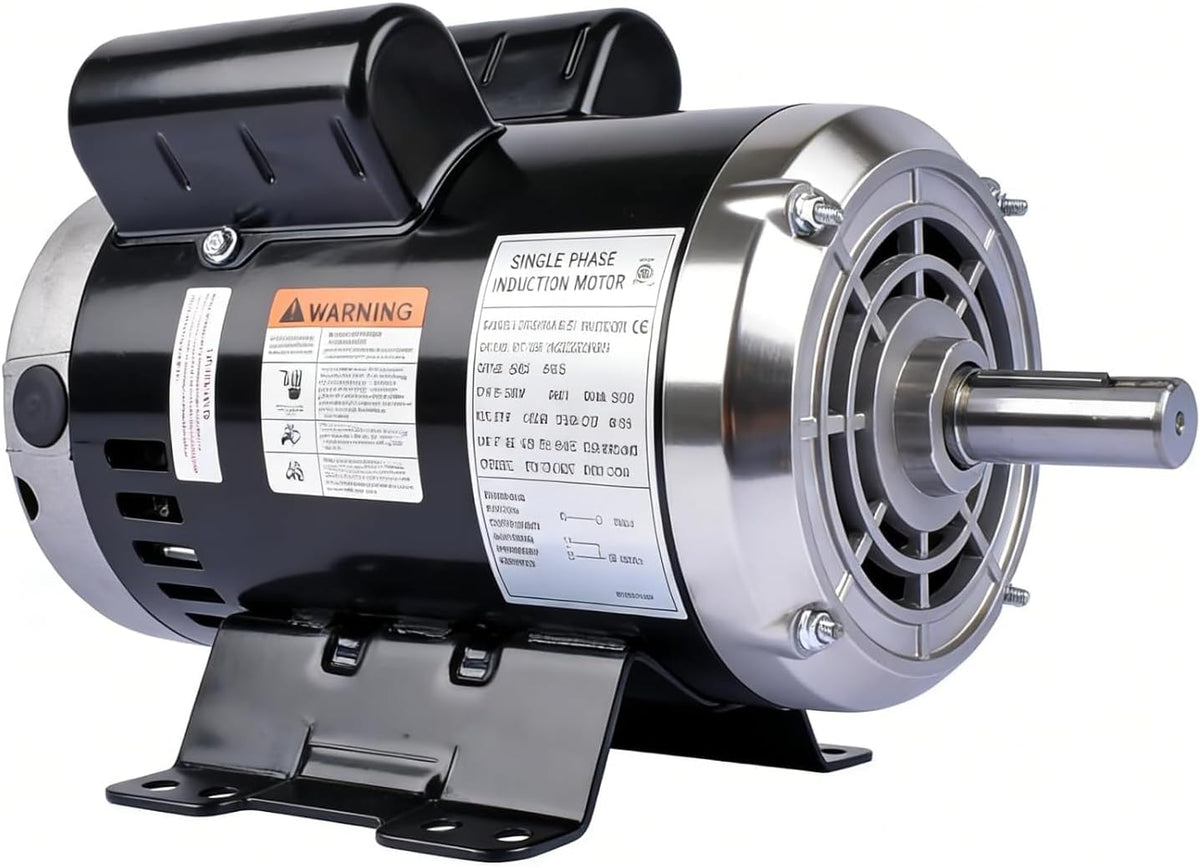

54421193 5HP Air Compressor Motor for Ingersoll Rand, Single Phase

Key features

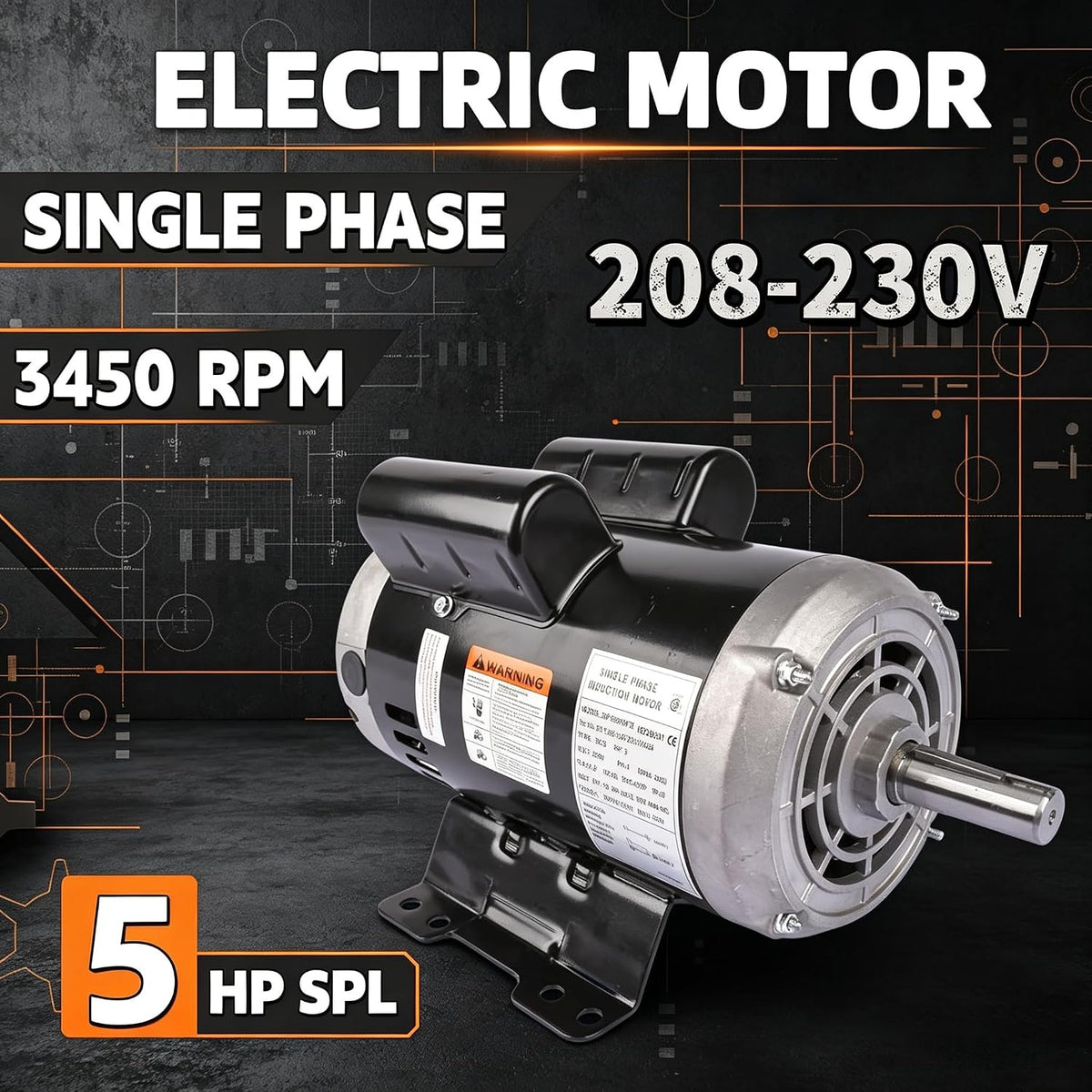

• Powerful 5HP Electric Motor: This 5HP motor delivers strong performance with 3450 RPM high-speed operation, ensuring quick starts and maximum efficiency for heavy-duty equipment. Ideal for air compressors and industrial applications requiring reliable power

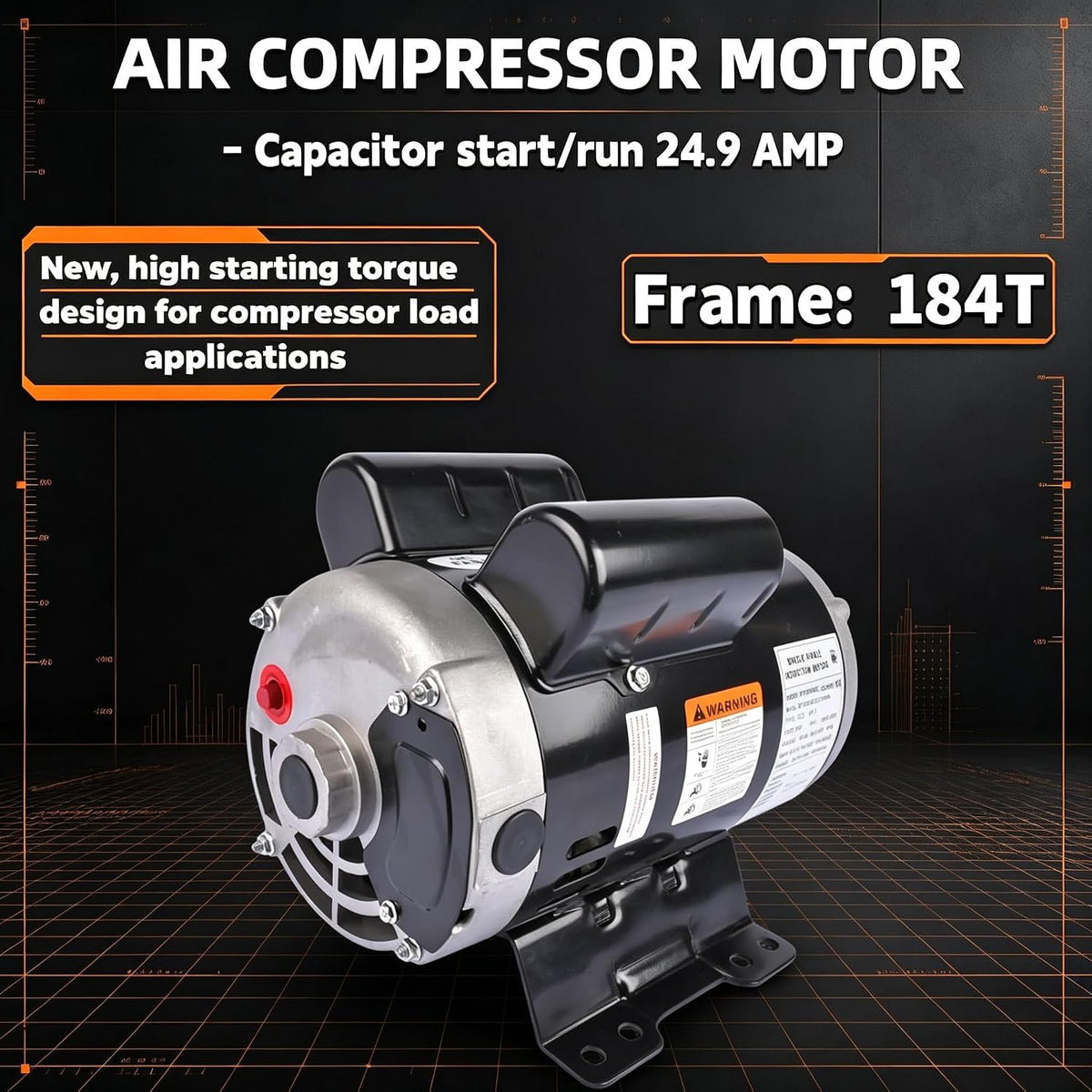

• Specifications: Power 5 HP; FLA 24.9; SFA 27.3; RPM: 3450; Frame: 184T; Shaft Size: 7/8" x 2 1/4" with Keyway; Shaft height: 4.5" (Measured to Shaft Center); Base: Flat Rigid Mounting Base; Voltage: 208-230V 60hz, 24.9 AMPS; Phase: Single Phase Service Factor: 1.15
• Part Number: 56283138, 23378805, 23220064, 54421193. Note: The air compressor motor is specially used for air compressors. Please purchase the motor according to the specific parameters you need, and professional installation is recommended

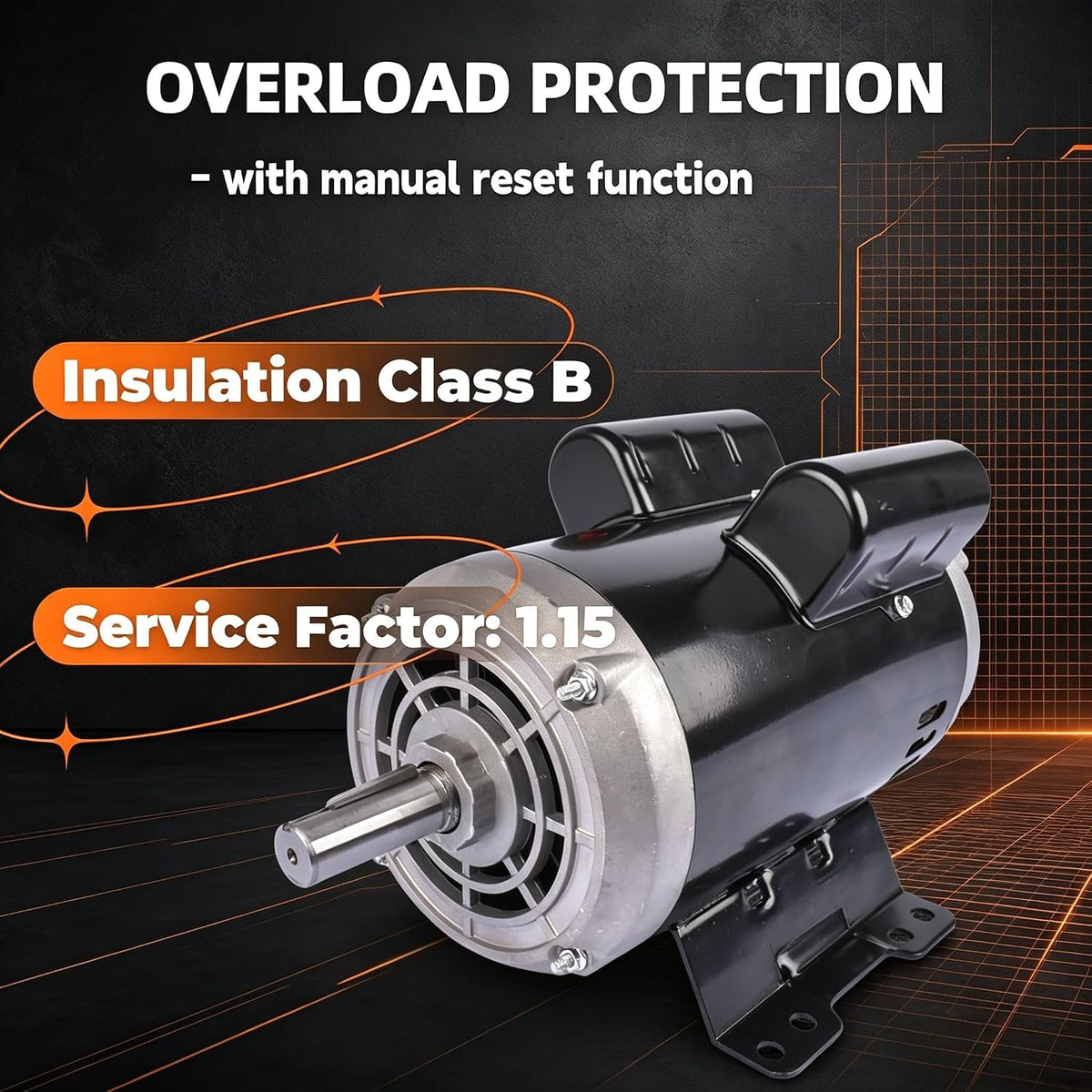

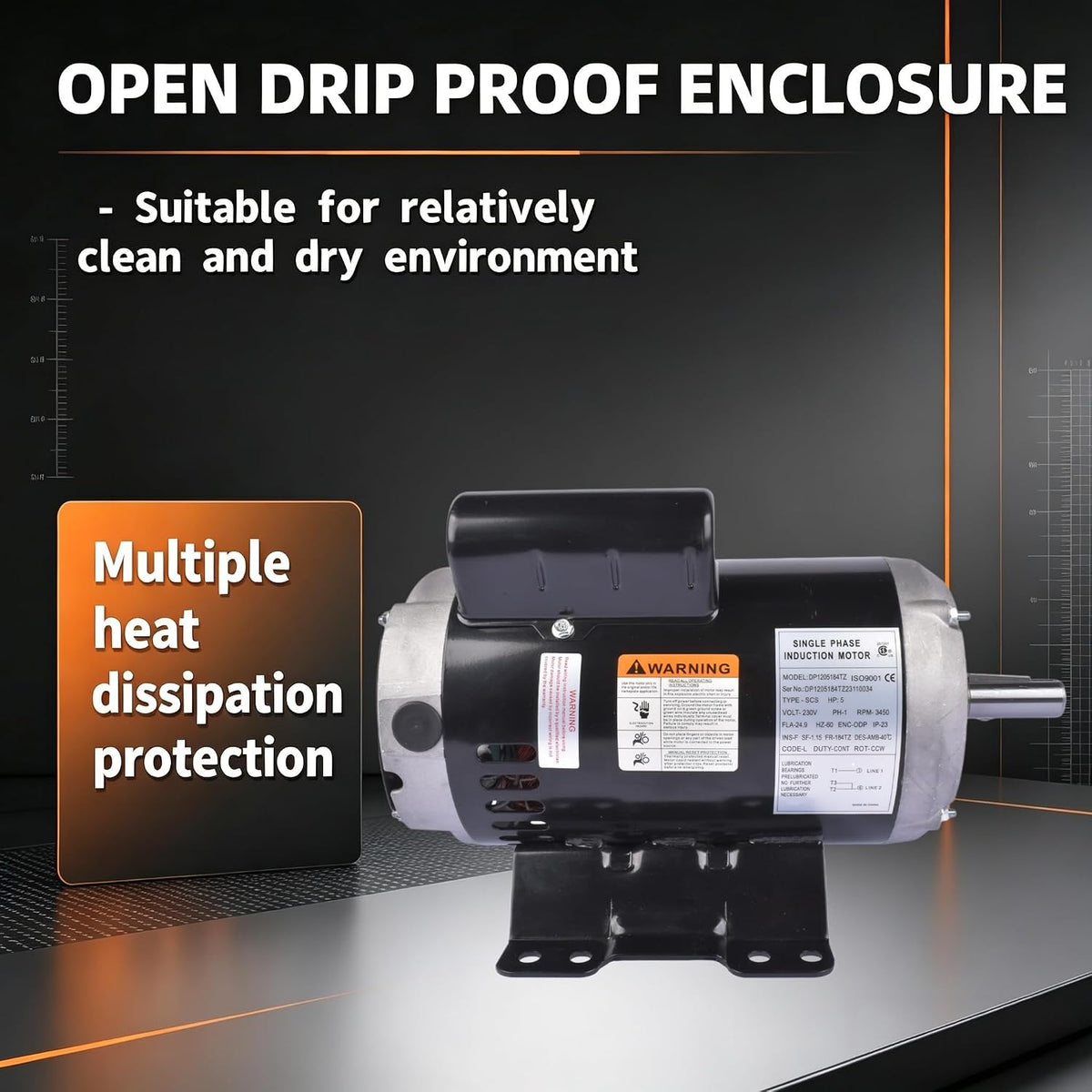

• Specificities: Insulation class B; ball bearings; open drip-proof housing; manual overload protection for relatively clean and dry environments;Rotate counterclockwise, cannot be changed
• Outstanding Durability: As a general-purpose heavy-duty motor made of iron, this motor is carefully designed to withstand long-term use and harsh environments, ensuring long-lasting durability

Free shipping included. 30-day hassle-free returns.
