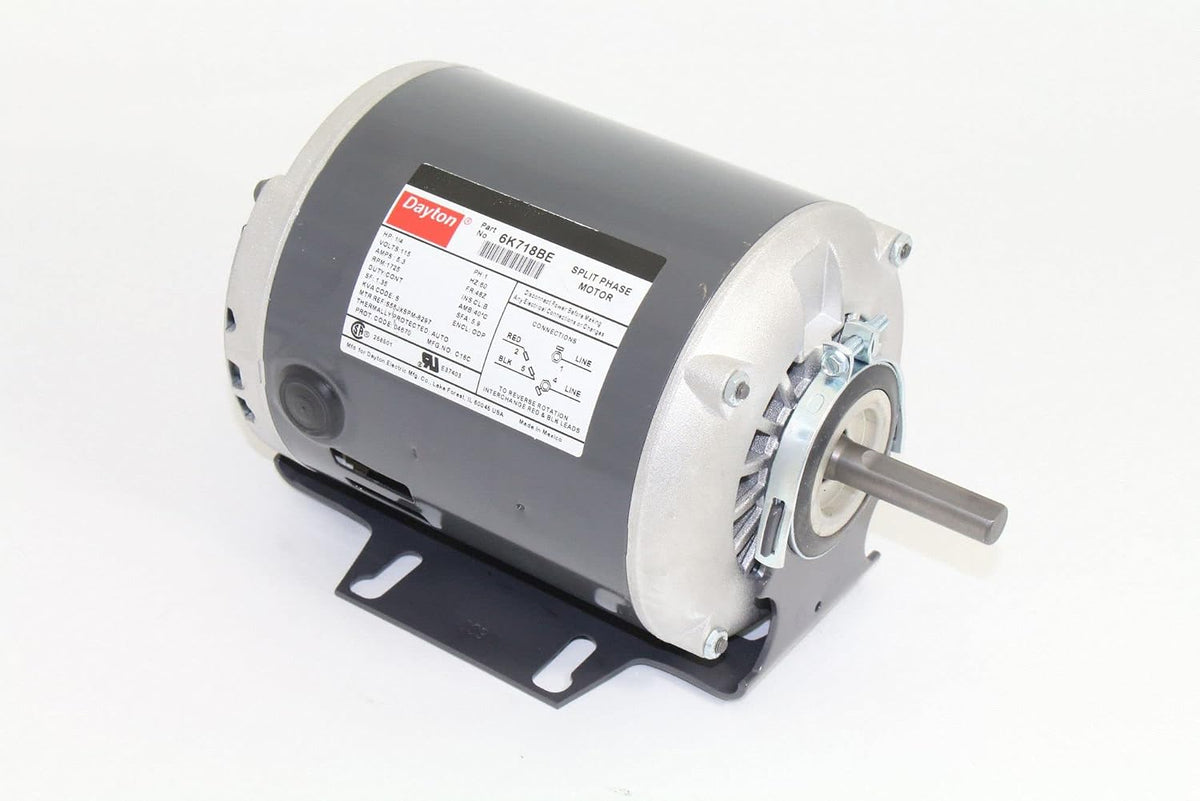

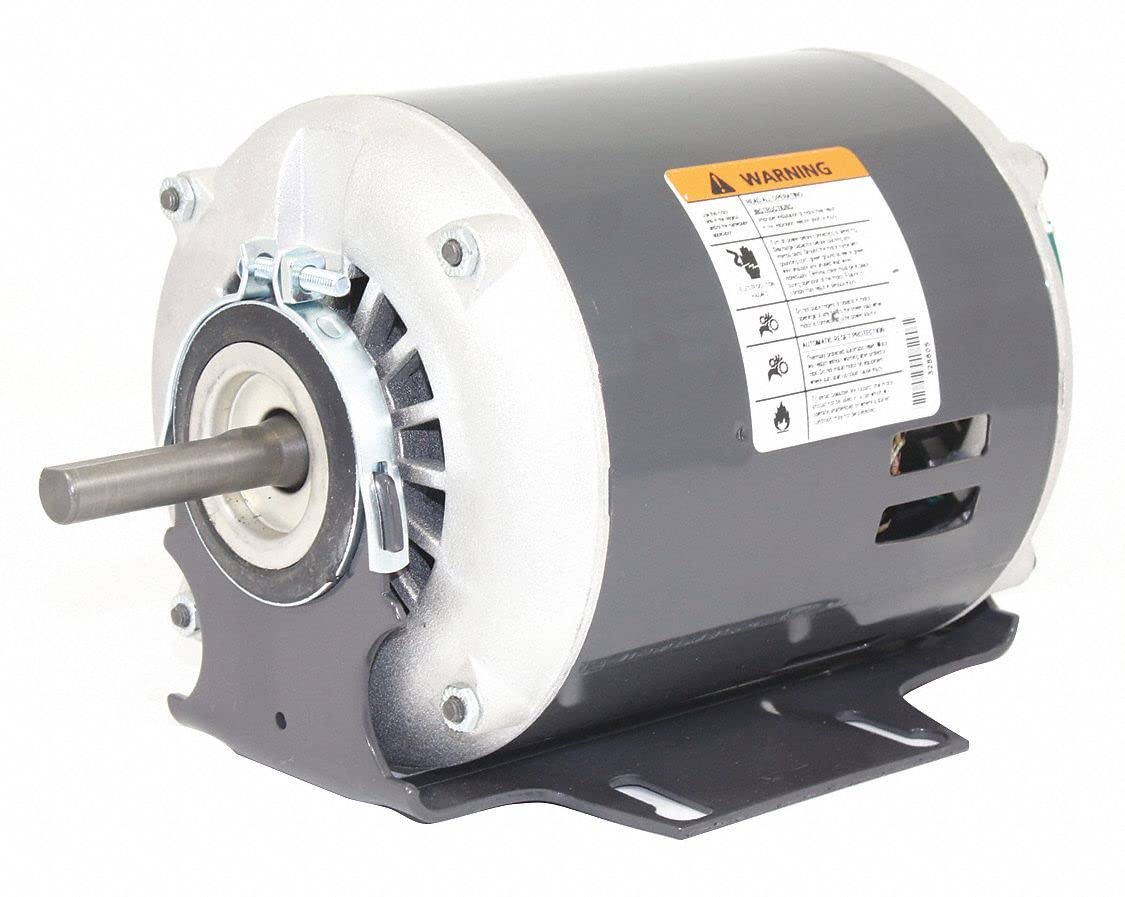

Dayton 1/4 HP General Purpose Motor,Split-Phase,1725 Nameplate RPM,Voltage 115,Frame 48Z

Key features

• Item:-General Purpose Motor
• Motor Application:-General Application
• Motor Design:-Split-Phase
• Motor Enclosure Design:-Open Dripproof
• HP:-1/4

Use this motor in clean, dry, and nonhazardous applications, including fans, blowers, pumps, printing equipment, and other business machines. Item: General Purpose Motor Motor Application: General Application Motor Design: Split-Phase Motor Enclosure Design: Open Dripproof HP: 1/4 Nameplate RPM: 1725 Frame: 48Z Voltage: 115 Hz: 60 Phase: 1 Full Load Amps: 5.3 No. of Speeds: 1 Motor Mounting Type: Cradle Base Motor Thermal Protection: Auto Ins. Class: B Motor Service Factor: 1.35 Motor Bearings: Ball Motor Frame Material: Rolled Steel Max. Ambient Temp.: 40 Degrees C Motor Shaft Rotation: CW/CCW Shaft Dia.: 1/2" Shaft Length: 1-7/8" Length Less Shaft: 7-15/16" Overall Length: 9-13/16" Motor Shaft Design: Flat RPM Range: 1701-1800 Standards: UL (E47479), CSA (156060) Duty: Continuous Motor Efficiency Group: Standard Efficient Nominal Efficiency: 52.0% Manufacturers Warranty Length: 1 yr. RPM Group: 1701-1800

Free shipping included. 30-day hassle-free returns.
