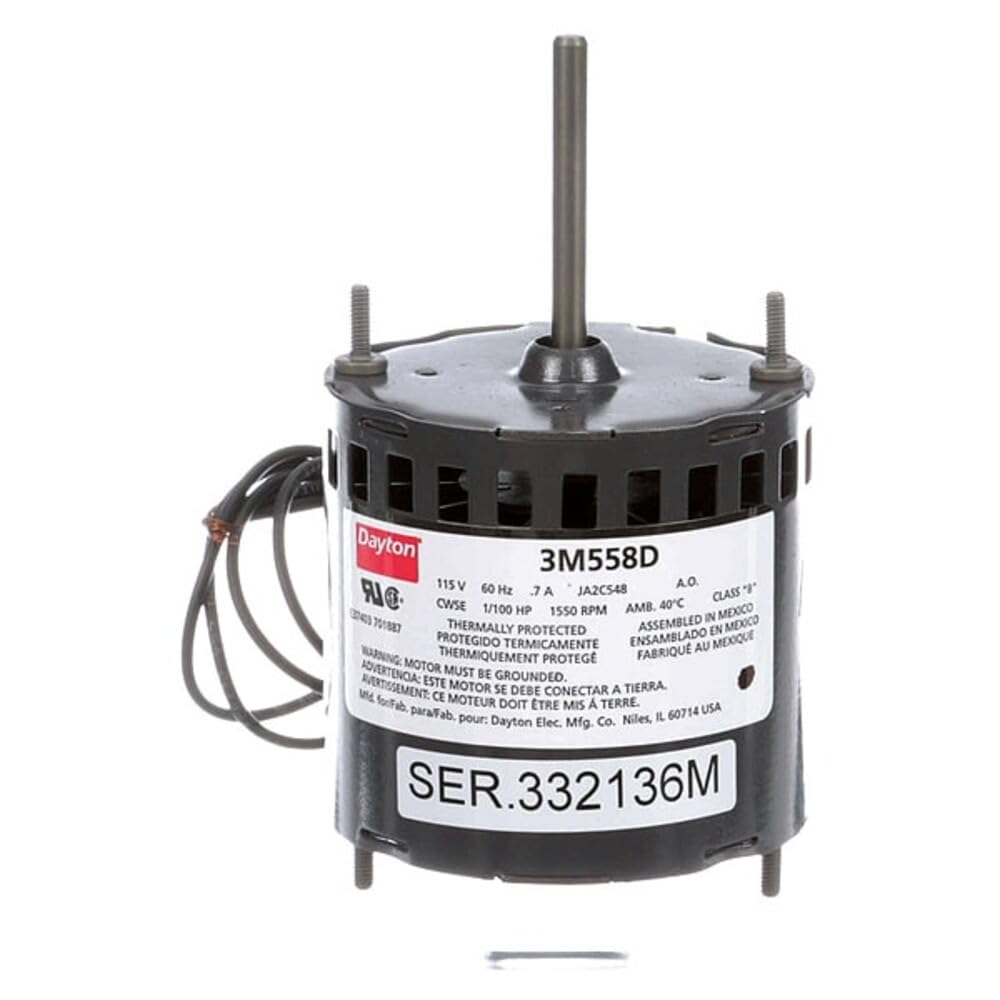

Dayton Electric Motor Model 3M558, Degrees_Fahrenheit, to Volts, Amps, (

Key features

• 1/100 hp, 1550 rpm, .70 amps, 115 volt 60Hz
• Shaft = 1/4" x 2-1/16"; rotation = cw
• 3.3 inch
• Continuous duty; class b insulation; open-air over motor
• 1 year manufacture warranty

Hvac motor, motor application HVAC/R, motor sub application direct door fan/blower, motor Type shaded pole, enclosure open air-over, duty continuous, HP 1/100, Nameplate RPM 1550, voltage 115, frame 3.3, service factor 1.0, full load Amps 0.7, Hz 60, rotation CW, insulation Class b, max. Ambient Temp. 40 Degrees C, number of speeds 1, mounting stud, bearings sleeve, thermal protection auto, body dia. 3.3", shaft dia. 1/4", shaft Length 2-1/16", Length less shaft 3-11/16", stud location 2/be, stud/base Mtg. Pattern 2-7/8", phase 1, RPM range 1501-1600, mounting pattern 1

Free shipping included. 30-day hassle-free returns.
