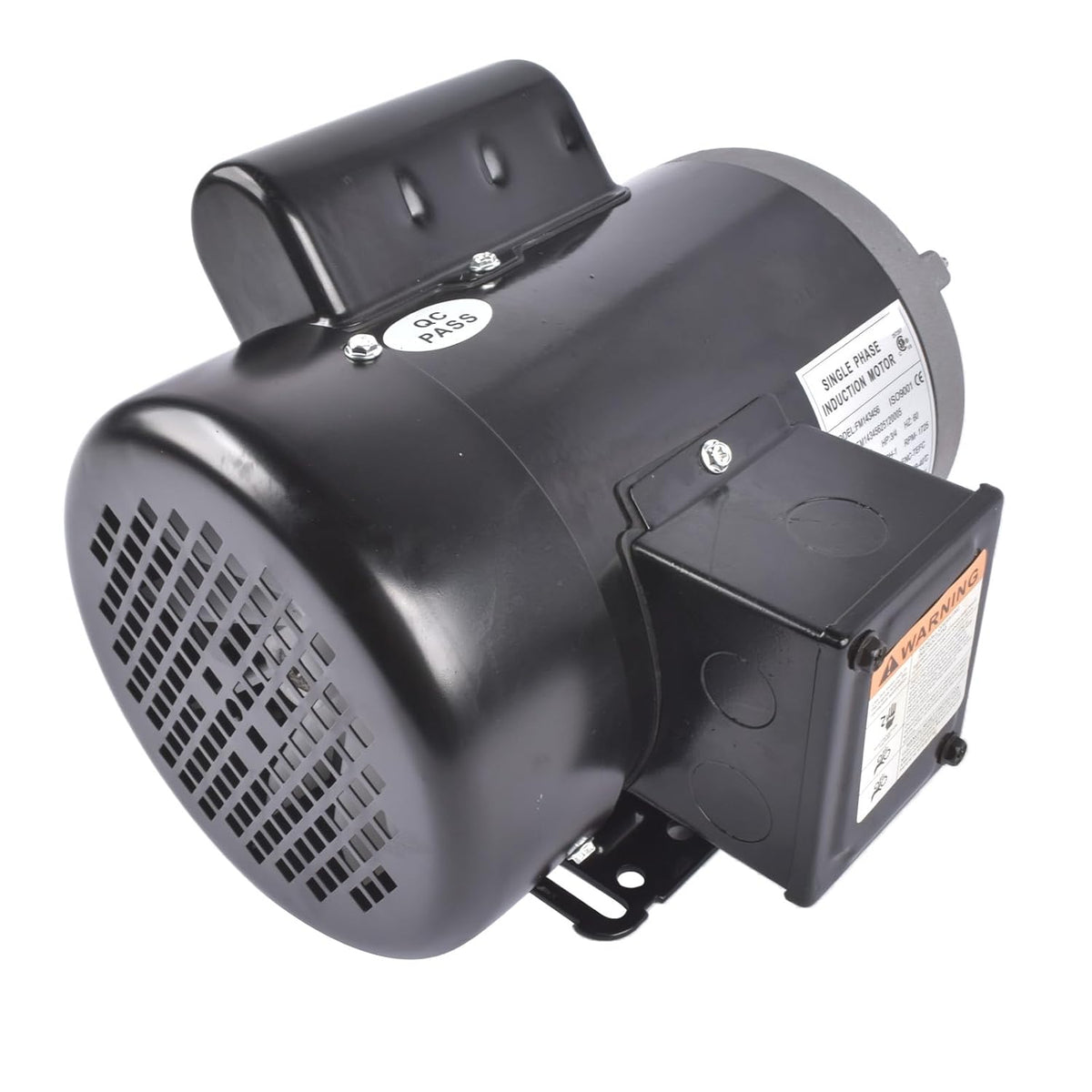

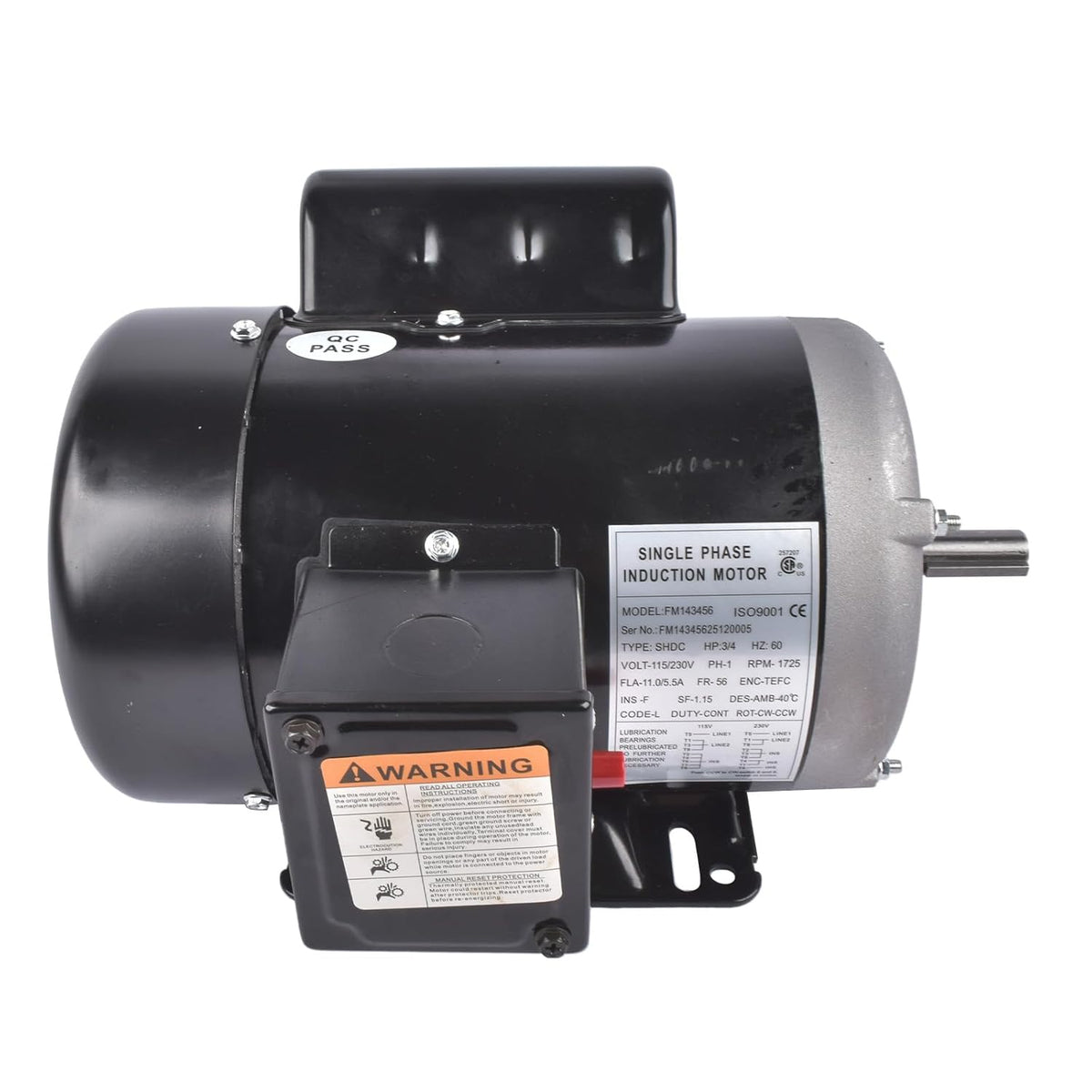

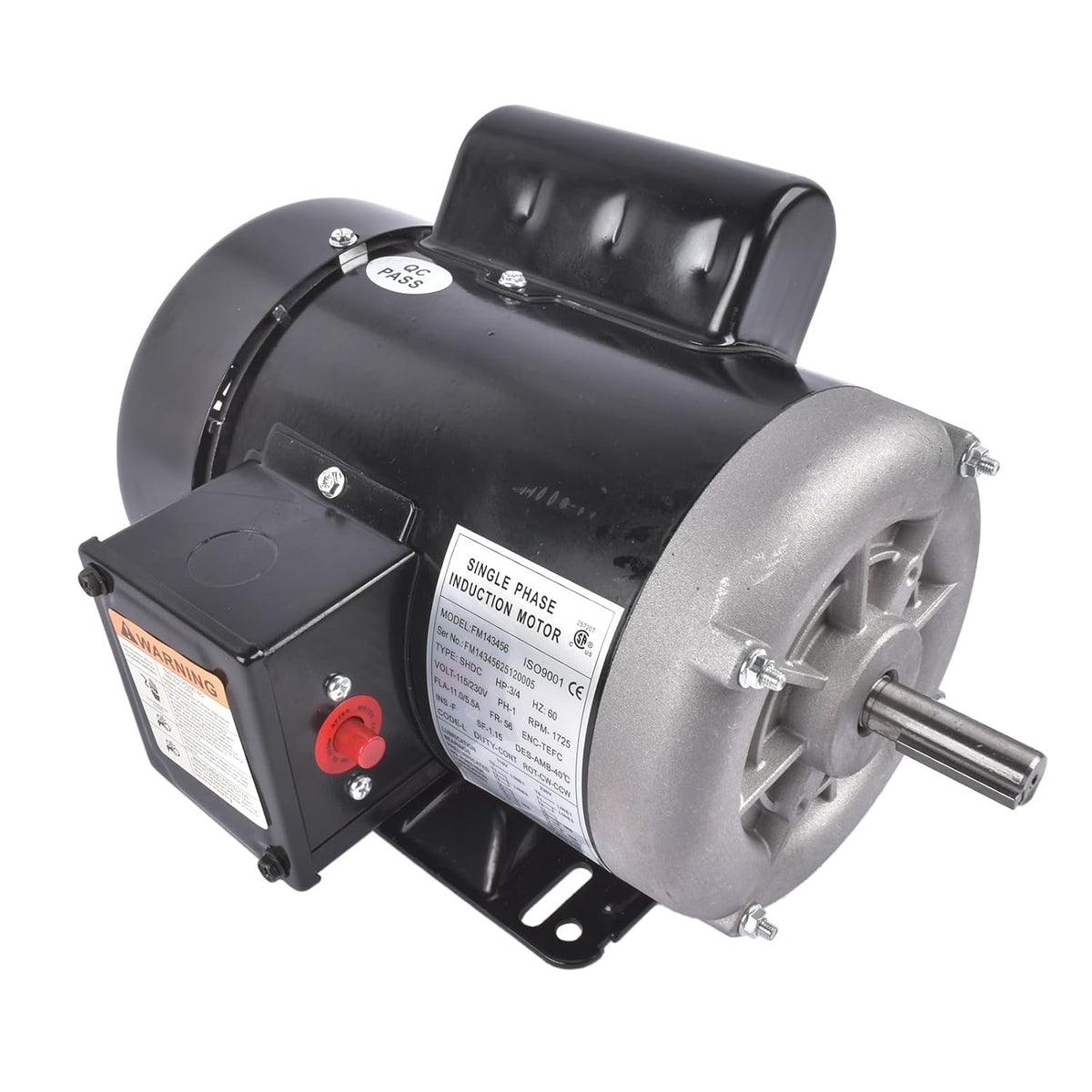

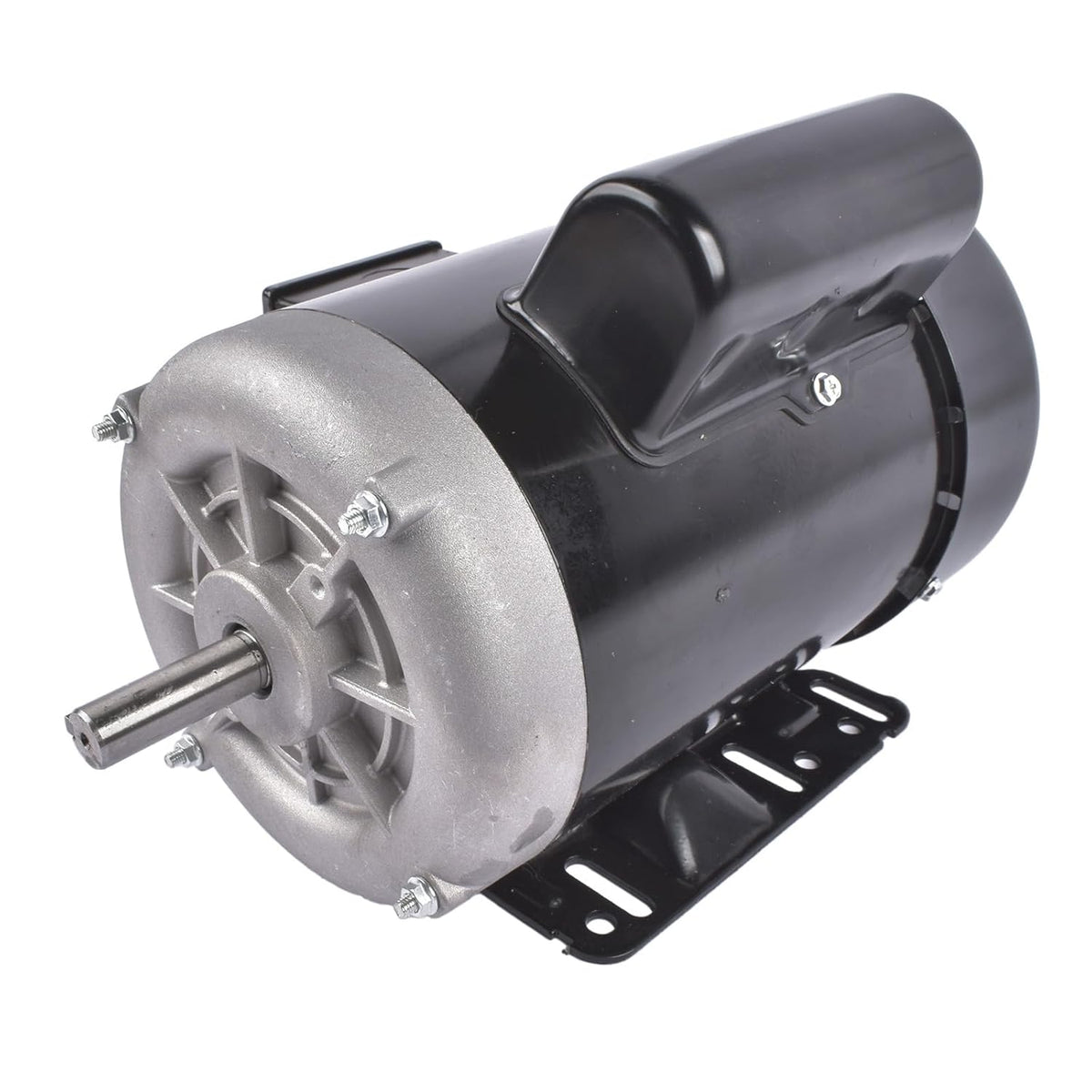

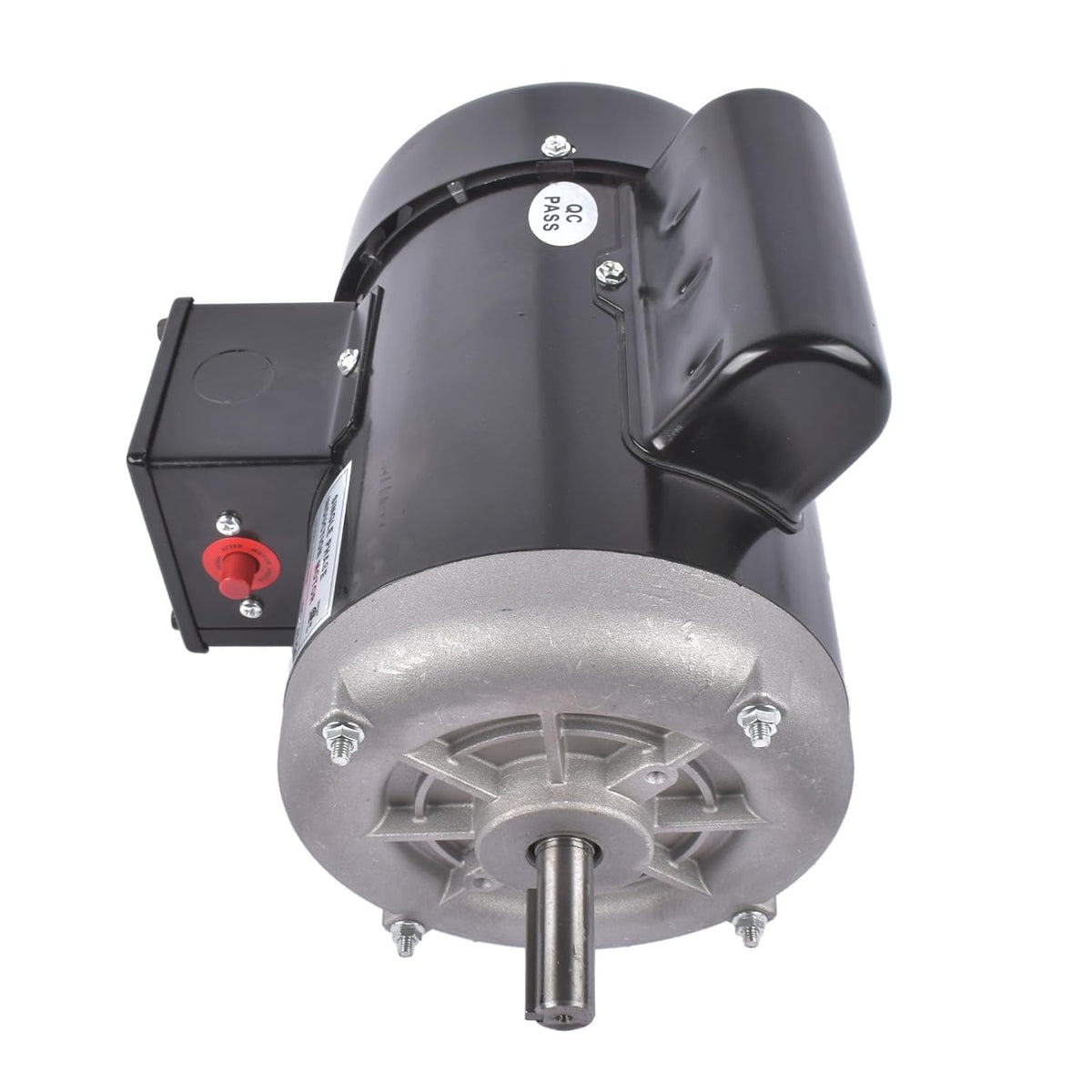

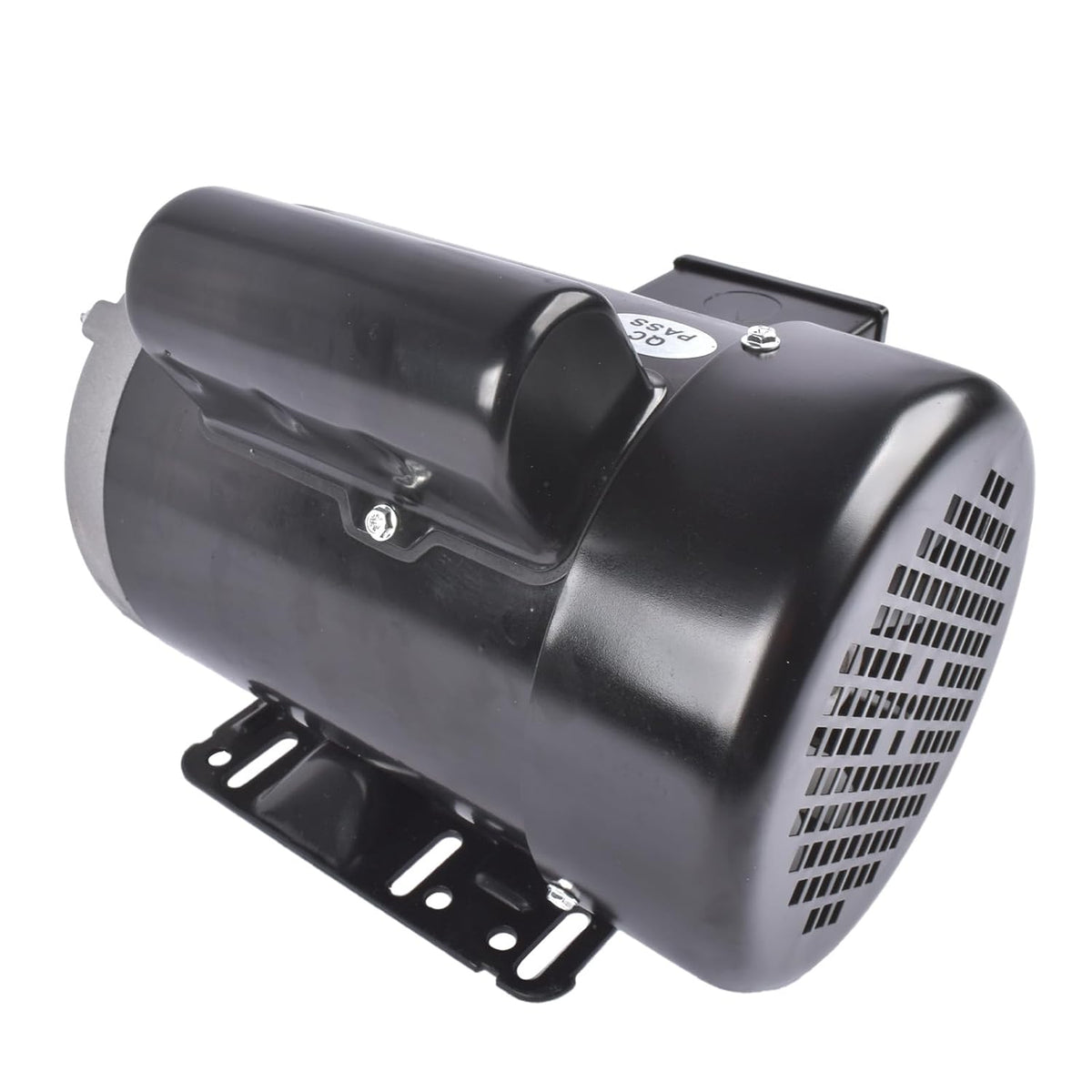

F103 Farm Duty High Torque Motor 3/4 HP 1800 RPM 115/208-230V

Key features

• High Torque Farm Duty MotorDesigned for demanding farm and agricultural applications requiring strong starting torque and reliable continuous operation.
• Motor Specifications3/4 horsepower single-phase motor with one-speed operation, rated at 1800 RPM for stable and consistent performance.
• Voltage & Current RatingOperates on 115V or 208–230V AC. Full load current: 11.0 Amp at 115V, 5.4–5.5 Amp at 208–230V.
• Capacitor Start DesignCapacitor start configuration provides enhanced starting torque, ideal for equipment with high startup load.
• Durable TEFC Construction56 frame motor with Totally Enclosed Fan Cooled (TEFC) enclosure, rigid base mounting, and ball bearings for long service life in dusty or farm environments.

SpecificationProduct Type: Farm Duty High Torque MotorModel: F103 / 56C17F5326Motor Type: Single Phase, Capacitor StartHorsepower: 3/4 HPSpeed: 1800 RPMNumber of Speeds: One-SpeedVoltage: 115V / 208–230V ACFull Load Current:11.0 Amp @ 115V5.4–5.5 Amp @ 208–230VFrequency: 60 HzFrame Size: 56 FrameEnclosure Type: Totally Enclosed Fan Cooled (TEFC)Mounting Type: Rigid Base MountBearing Type: Ball BearingApplication: Farm duty, agricultural equipment, high starting torque applications
