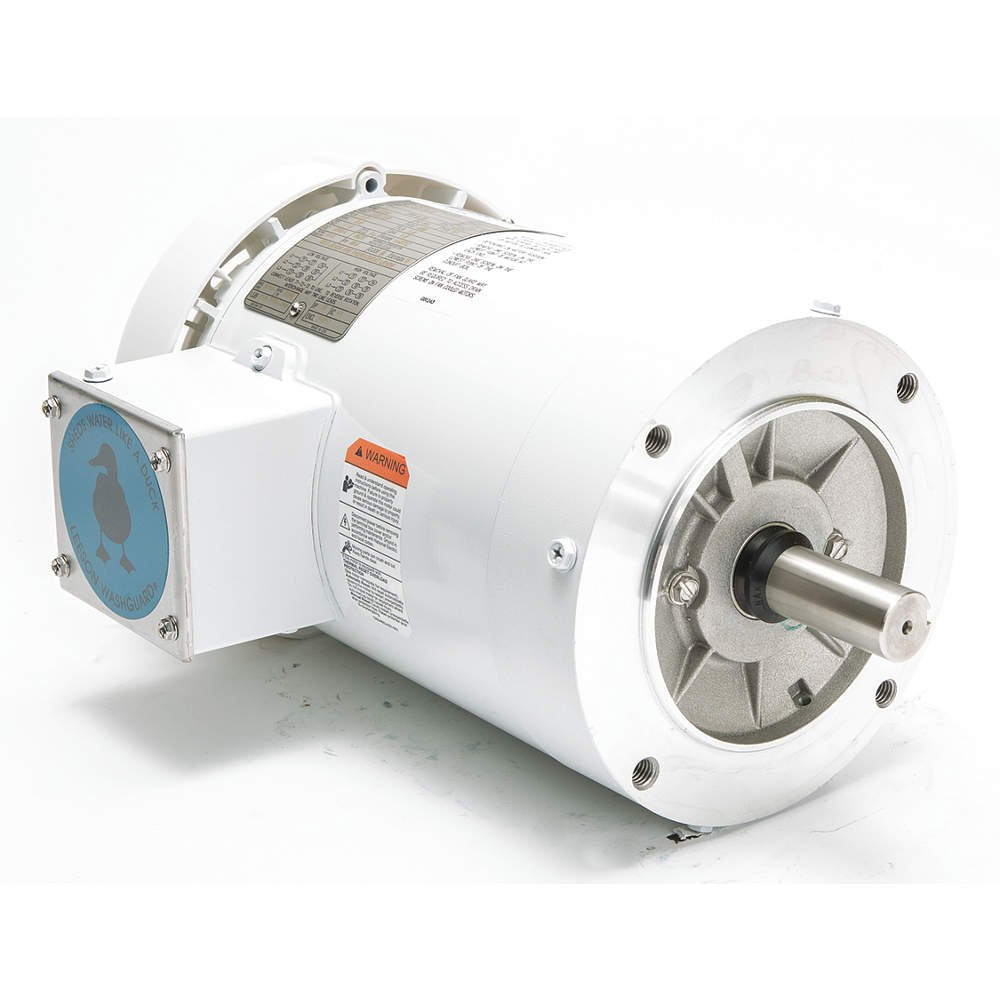

Leeson / Regal Beloit - 122179.00 - 1 HP Washdown Motor, 3-Phase, 1760 Nameplate RPM, 230/460 Voltage, Frame 143TC

Key features

• Price For: Each Motor Application: Washdown Item: Washdown Motor Voltage Compatibility: 460, 230/460, 220-230/460 Motor Shaft Rotation: CWSE Shaft Length: 2" Phase: 3 Motor Enclosure Design: Totally Enclosed Fan-Cooled Nominal Efficiency: 85.5% Hz: 60 Application: General Purpose Motor Design: 3-Phase Nameplate RPM: 1760 CC Number: CC005A Frame: 143TC
• Frame Material: Rolled steel Length Less Shaft: 10-15/16" Motor Mounting Type: Face HP: 1 Motor Bearings: Ball Ins. Class: F Max. Ambient Temp.: 40 Degrees C Shaft Dia.: 7/8" Full Load Amps: 3.2/1.6 Motor Frame Material: Rolled Steel Motor Thermal Protection: None Motor Service Factor: 1.15 Voltage: 230/460 RPM Range: 1701-1800 Country of Origin (subject to change): United States

'Washdown Motor, 3-Phase, 1 HP, 1760 Nameplate RPM, Voltage 230/460, Phase 3, 143TC Frame, Totally Enclosed Fan-Cooled, Full Load Amps 3.2/1.6, 60 Hz, Motor Thermal Protection None, F Ins. Class, Motor Service Factor 1.15, Ball Motor Bearings, Max. Ambient Temp. 40 Degrees C, CWSE Motor Shaft Rotation, Shaft Dia. 7/8 In., Shaft Length 2 In., Length Less Shaft 10-15/16 In., Motor Frame Material Rolled Steel, Nominal Efficiency 85.5 Percent, RPM Range 1701-1800'
