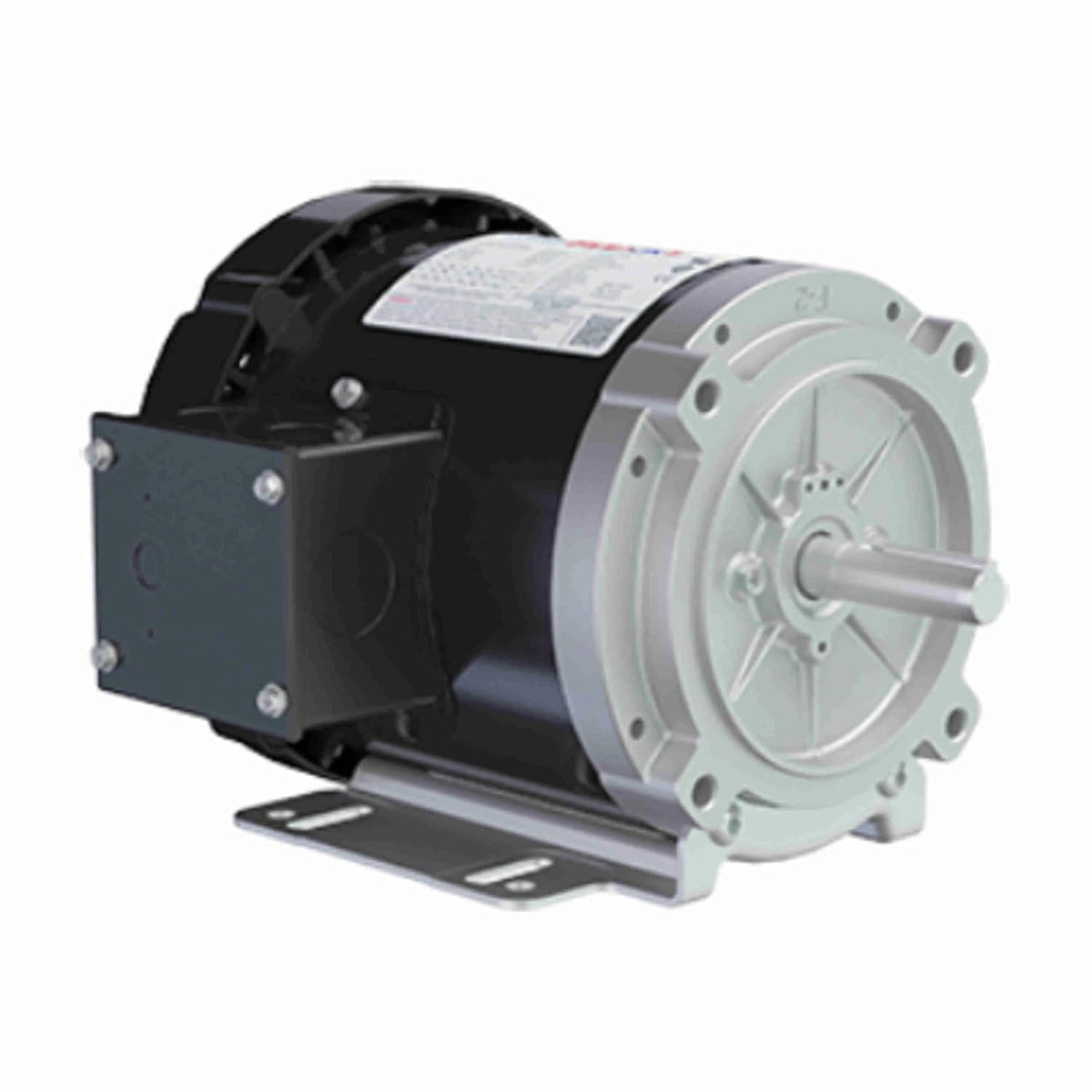

Marathon FLEX-IN-1 General Purpose Motor, 0.75 HP, 3 Ph, 60 Hz, 208-230/460 V, 3600 RPM, 56C Frame, TEFC - FX34BK002

Key features

• One FLEX-IN-1 motor replaces 18 general purpose motors
• The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
• Out-of-the-box motor with provisions for multiple kits*** - Adding SGR (shaft grounding ring) kit; Adding a brake kit; Adding a drip cover (ODP); Adding lint guard (TEFC).
• Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP
• Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option
• *** Kits sold separately. Light assembly required.
• General Specifications Nameplate Specifications Technical Specifications Speed Characteristics Load Characteristics

One FLEX-IN-1 motor replaces 18 general purpose motors The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3 Out-of-the-box motor with provisions for multiple kits*** - Adding SGR (shaft grounding ring) kit; Adding a brake kit; Adding a drip cover (ODP); Adding lint guard (TEFC). Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option *** Kits sold separately. Light assembly required. General Specifications Nameplate Specifications Technical Specifications Speed Characteristics Load Characteristics General Specifications UPC: 691720115305 Weight: 23.00 LB Packaged Length: 16.12 IN Packaged Width: 10.25 IN Packaged Height: 8.12 IN Country of Origin: Mexico Nameplate Specifications Output HP: 0.75 Hp Output KW: 0.56 kW Frequency: 60 Hz Voltage: 208-230/460 V Current: 3.0-3.2/1.6 A Speed: 3450 rpm Service Factor: 1.15 Phase: 3 Efficiency: 74 % Power Factor: 69.1 Duty: Continuous Insulation Class: F Design Code: B KVA Code: N Frame: 56C Enclosure: Totally Enclosed Fan Cooled Thermal Protection: No Protection Ambient Temperature: 40 °C
