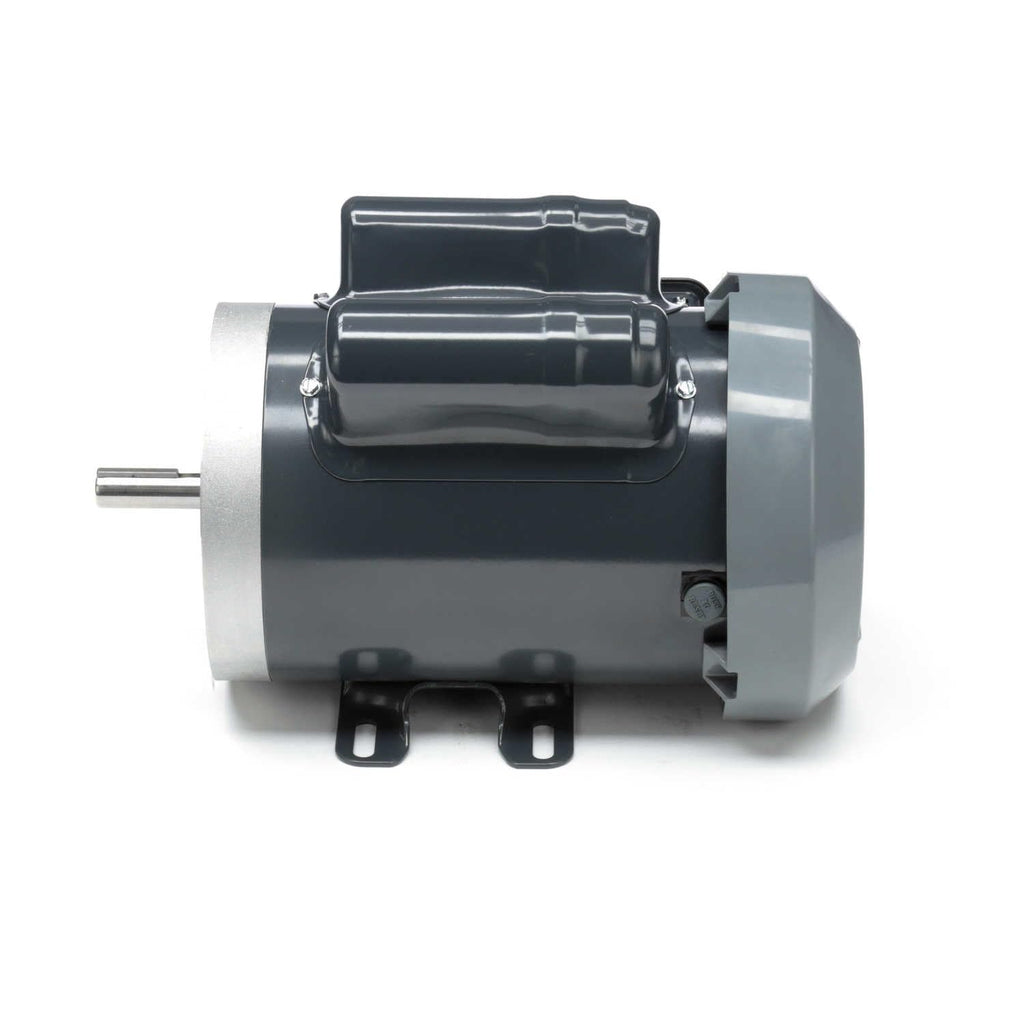

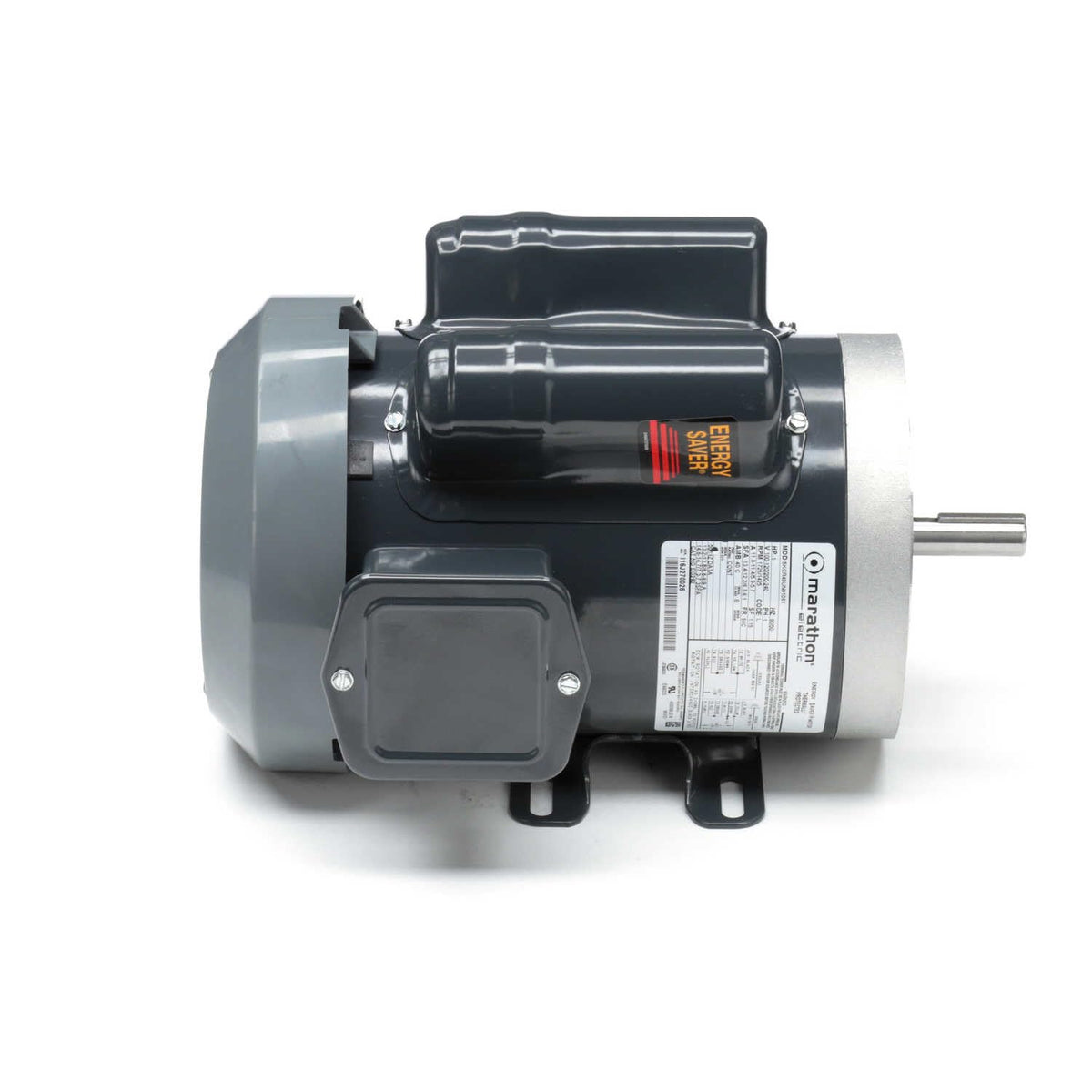

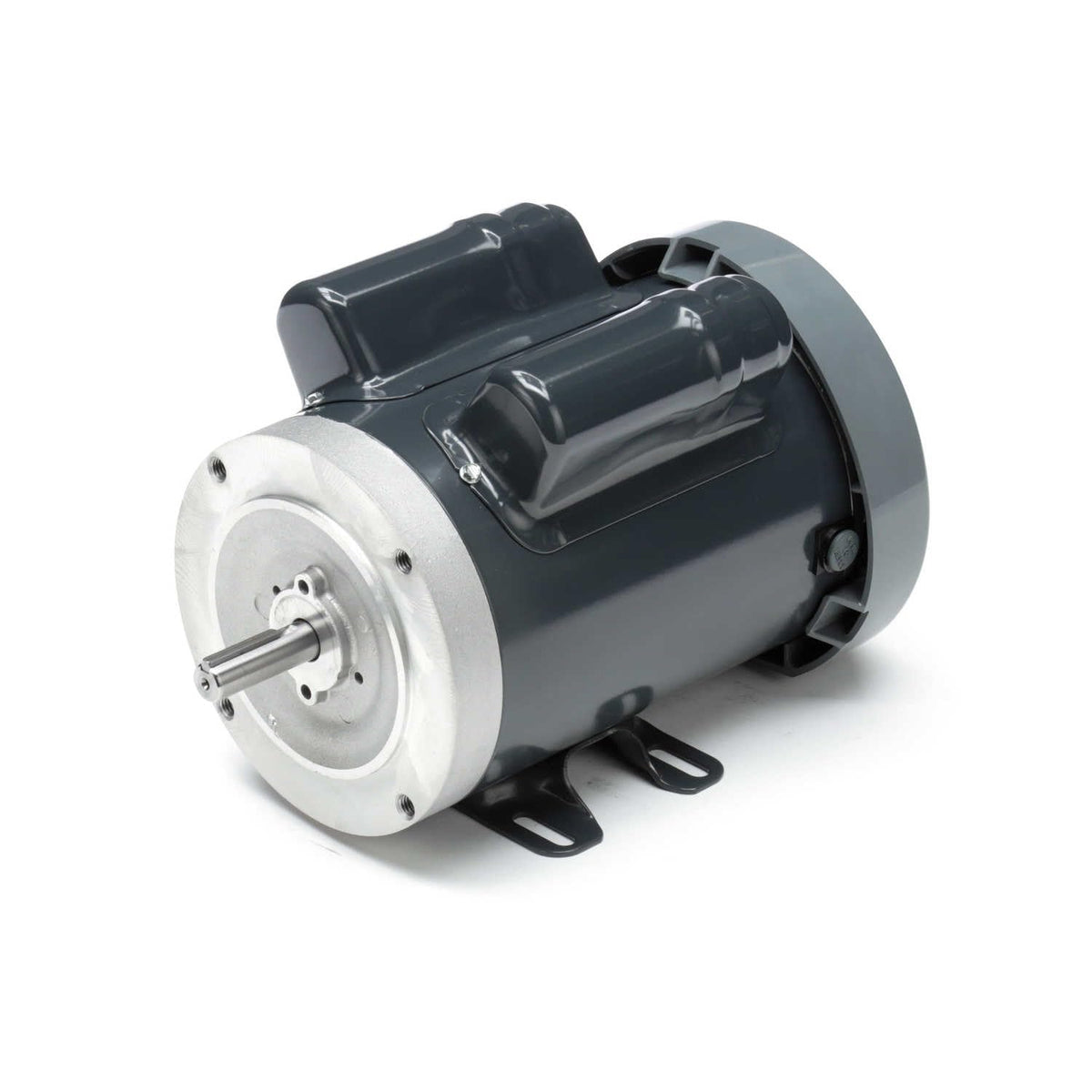

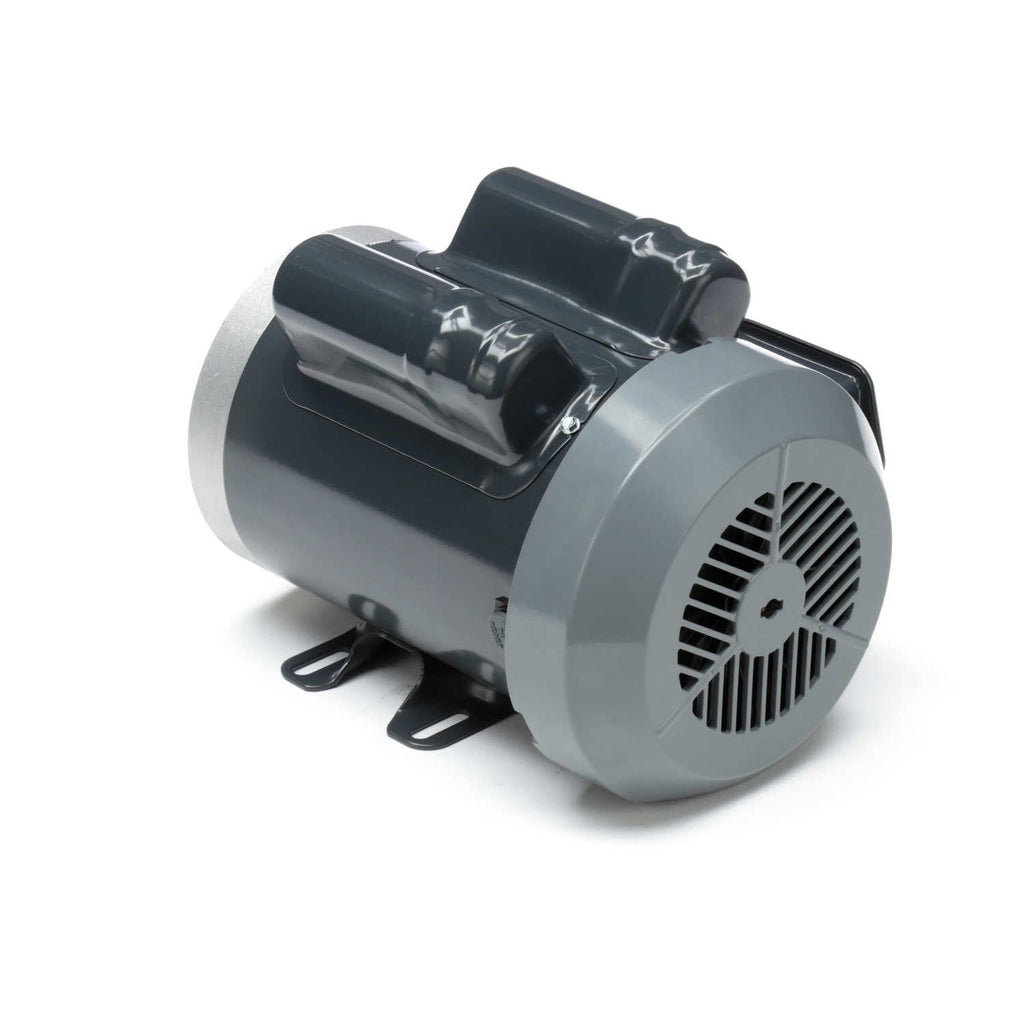

Marathon General Purpose Motor, 1 HP, 1 Ph, 60 Hz, 100-120/200-240 V, 1800 RPM, 56C Frame, TEFC - EG282

Key features

• UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
• Continuous duty cycle design allows maximum operation at the rated power. specifications
• Heavy-duty, rolled steel construction ensures motor durability.
• Permanently lubricated sealed bearings extend the lifetime of the motor.
• Capacitor start design optimizes motor torque and efficiency performance.
• General Specifications Nameplate Specifications Technical Specifications

UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications. Continuous duty cycle design allows maximum operation at the rated power. specifications Heavy-duty, rolled steel construction ensures motor durability. Permanently lubricated sealed bearings extend the lifetime of the motor. Capacitor start design optimizes motor torque and efficiency performance. General Specifications Nameplate Specifications Technical Specifications General Specifications UPC: 722856009364 Weight: 40.00 LB Packaged Length: 15.14 IN Packaged Width: 10.19 IN Packaged Height: 9.5 IN HTC: 8501.40.6040 Country of Origin: Mexico Nameplate Specifications Output HP: 1 Hp Output KW: 0.75 kW Frequency: 60 Hz Voltage: 100-120/200-240 V Current: 11.8-11.4,5.9-5.7 A Speed: 1725/1425 rpm Service Factor: 1.15 Phase: 1 Efficiency: 74 % Power Factor: 0 Duty: Continuous Insulation Class: B KVA Code: L Frame: 56C Enclosure: Totally Enclosed Fan Cooled Thermal Protection: Manual Ambient Temperature: 40 °C Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203 UL: Recognized CSA: Yes CE: N Number of Speeds: 1 Technical Specifications Electrical Type: Ca
