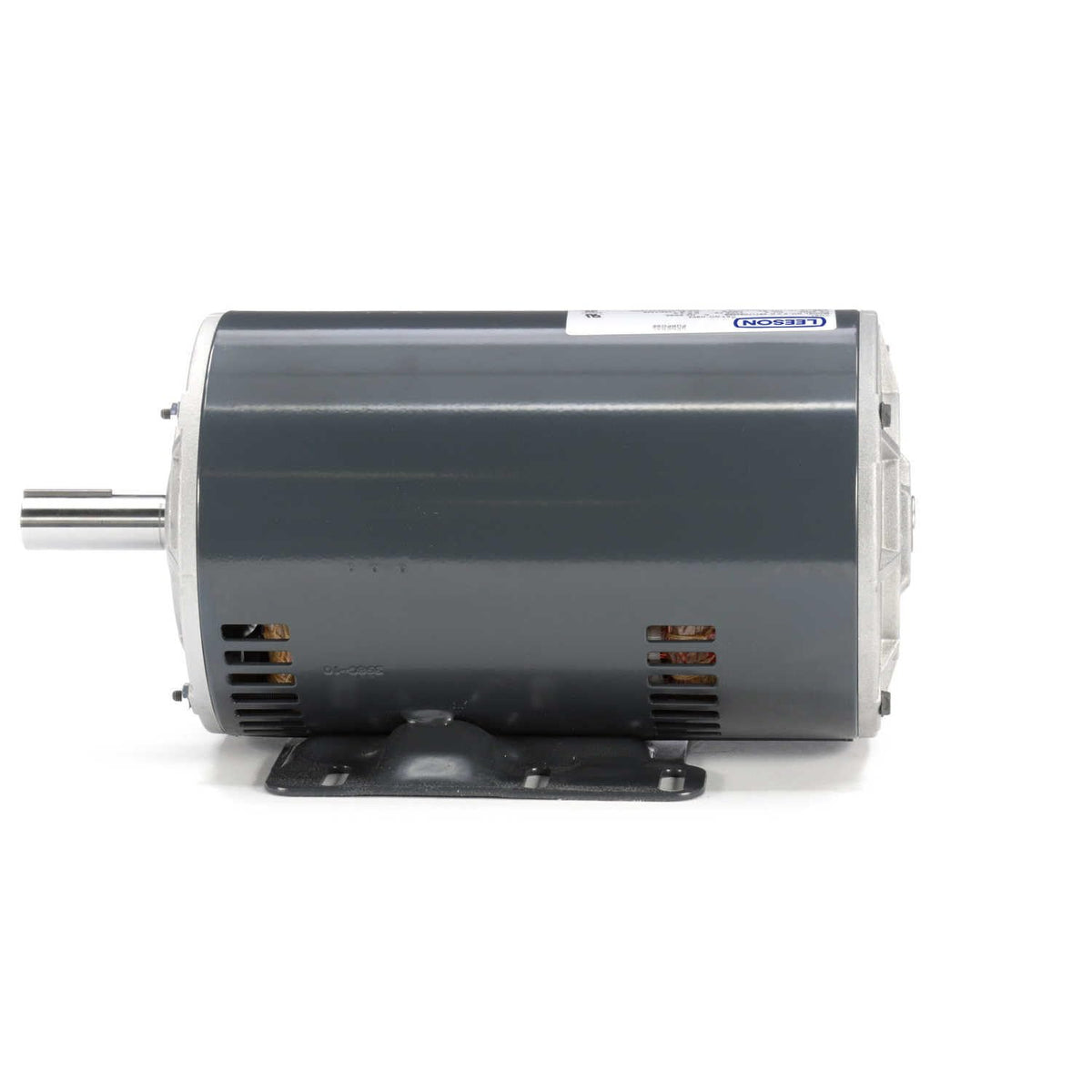

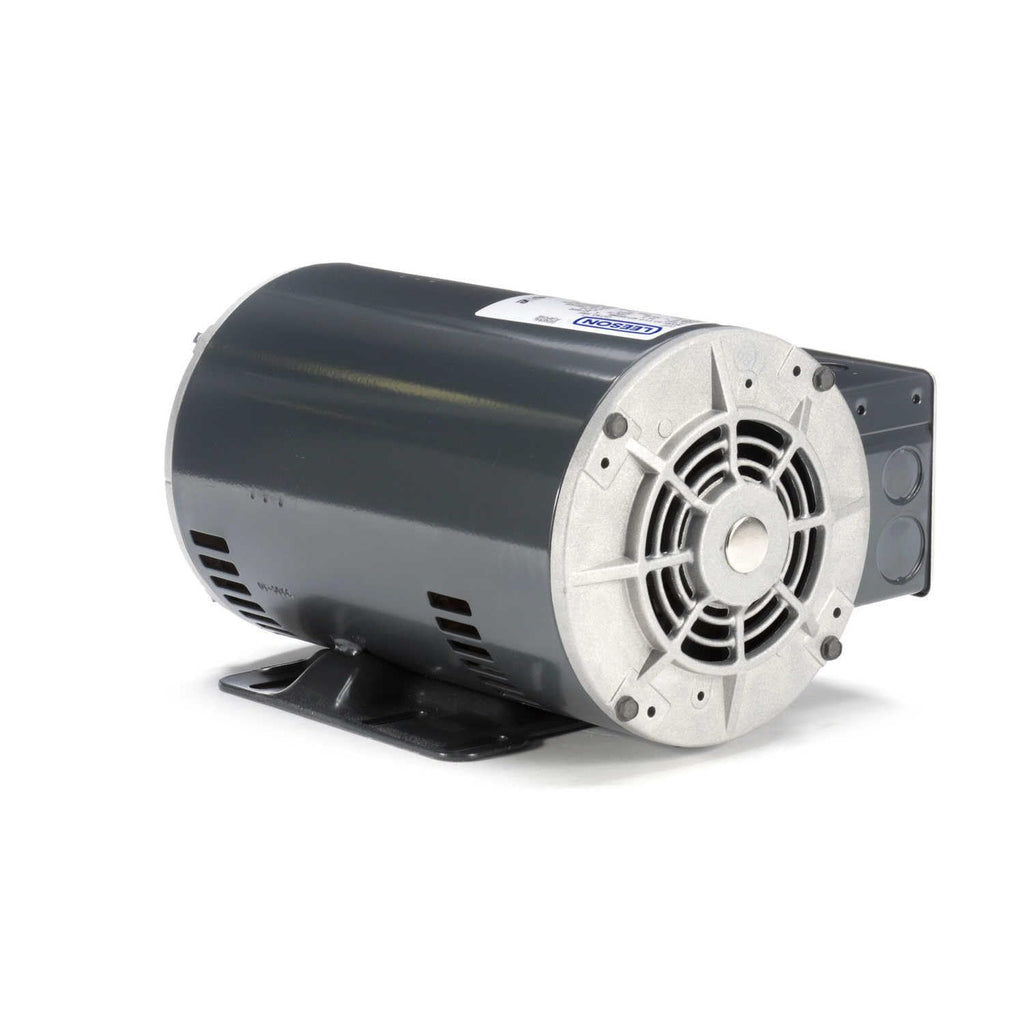

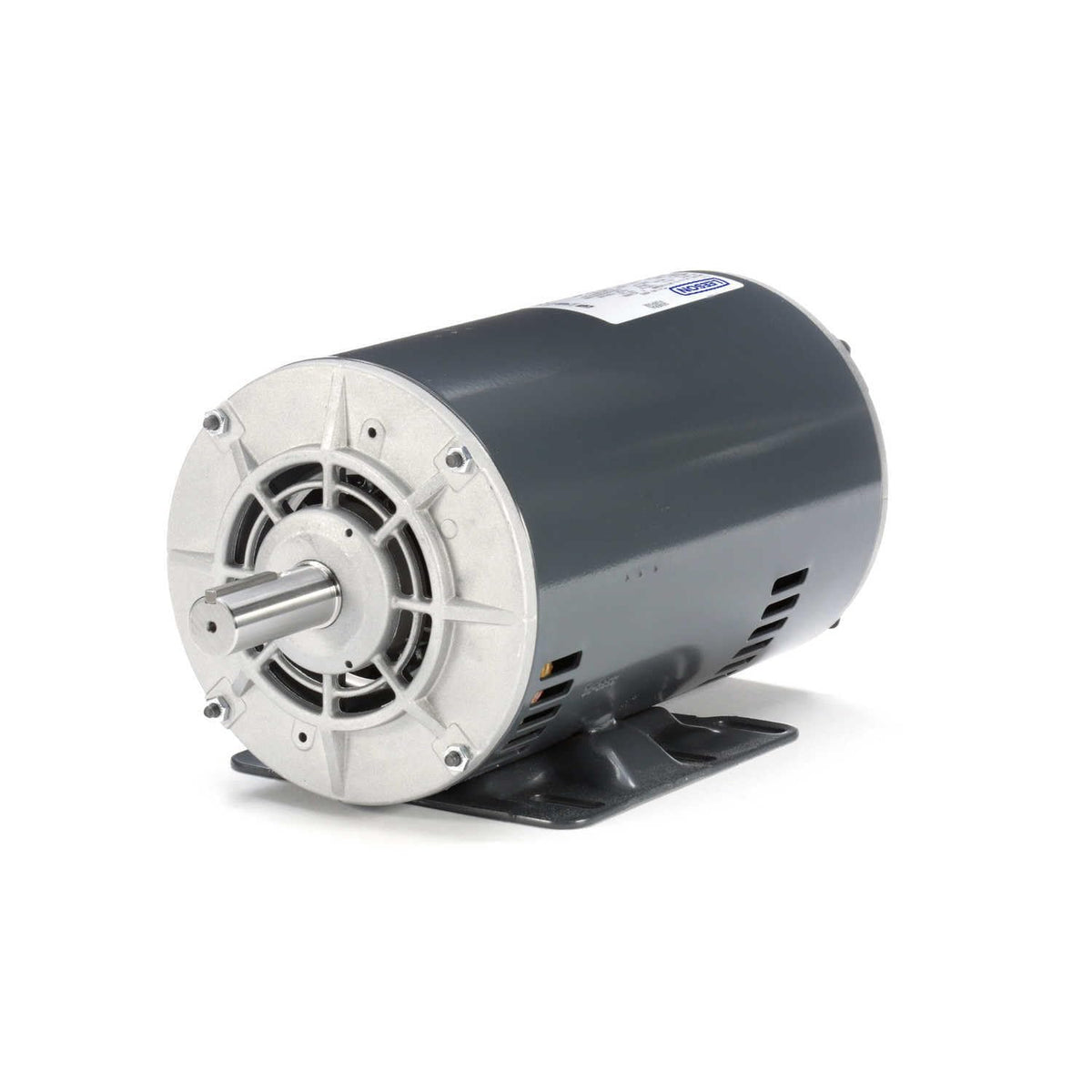

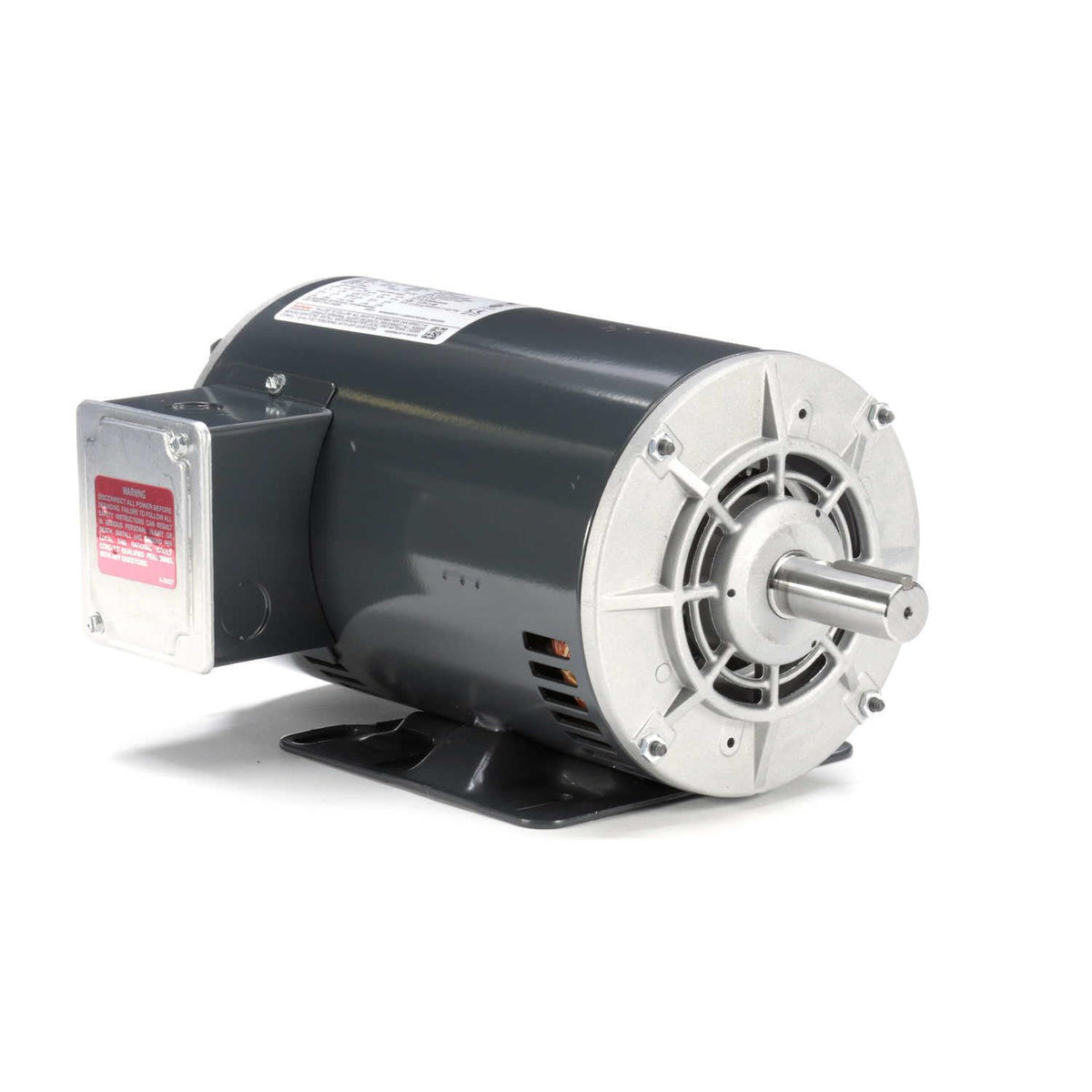

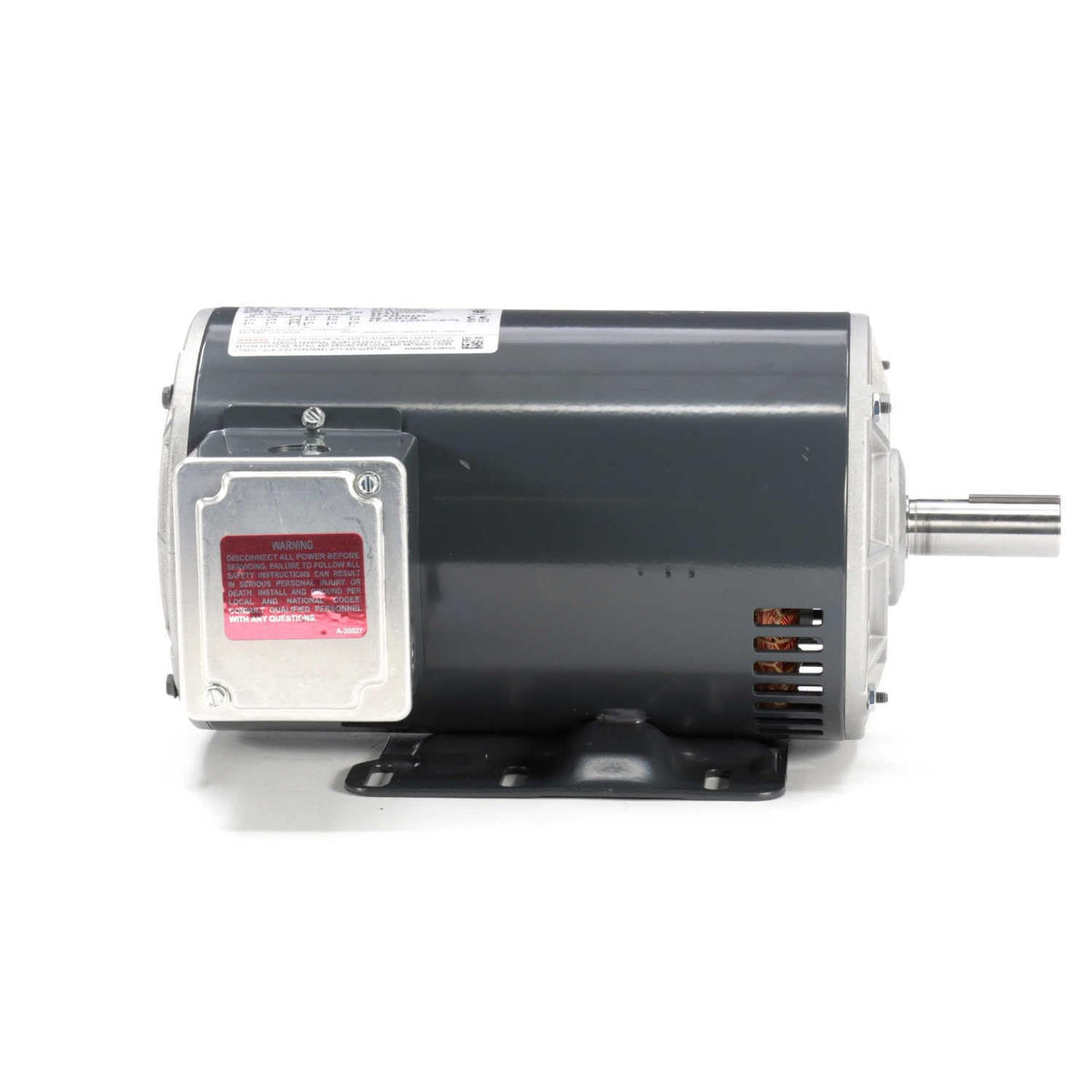

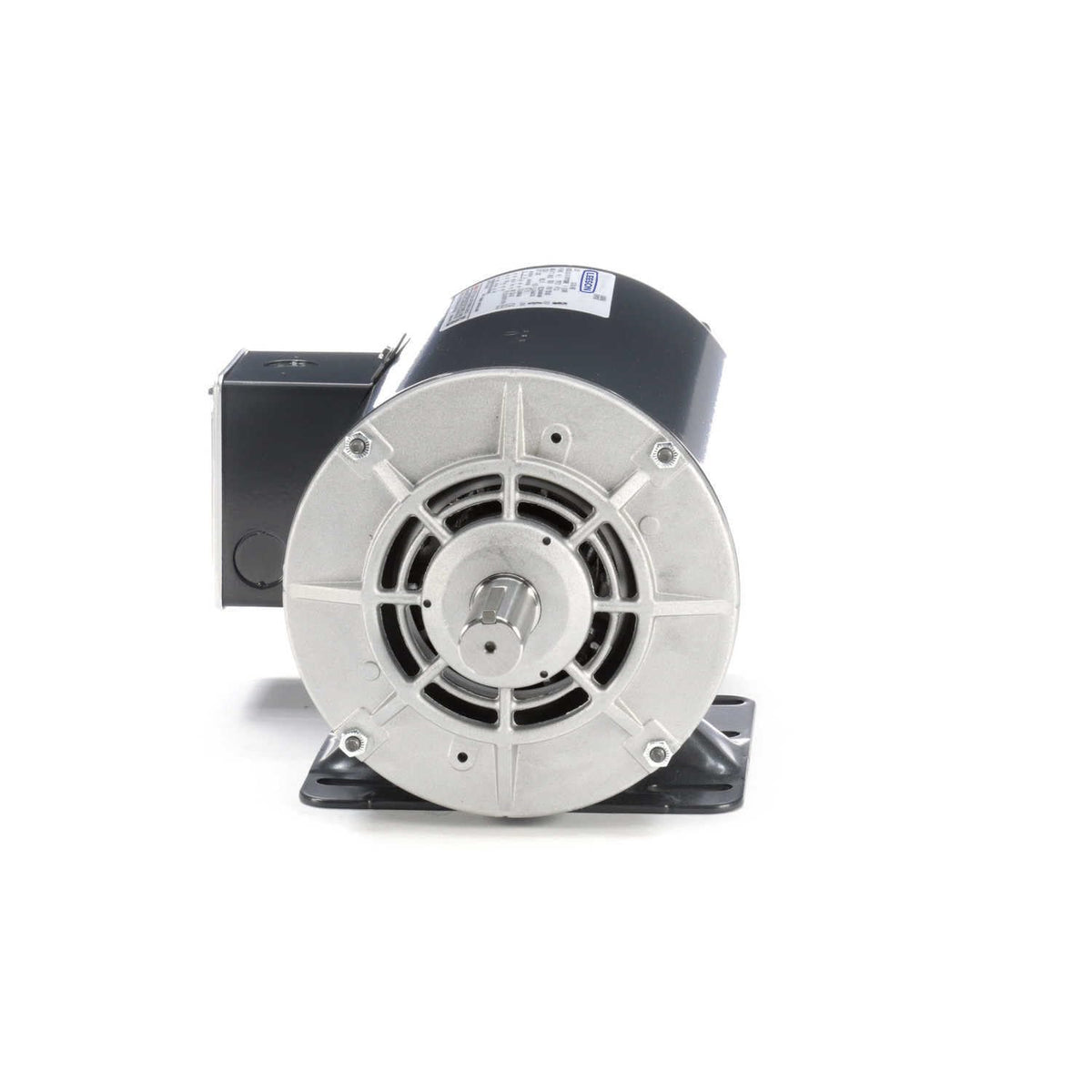

Marathon General Purpose Motor, 3 HP, 3 Ph, 60 Hz, 208-230/460 V, 1800 RPM, 56HZ Frame, DP - H803

Key features

• UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
• Premium efficiency promotes improved reliability.
• Heavy-duty, rolled steel construction ensures motor durability.
• Permanently lubricated sealed bearings extend the lifetime of the motor.
• General Specifications Nameplate Specifications Technical Specifications Speed Characteristics Load Characteristics

UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications. Premium efficiency promotes improved reliability. Heavy-duty, rolled steel construction ensures motor durability. Permanently lubricated sealed bearings extend the lifetime of the motor. General Specifications Nameplate Specifications Technical Specifications Speed Characteristics Load Characteristics General Specifications UPC: 722856011114 Weight: 48.00 LB Packaged Length: 16.38 IN Packaged Width: 10.5 IN Packaged Height: 8.12 IN HTC: 8501.52.4000 Country of Origin: Mexico Nameplate Specifications Output HP: 3 Hp Output KW: 2.2 kW Frequency: 60 Hz Voltage: 208-230/460 V Current: 9.2-8.6/4.3 A Speed: 1725 rpm Service Factor: 1.15 Phase: 3 Efficiency: 84 % Power Factor: 81 Duty: Continuous Insulation Class: B Design Code: B KVA Code: K Frame: 56HZ Enclosure: Drip Proof Thermal Protection: No Protection Ambient Temperature: 40 °C Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203 UL: Recognized CSA: Y CE: Y IP Code: 22 Number of Speeds: 1 Technical Specifications Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line Poles: 4 R
