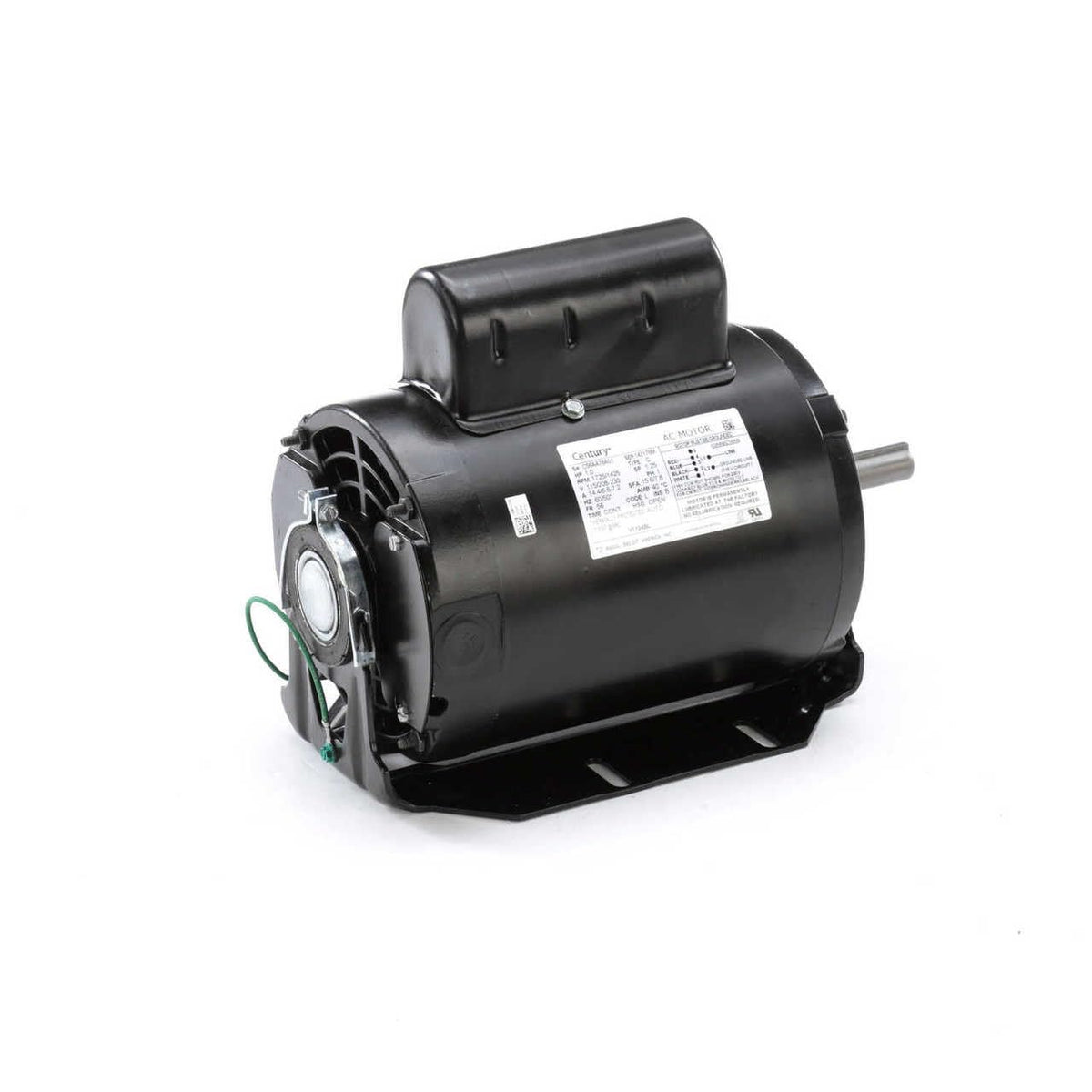

PEMS 1 HP HVAC Motor 56 Frame 1725 RPM 115/230V OAO for Century V1104BL

Key features

• DIRECT REPLACEMENT: Replacement for Century V1104BL; rated 1 horsepower, 1725 RPM, 115/230V, 56 frame. Interchange confirmed against our own catalogue record
• CONFIRM AGAINST YOUR PLATE: 1 horsepower, 1725 RPM, 115/230V, 56 frame, 6.5 inch shell, 1 speed. These are the values the interchange is built on, so verify each before ordering
• WILL NOT FIT: any frame other than 56; supplies outside 115/230; speeds other than 1725 RPM; a difference on any single published value above is a different part
• WHAT YOU GET: Motor only, open air over. Brackets, bands, mounting hardware and wiring harnesses are not part of this item; supplied as a bare motor; 115/230 nameplate voltage
• SUPPLIED BY A MOTOR HOUSE: Cross-referenced before it ships; 24-month replacement coverage against defects in materials and workmanship; capacitor start design

WHAT THIS MOTOR IS This HVAC motor is rated 1 horsepower, 1725 RPM, 115/230 volts, 1 phase, 60 Hz. Construction is a 56 frame, open air over, ball bearings, a rolled steel shell, 6.5 inches across the shell. The motor is reversible. It is supplied as a bare motor. WHAT IT REPLACES It is specified as a replacement for Century V1104BL. Selection on this class of motor is decided by the published rating rather than by physical resemblance, so every electrical and mechanical value above is matched to the part it replaces. Brand names and part numbers are used only to identify the equipment this motor is designed to fit. HOW TO CONFIRM IT FITS Read the data plate on the motor you are removing, then confirm the horsepower reads 1, confirm the speed reads 1725 RPM, confirm the voltage reads 115/230, confirm the frame reads 56, measure the shell and confirm it is 6.5 inches across, confirm the control expects 1 speed operation. WHEN THIS IS THE WRONG MOTOR This is the wrong motor if the frame is not 56, or if the supply sits outside 115/230, or if the duty calls for a speed other than 1725 RPM, or if the supply is not 1 phase. A motor that differs on any one of those values will not carry

Free shipping included. 30-day hassle-free returns.
