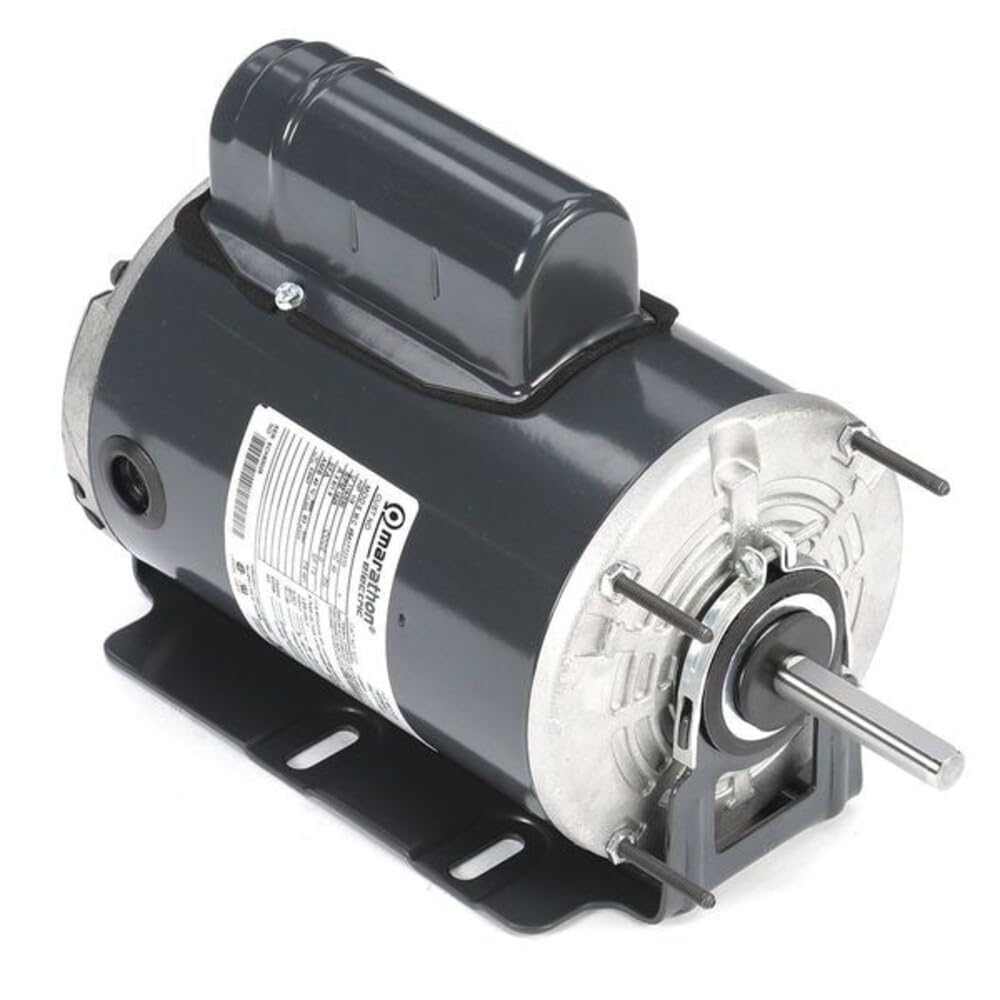

Permanent Split Capacitor General Purpose Farm Duty Motor, 1/3 HP, 48Y Frame, 115/230V AC Voltage - 1 Each

Key features

• Double-shielded bearings extend the service life of the motor.
• EXXON Polyrex EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C).
• Shaft flingers protect bearings from damage caused by dirt and rain.
• Condensation drains allow the motor to expel and drain built-up moisture.
• General Specifications Nameplate Specifications Technical Specifications Speed Characteristics Load Characteristics

Double-shielded bearings extend the service life of the motor. EXXON Polyrex EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C). Shaft flingers protect bearings from damage caused by dirt and rain. Condensation drains allow the motor to expel and drain built-up moisture. General Specifications Nameplate Specifications Technical Specifications Speed Characteristics Load Characteristics General Specifications UPC: 722856028068 Weight: 23.00 LB Packaged Length: 13.75 IN Packaged Width: 7.88 IN Packaged Height: 8.75 IN HTC: 8501.40.4040 Country of Origin: Mexico Nameplate Specifications Output HP: 0.33 Hp Output KW: 0.25 kW Frequency: 60 Hz Voltage: 115/230 V Current: 3.8/1.9 A Speed: 1625 rpm Service Factor: 1 Phase: 1 Efficiency: 66 % Power Factor: 96 Duty: Continuous Insulation Class: B Design Code: NO DESIGN CODE KVA Code: D Frame: 48Y Enclosure: Totally Enclosed Air Over Thermal Protection: Automatic Ambient Temperature: 40 °C Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203 UL: Recognized CSA: Y CE: N IP Code: 43 Number of Speeds: 1 Technical Specifications Electrical Type: Permanent Split Capacitor Starting Method: Across The Line Pole
