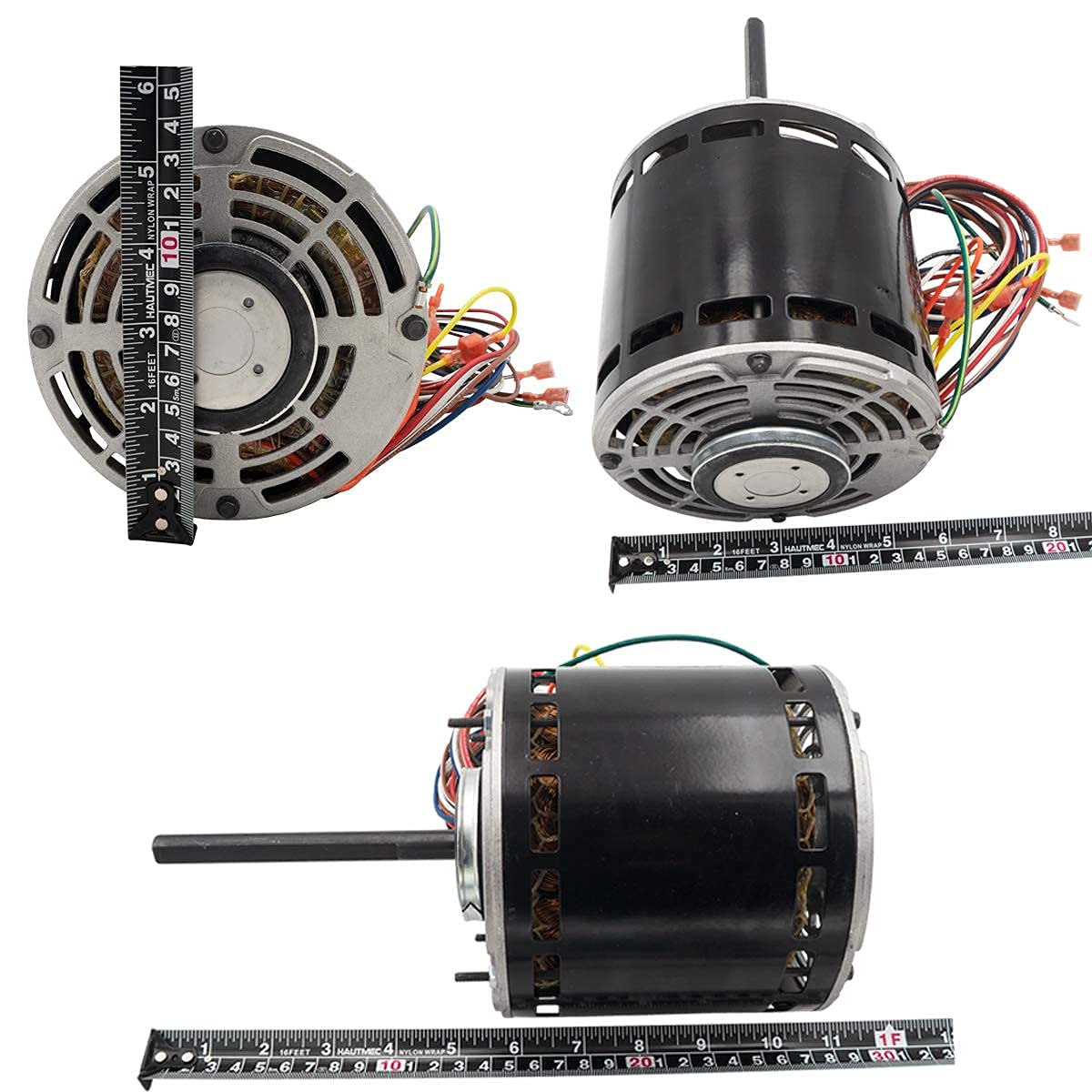

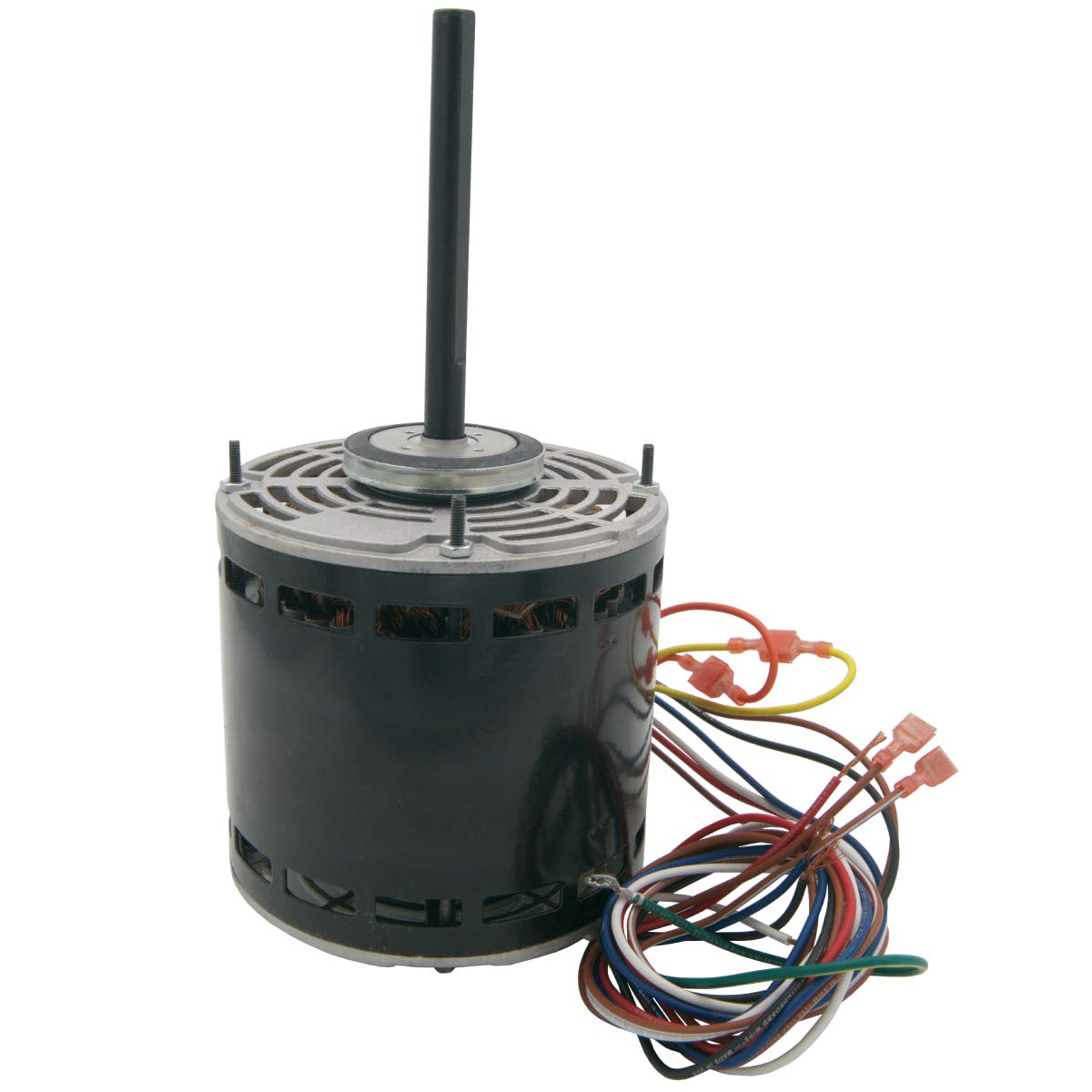

Supplying Demand W51-12BJA3-02 HVAC Blower Fan Motor 1/2 HP 1 Phase 3 Speed 208/230V 1075 RPM Must Match Specs of Current Motor to Function Correctly

Key features

• Make sure to match up your H/P needed otherwise installing a lower H/P motor will cause it to overheat and not work properly.
• HVAC replacement motors manufactured under strict quality standards at one of the world's largest and most modern motor production facilities. Every motor undergoes a variety of stringent tests before it leaves the assembly line.

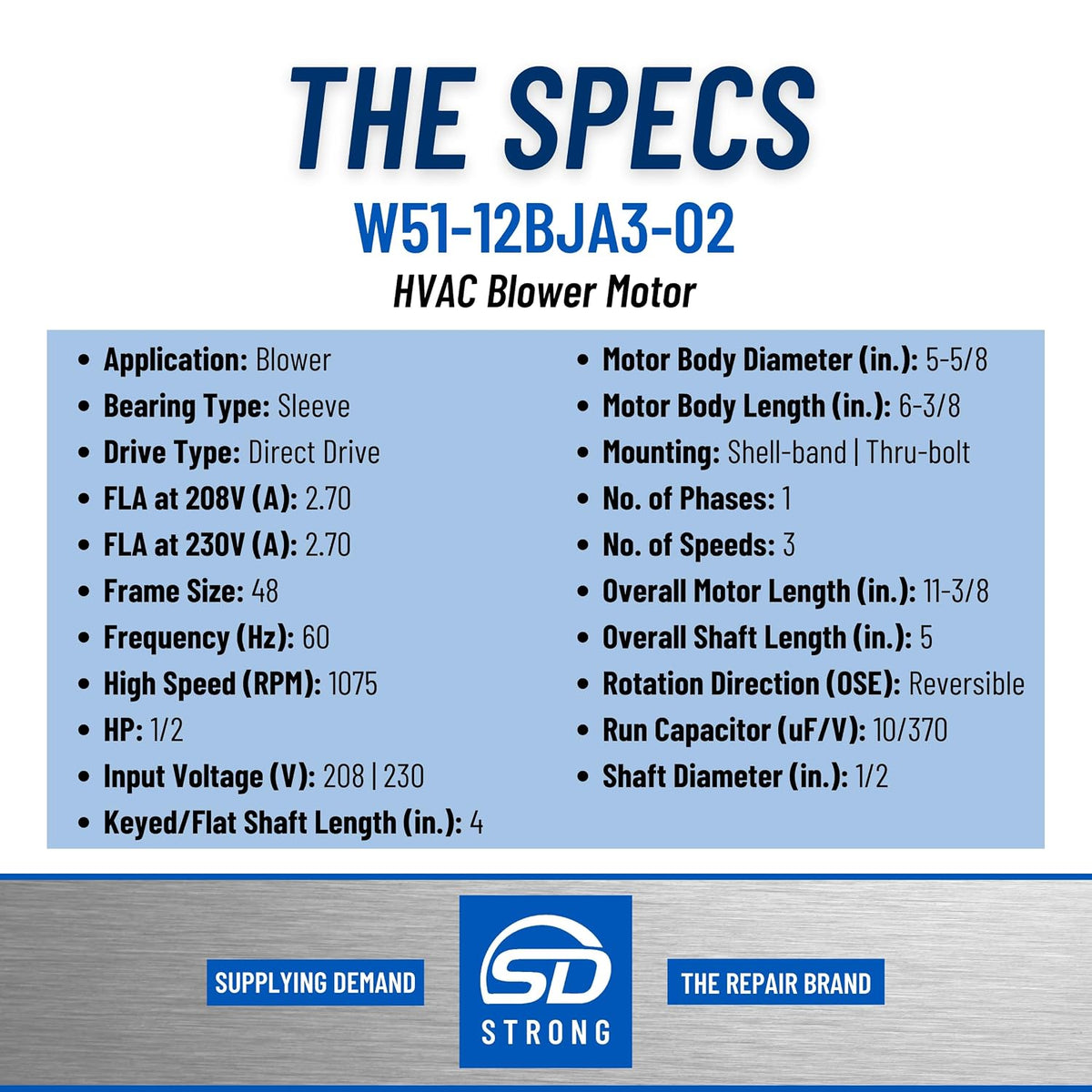

• Application: Blower | Bearing type: Sleeve | Drive type: Direct drive | FLA at 208V (A): 2.70 | FLA at 230V (A): 2.70 | Frame size: 48 | Frequency (Hz): 60 | High speed (RPM): 1075 | HP: 1/2 | Input voltage (V): 208/230 | Keyed/Flat shaft length (inch): 4 | Motor body diameter (inch): 5-5/8 | Motor body length (inch): 6-3/8 | Mounting: Shell-band, thru-bolt | Number of phases: 1 | Number of speeds: 3 | Overall motor length (inch): 11-3/8 | Overall shaft length (inch): 5 | Rotation direction (OSE): Reversible | Shaft diameter (inch): 1/2
• Heating, ventilation, air conditioning or refrigeration parts and accessories should only be installed by qualified technicians.
• Supplying Demand replacement parts are compatible with Major Brands, but you should always verify fitment with your specific application.

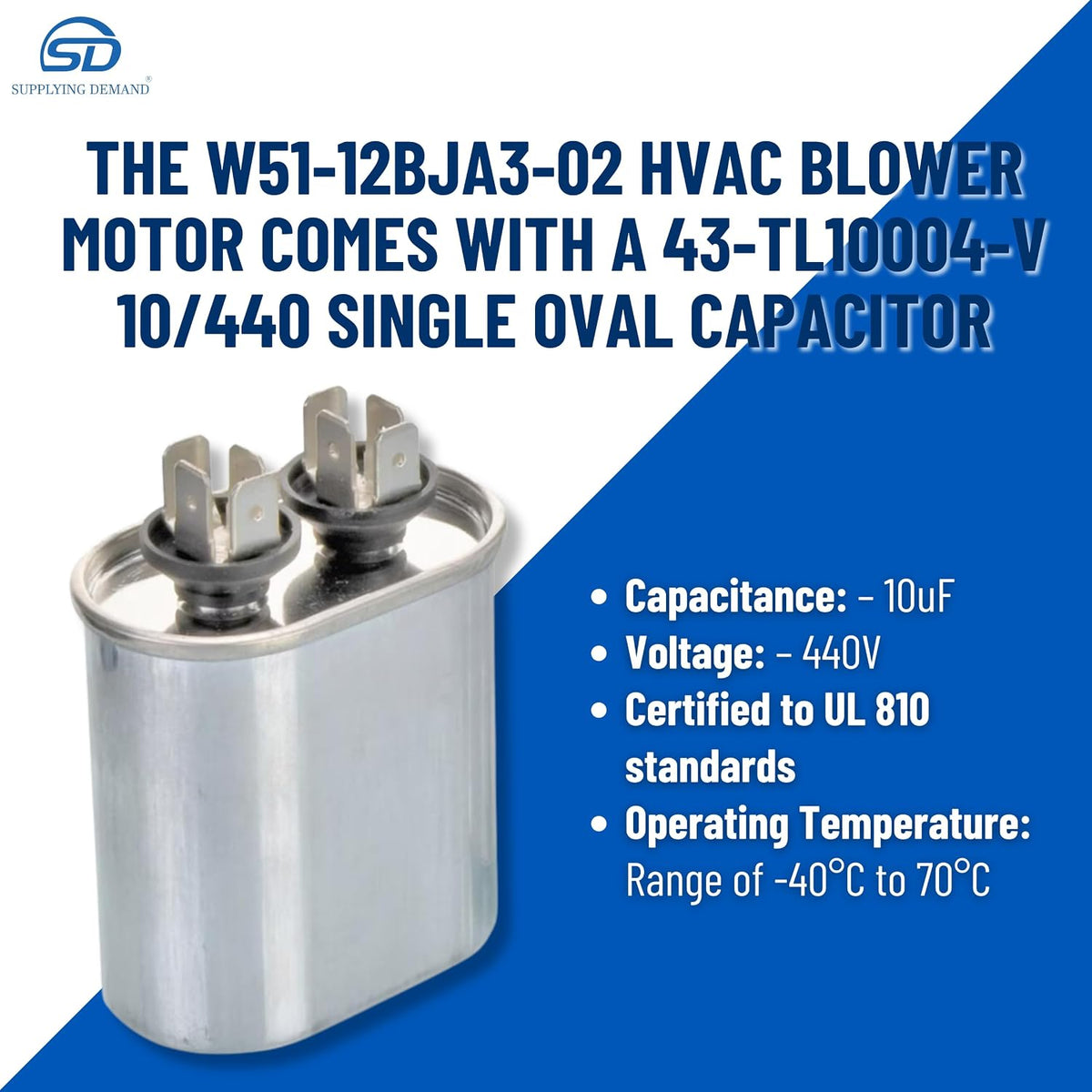

• Motor comes with a single run capacitor | It is recommended to replace the capacitor when installing the new motor

Free shipping included. 30-day hassle-free returns.
